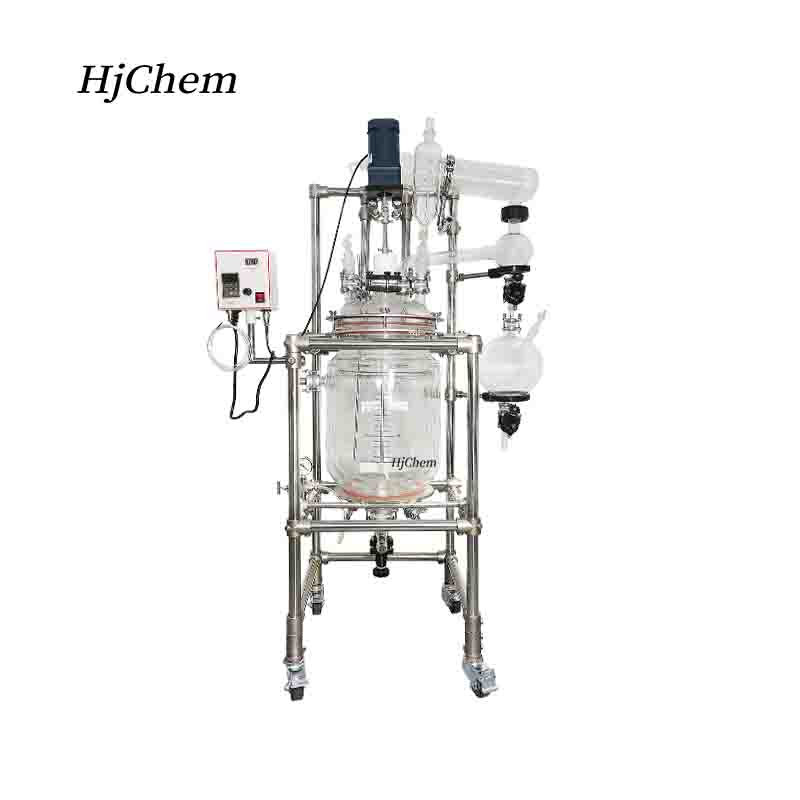

The Triple Layer Glass Reactor combine innovative vacuum jacketed design to ensure excellent thermal insulation and resistance to thermal shock.

Basic Technical Specifications:

1. Volume: 20liter, other volume available, 100ml, 250ml, 500ml, 1L, 2L, 3L, 10L, 20L, 30L, 50L, 60L, 80L, 100L, 150L, 200L

2. Vessel: triple wall, single wall, double wall available

3. Working pressure: Full vacuum to 0.05Mpa

4. Working temperature: -80°C ~ +250°C

5. Nozzles on the cover: stirrer, liquid feeding, solid material feeding, dosing addition, temperature sensor, reflux&distillation, also support customization.

6. Support equipment: include precision temperature control units, high-performance vacuum pumps, agitation sytems and safety accessories.

Key Features of Triple Layer Glass Reactors

1.Triple Layer Glass Design:

The reactor feature three layers of high-quality borosilicate glass, ensuring excellent thermal insulation and resistance to thermal shock.

The vacuum jacketed design minimizes heat loss, enhancing energy efficiency and maintaining consistent temperatures during reactions.

2.Dual Jacket System:

The reactor is equipped with two independent jackets:

2.1 Inner jacket: used for heating or cooling the reaction mixture. It allows for the circulation of thermal fluids to achieve precise temperature control.

2.2 Outer Vacuum Jacket: provides superior insulation by creating a vacuum layer between the inner and outer glass walls. This minimizes heat transfer to the external environment, ensuring stable reaction conditions and reducing energy consumption.

3.Wide Temperature Range: the dual jacket system enables the reactor to operate efficiently across a broad temperature range, from -80°C ~ +250°C, making it suitable for a variety of chemical processes.

4. High-Quality Materials: constructed from premium borosilicate glass, the reactor is resistant to corrosion, chemical attack, and thermal stress. The PTFE seals ensure leak-proof operation and compatibility with a wide range of chemicals.

5. Versatile Applications: the 20L reactor is perfect for synthesis, extraction, polymerization and other processes in industries such as pharmaceuticals, biotechnology and fine chemicals.

How to Use the Dual Jacket System?

1.Inner Jacket:

Connect the inner jacket to a thermal fluid circulator. Depending on your process requirements, you can pump heated or cooled fluid through the jacket to control the temperature of the reaction mixture.

2.Outer Vacuum Jacket:

Before starting the reaction, evacuate the air from the outer jacket using a vacuum pump to create an insulating vacuum layer. This step is crucial for maintaining temperature stability and reducing heat loss.
