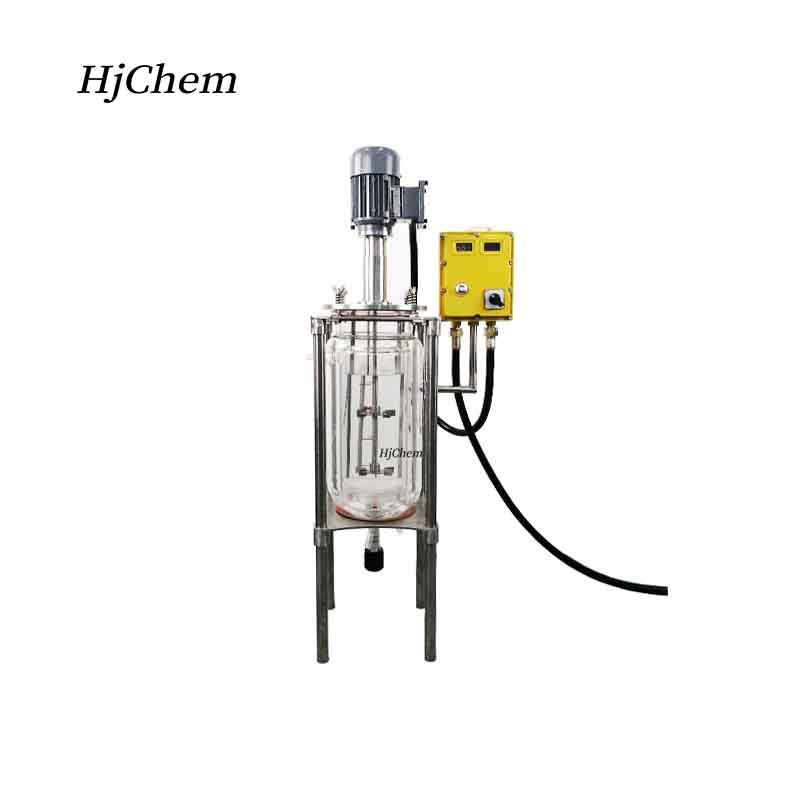

The Laboratory Triple Wall Glass Baffles Process Reactor combine innovative vacuum jacketed design with integrated baffles for high efficient mixing, chemical synthesis and thermal processing.

Basic Technical Specifications:

1. Volume: 5liter, other volume available, 100ml, 250ml, 500ml, 1L, 2L, 3L, 10L, 20L, 30L, 50L, 60L, 80L, 100L, 150L, 200L

2. Vessel: triple wall, single wall, double wall available

3. Working pressure: Full vacuum to 0.05Mpa

4. Working temperature: -80°C ~ +250°C

5. Nozzles on the cover: stirrer, liquid feeding, solid material feeding, dosing addition, temperature sensor, reflux&distillation, also support customization.

6. Support equipment: include precision temperature control units, high-performance vacuum pumps, agitation sytems and safety accessories.

What is a Triple Wall Glass Reactor ?

A triple wall glass reactor features three concentric layers of borosilicate glass.

The innermost layer holds the reaction mixture, the middle layer provides vacuum or insulation, and the outer layer adds structural integrity and safety.

This design ensures superior temperature control, reduced heat loss, and enhanced resistance to thermal shock compared to single- or double-wall reactors.

What is a Glass Baffles Process Reactor ?

The glass baffles process reactor incorporates strategically placed baffles(vertical plates) inside the vessel.

These baffles disrupt fluid flow during agitation, eliminating vortex formation and ensuring homogeneous mixing.

This is critical for reactions requiring uniform temperature distribution or precise particle suspension.

Why Choose a Triple Wall Glass Baffles Process Reactor ?

1.Unrivaled Temperature Control:

The triple wall glass reactor’s insulating middle layer maintains stable temperatures for prolonged periods, even during exothermic or cryogenic reactions.

This minimizes energy waste and ensures reproducible results in processes like crystallization or polymerization.

2. Optimized Mixing Efficiency:

The baffles design enhances agitation efficiency by up to 40% compared to baffle-free systems.

This is vital for viscous mixtures, multiphase reactions, or processes requiring rapid dissolution.

3. Safety and Durability:

Constructed from high-grade borosilicate glass, the reactor resists corrosion, thermal stress and chemical attack.

The triple-wall structure also reduces external surface temperature, protecting users and equipment.

For more information, please visit: Laboratory triple wall glass reactor
