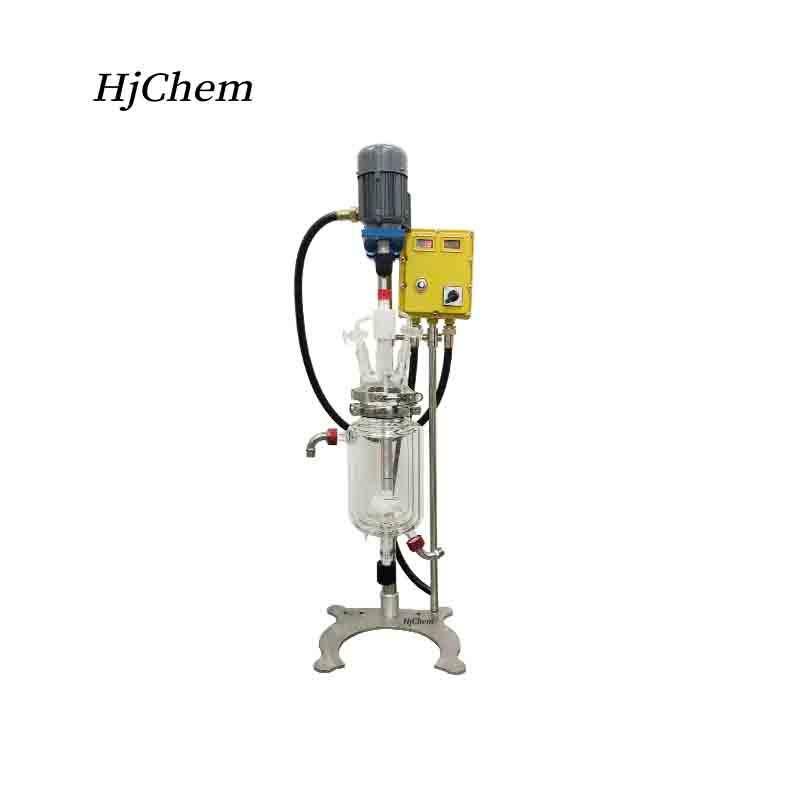

The 2 Liter Benchtop Three Layer Glass Reactor is a compact reactor system designed for precise chemical synthesis, mixing and distillation in laboratory settings.
Basic Technical Specifications:
1. Volume: 2liter, other volume available, 100ml, 250ml, 500ml, 1L, 3L, 5L, 10L, 20L, 30L, 50L, 60L, 80L, 100L, 150L, 200L
2. Vessel: triple wall, single wall, double wall available
3. Working pressure: Full vacuum to 0.05Mpa
4. Working temperature: -80°C ~ +250°C
5. Nozzles on the cover: stirrer, liquid feeding, solid material feeding, dosing addition, temperature sensor, reflux&distillation, also support customization.
6. Support equipment: include precision temperature control units, high-performance vacuum pumps, agitation sytems and safety accessories.
Why Choose a Three Layer Glass Reactor ?
Unlike traditional double-layer glass reactors, the three layer glass reactor features an additional insulating layer(vacuum jacket) between the inner and out walls.
This design enhances temperature control by minimizing heat loss and improving vacuum compatiblity.
It ensures exceptional durability, thermal stability and corrosion resistance, making it ideal for handling aggressive chemicals and temperature-sensitive reactions.
Key advantages include:
1. Superior Thermal Efficiency: The triple-layer structure maintains consistent reaction temperatures, critical for sensitive processes like crystallization or polymerization.
2. Enhanced Safety: The middle insulation layer reduces external surface temperature, protecting users from accidental burns.
3. Versatile Vacuum/Pressure Support: The robust three-layer design withstands both vacuum and low-pressure applications, expanding its utility across diverse workflows.
