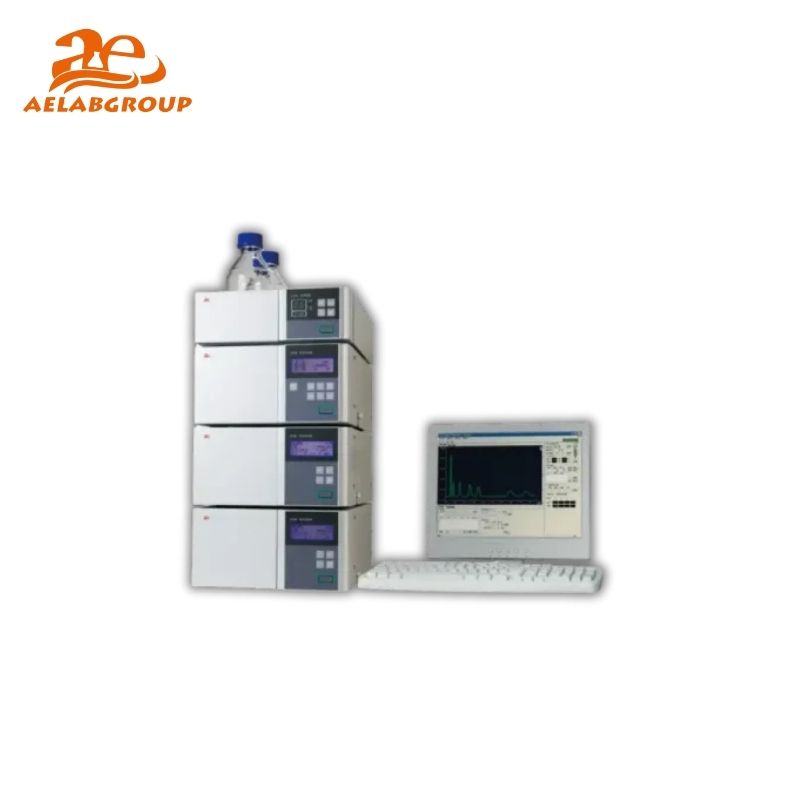

AELAB LC-80 Smart Isocratic HPLC System
A compact, integrated high-performance liquid chromatograph engineered for chemical, food/feed, agricultural, and educational laboratories.
Its modular structure, low dead volume, intelligent control system and upgraded durability components deliver stable, precise chromatographic performance with minimal maintenance.
Technical Features and Specifications
| Feature |
Details |
| Flow rate |
0.001–5.000 ml/min |
| Flow precision |
Sr <0.1% |
| Flow accuracy |
Ss ±1% |
| Max pressure |
40 MPa |
| Qualitative repeatability |
RSD <0.2% (Naphthalene/Methanol) |
| Quantitative repeatability |
RSD <0.5% (Naphthalene/Methanol) |
| Pressure fluctuation |
0.1 MPa |
| Spectrum bandwidth |
8 nm |
| Wavelength accuracy |
±1 nm |
| Wavelength precision |
<0.1 nm |
| Noise |
≤0.25×105 AU (static) |
| Drift |
≤0.4×104 AU/hr (static) |
| Min detectable conc. |
<5×10-9 g/ml |
| Dimensions |
455×220×267 mm |
Applications: Food and feed analysis, amino acids, vitamins, melamine, clenbuterol, aflatoxin, benzo(a)pyrene, Sudan dyes, chemical QC, agricultural residues and teaching laboratories.
FAQ
Q: How is calibration performed?
A: Calibration is executed through the chromatographic workstation using certified standards to ensure accurate flow rate and wavelength detection.
Q: Is the LC-80 GMP compliant?
A: Yes. The system supports GMP workflows with reliable operation, validated performance and traceable data management.
Q: What is the warranty period?
A: A standard 12-month warranty is included, with optional extended service agreements.
Learn more: Visit LC-80 HPLC System
