Floor Standing Low Speed Refrigerated Centrifuge,HereXi_specification/price/image

Product Detail
Company Profile

Features:

PLC and touch screen (in line with EU CE electrical standards), with control panel and high torque AC variable frequency motor, for stable operation and low noise, providing a comfortable laboratory environment.

Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function, .

It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three- stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.

TFT-LCD true color touch screen, can display setting parameters and operating parameters at the same time, the operation interface is simple and easy to use,can display the speed rise curve, centrifugal integral curve, temperature curve. the operation menu can provide multi- language (Chinese, English, Russian, Portuguese).

The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.

304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.

Can store 20 sets of user-defined programs Can be customized according to demand With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.

Model	TL5R	TL6R	TL8R
Max Capacity	4×750ml	Swing 4×750ml	Swing 4×750ml
Max Speed（r/min）	5500	6500	8000
Max RCF（×g）	4800	4800	6142
Speed precision	±50r/min	±50r/min	±50r/min
Refrigeration system	Import fluoride-free compressor and control valve（R404a）	Import fluoride-free compressor and control valve（R404a）	Imported fluoride-free compressor and control valve（R404a）
Temp.control range	－20℃～+40℃	－20℃～+40℃	－20℃～+40℃
Temp.precision	±1℃	±1℃	±1℃
Operation programe	20	20	20
Motor and drive	Frequency motor，micro control，direct driver	Frequency motor，micro control，direct driver	Frequency motor，micro control，direct driver
Total power	2.0kw	2.0kw	2.0kw
Timer range	0-99h59min	0-99h59min	0-99h59min
Noise	≤65dB	≤65dB	≤65dB
Identify rotor	Automatic function	Automatic function	Automatic function
weight	150kg	150kg	150kg
Dimension（L×W×H）	710×560×770mm	710×560×770mm	710×560×770mm

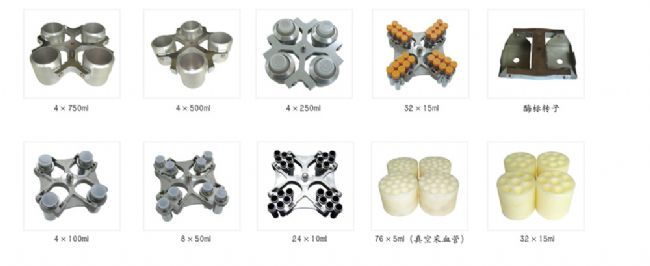

Model	Capacity	TL5R
Model	Capacity	speed	RCF
Angle rotor	12×15/10 ml	5500	3140
Swing rotor	4×750 ml	4000	3520
Swing rotor	4×250 ml	4000	2780
Swing rotor	4×250 ml(conical bottom)	4000	2780
Swing rotor	4×500 ml（round cup）	4000	3780
Swing rotor	4×100 ml	5000	4800
Swing rotor	8*50ml	4000	2960
Swing rotor	148×5 ml/2 ml （vacuum tube）	4000	2900
	48×5 ml/2 ml （vacuum tube）	4000	2950
	76×5 ml/2 ml （vacuum tube）	4000	3100
	32×15/10 ml	4000	4800
	24×15/10 ml	4000	2810
	4×100 ml	5000	4800
	8×50 ml	4000	2810
	32×15 ml	4000	2810
	32×10 ml	4000	2810
Swing microplate rotor	2×2×96 hole	4000	2360

Model	Capacity	TL6R
Model	Capacity	speed	RCF
Angle rotor	12×10 ml	6500	4055
Swing rotor	4×750 ml	4000	3500
Swing rotor	4×500 ml（round cup）	4000	3780
Swing rotor	148×5 ml/2 ml （vacuum tube）	4000	2900
	48×5 ml/2 ml （vacuum tube）	4000	2950
	48×5 ml(tube)	4000	2960
	76×5 ml/2 ml （vacuum tube）	4000	3100
	24×10 /15ml	4000	2960
	4×100 ml	5000	4800
	8×50 ml	4000	2960
	32×15 ml	4000	2960
	4*250ml (round bottom)	4000	2780
	4*250ml (concial bottom)	4000	2780
	4×2×96 hole	4000	3148
Swing microplate rotor	2×2×96 hole	4000	2360

Model	Capacity	TL8R
Model	Capacity	speed	RCF
Angle rotor	12×10 ml	8000	6142
Swing rotor	4×750 ml	4000	3520
Swing rotor	4×500 ml（round cup）	4000	3580
Swing rotor	148×5 ml/2 ml （vacuum tube）	4000	2900
	48×5 ml/2 ml （vacuum tube）	4000	2950
	76×5 ml/2 ml （vacuum tube）	4000	3100
	16×15 ml	4000	4800
	24×10 ml	4000	2810
	4×100 ml	5000	4800
	8×50 ml	4000	2960
	32×15 ml	4000	2810
	4*250ml(round bottom)	4000	2780
	4*250ml(conical bottom)	4000	2780
Swing microplate rotor	2×2×96 hole	4000	2360
Swing microplate rotor	4×2×96 hole	4000	3148
