Product details

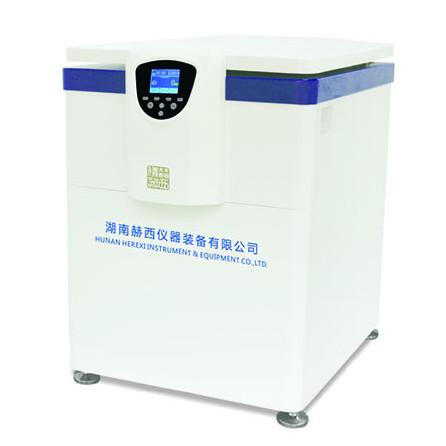

The automatic uncovering centrifuge is a conventional laboratory centrifugal machine that automatically removes the cover of the vacuum blood collection tube during centrifugation. Designed for hospitals, blood bank, nuclear medicine and other units.
Available with four different capacity ( 48, 76, 128, 148 tubes )to meet different separation needs; the device available in two models ( normal temperature and refrigerated) to meet the experiments needs.
Features:
● Micro-controller and high-torque brushless motor provide stable operation and low noise.
Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree,with standby cooling function, heating and defrosting function.
● TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
● It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, special damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
● 304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
● With mechatronic motor door lock.
● Can store 20 sets of user-defined programs (Can be customized according to demand),can display the speed rise curve,
centrifugal integral curve, temperature curve.
● With CFDA filing and CFDA production qualification, ISO 9001 and ISO 13485 certification.
Model
DD5M (Automatic Uncovering)
Max capacity
124 tubes/148 tubes
Separation number of blood collection tube
124/148
Max speed(r/min)
4000
Max RCF(×g)
3420
Speed precision
±50r/min
Control and drive system
Frequency motor,micro control,direct drive
Operation programme
20
Time range
0-99h59min
Power
AC220V 50Hz
Noise
≤60dB(A)
Total power
1.0KW
Dimension(L×W×H)
710×560×770 mm
weight
75 Kg
