Product details
Widely applicable in fields including medical treatment(such as hospitals,treatment and control centers,blood centers,husbandry,aquaculture,radiation and immunization),researching(institutions of higher education,research institutes,R&D centers and labs)and production(such as bioengineering,bio-pharmacy,genetic engineering,biochemistry,plant extraction,blood preparation,food processing,petrochemical engineering and cream separation.)

Features:
1.AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.PLC and touch screen (in line with EU CE electrical standards), with control panel and high torque AC variable frequency motor, for stable operation and low noise, providing a comfortable laboratory environment.
2.Variable frequency drive system and automatic control system to ensure steady and reliable operation.
3.Maximum capacity 6×2400ml.
4.It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
5.304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.

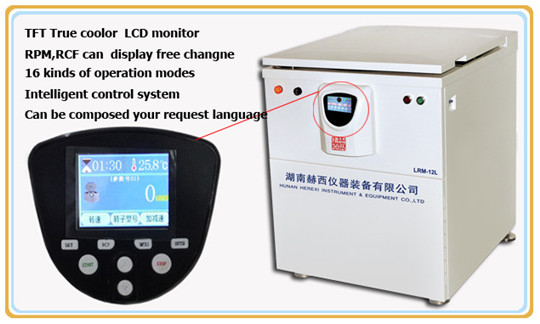

6.TFT-LCD true color touch screen, can display setting parameters and operating parameters at the same time, the operation interface is simple and easy to use,can display the speed rise curve, centrifugal integral curve, temperature curve. the operation menu can provide multi- language (Chinese, English).
7.Can store 20 sets of user-defined programs （Can be customized according to demand).
8.With CFDA; CFDA production qualification, ISO 9001, ISO 13485 and CE certification.

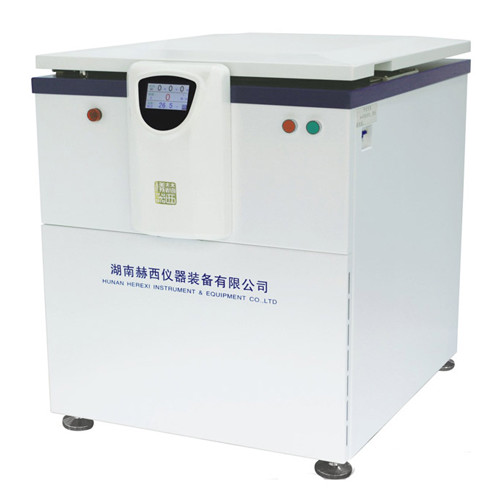

Model	LRM-12L
Max Capacity	6X2X1000ml blood bag or 6×2400ml
Max Speed（r/min）	4200 r/min
Max RCF（×g）	5680×g
Speed precision	±50r/min
Motor and drive	Frequency motor，micro control，direct driver
Refrigeration system	Imported fluoride-free compressor and control valve（R404a）
Operation programe	16
Temp.control range	-20℃～+40℃
Temp.precision	±1℃
Timer range	0-99h59min
Total power	6KW
Power	AC220V 50Hz
Noise	＜65dB（A）
Dimension （L×W×H）	860×960×1200mm
weight	450kg

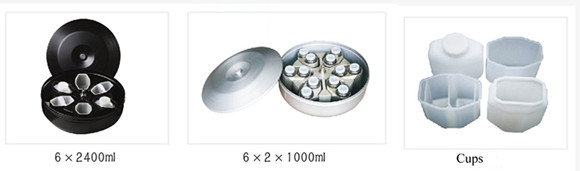

Model	capacity	LRM-12L
		Speed	RCF
Swing rotor	6X2X1000ml	4200	5680
	6X2400ml	4000	5653
