- Application:

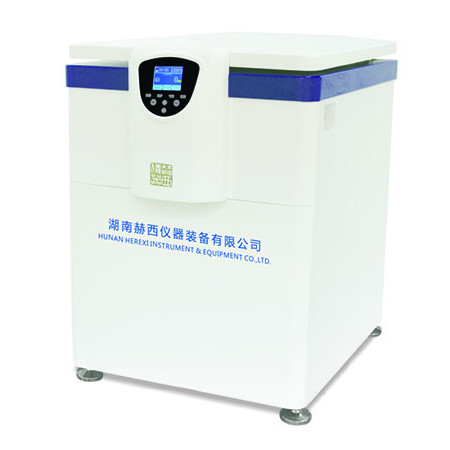

TL5R automatic uncovering centrifuge(Automatic decapping centrifuge) is a standard piece of equipment widely used for separation and preparation of liquids laden with suspended matter, and suit for applications in labs and research institutes in such fields as biochemistry, medical science, pharmacy, clinical trials, food and environment protection.
Features:
* Micro-controller and high-torque brushless motor provide stable operation and low noise.
* Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree,with standby cooling function, heating and defrosting function.
* TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
* It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure,
special damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
*304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel
protective cover to ensure the safety of workers and laboratories.
*With mechatronic motor door lock.
*Can store 20 sets of user-defined programs (Can be customized according to demand),can display the speed rise curve,
centrifugal integral curve, temperature curve.
*With CFDA filing and CFDA production qualification, ISO 9001 and ISO 13485 certification.
Parameters:
Maximum rotate speed: 4000r/min
Maximum centrifugal force: 3420×g

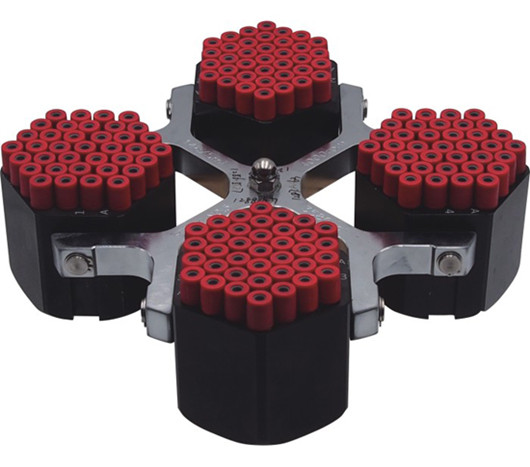

Maximum blood tubes splite quantity: 124 tubes/148 tubes
Time range: 0~99h59min
Operation programme: 20 sets
Temperature control range: -20ºC~40ºC
Temperature precision: ±1ºC
Control and driver system: Frequency motor, micro control, direct drvie
Refrigeration system: fluoride-free compressor and control valve
Total power: 2000W
Rotate speed precision: ±50r/ min
Noise: ≤65dB
Input Power: AC 220V 50HZ 10A
Dimension: L710×W560×H770mm
Weight: 150kg
-
Herexi Instrument & Equipment Co.,Ltd. is a modren hi-tech incorporated enterprise, is specialized in research and development and providing complete laboratory instrument & equipment. The company high-manager and technologist team took part in drawing national science instrment development program of the National “Fifth Five Plan” to “Seventh Five Plan”, and joined to stipulate for the Standard of High Speed Refrigerated Centrifuge.
Herexi Instrument & Equipment Co.,Ltd is only warranty dealer to act as an agent of Hongkong Herexi Company in China upcountry of lots of OEM lab instrument. We had development the first Herexi 3HRI serise High Speed Refrigerated Centrifuge. It is national famouse product, the technology keep ahead in the world.
Presently, we proveding 6 series and 40 variety products, including High Speed Refrigerated, large-capacity, low-speed and refrigerated, low-speed and Herexi 3HRI series intellectualized Centrifuge.
Over past 30 years, "Herexi Instrument"'s quality products have served hi-tech areas covering war industry, scientific research, colleges and universities, centre blood sationes, hospitals, bioproducts, pharmacy, argriclture science, environment protect reserch and petrochemical ect...
We have a excellent reserch and producting team, superior lines of machinery and processing technologies, complete products testing equipment.
We have experienced team to provide our customers with the service on lab layout, formula developing, technical consultancy.
Our Mission: to meet our customers needs any time any where, to provide best solution to our customers with most suitable instrument, innovative techniques and perfect service.
With commitment to credit,we have obtained a large share of Chinese market,at the same time, won the support and trust from our clients.
Dedicated to the mission of helping our customers spend money in a wiser way and utilize instrument more efficiently, we will unswervingly continue along the path of pushing Chinese instrumental industry to conform to international standards..
