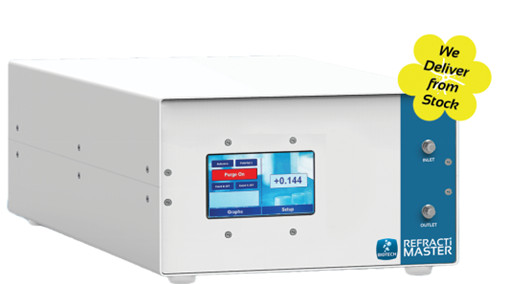

BIOTECH REFRACTIMASTER® RI Detector
BIOTECH REFRACTIMASTER® RI Detector
Place of Origin:
Sweden
Brand:
Biotech Fluidics
Model:
BIOTECH REFRACTIMASTER®
Price:
Hits:
127
Updated:
5/19/2024
  • Product Detail
  • Company Profile
    NEW PRODUCT RELEASE!

    More robust, more sensitive, and more communicative. The new REFRACTiMASTER® RI detector from Biotech Fluidics excels in every aspect, and is perfect for determination of simple sugars, complex carbohydrates, alcohols, fatty acids, and polymers.



    With a 4.3” touch panel, intuitive user interface and features as extended temperature range up to 80 °C, this is a refractive index detector truly built for modern HPLC analysis. The detector do also have an automatic detection of sample path blockage, as well as a built-in overpressure safety assembly to prevent any cell breakage in case of blockage.

    Stay tuned for more information about features and specifications or contact Biotech Fluidics to get your hands on the first units released from production.


    SKU Description
    AB-20101 REFRACTiMASTER® RI detector
    REFRACTiMASTER® HPLC DRI Detector – Specification Sheet
    Measurement Type Deflection
    Refractive Index Range ± 1.75 n
    Full Range 512 µRIU
    Measurement Ranges 500 µRIU, 250 µRIU, 125 µRIU, 62.5 µRIU
    Noise Level < 1.0x10E-9 RIU
    Drift < 0.001 µRIU / h
    Flow Cell Volume 7.8 µL
    Max. Pressure at Cell 0.7 MPa
    Cell protection Automatic Cell Safety device in case of Overpressure
    Temperature Range Room to 80 °C in 1 °C steps
    Temperature Accuracy ± 0.5 °C
    Temperature Stability > 0.01 °C
    Flow Range 0.1 – 10.0 mL/min
    Autozero Range Full Operation range
    Wetted Materials 316L, PTFE, PEEK, Quartz, PPS
    Display Full Color 4.3” TFT Display with Touch Panel
    Power requirement AC 90 – 270V, 50-60 Hz
    Power Consumption 80 VA max
    Dimensions 420x260x160 mm
    Weight 8 kg
    SKU AB-20101
    Communication
    Analog output ± 1V Full Range
    Analog output ± 1V for currently selected Range
    Analog Input ± 2.5 V
    2 TTL Level Digital Outputs (Start, Error)
    2 TTL Level Digital Inputs (Start, Error)
    USB and LAN Connection
    RC.Net protocol soon to be available
    bio-equip.cn
    At Biotech Fluidics, our aim is to help you make your analytical work more effective and reliable. For more than 15 years we have developed and delivered innovative laboratory products to leading laboratories, instrument manufacturers and distributors across the world. We specialize in chromatography instruments, detectors and consumables plus finding solutions to issues with gases and bubbles in fluidic systems. By using our advanced degassers, labs can optimize the performance of their analytical instruments and chromatographic equipment. Our degassing solutions save the industry both time and money by avoiding production disruptions caused by bubbles in the fluidic lines. To support long-term relationships with our customers, it is important for us to take care of the aftermarket effectively. We have therefore built an organization of service and support. In addition, we offer fast delivery of spare parts directly from the company’s stock.
