DEGASI® PREP+ degasser
DEGASI® PREP+ degasser
Place of Origin:
Sweden
Brand:
Biotech Fluidics
Model:
DEGASI® PREP+
Price:
Hits:
129
Updated:
5/19/2024
  • Product Detail
  • Company Profile
    INTRODUCING THE UPGRADED FIRST HIGH FLOW RATE, IN-LINE DEGASSER FOR ORGANIC SOLVENTS

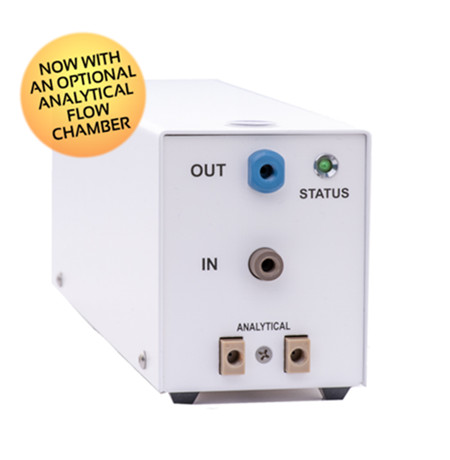

    Biotech in co-operation with IDEX H&S are proud to announce the world’s first in-line, membrane degasser ready to use with aggressive media and organic solvents, while maintaining flow-rates up to 150ml/min and above*. Available configurations: Stand alone, OEM open frame 1-4 channels and with an optional analytical flow chamber.



    APPLICATIONS
    Preparative HPLC
    Flash Chromatography
    High-throughput Applications
    Clinical Chemistry Analysers
    Dispensing Applications
    Ink Degassing

    GENERAL SPECIFICATIONS

    Part no. # channels Internal Volume
    0001-0120 1 23 ml
    0001-0220 2 23 ml
    0001-0420 4 23 ml


    * 150ml/min is only a guideline value, the degasser will in many application work with flow rates well above this guideline. The degasser comes with 2-channels as standard


     where each channels recommended flow rate is 75 ml/min, connecting these chambers in parallel will allow for a combined flow rate of 150 ml/min.


    DEGASI® PREP DEGASSER

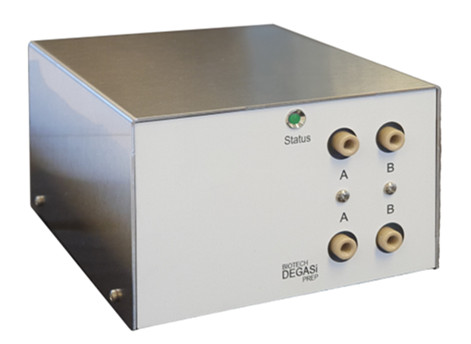

    The DEGASi® PREP vacuum degassing system for analytical instrumentation and HPLC removes dissolved gasses at flow rates up to approximately 15-20 ml/min per channel. Built for the rigours of modern preparative and semi-prep scale HPLC, its unique design assures reliable continuous operation and the highest level of continuous performance available. The low internal volume of each Systec AF™ channel offers quick equilibration and short startup times compared with PTFE degassers.

    PRODUCT FEATURES
    Ultra-high degassing efficiency
    Low volume, easy to prime
    Dual lumen design for low-flow resistance
    ZHCR® patented control eliminates baseline fluctuations
    Inert flow path
    Long life expectancy – 5+ years continuous (24/7) running capacity
    Continuous vacuum system monitoring to ensure optimum operational conditions are maintained

    GENERAL CHAMBER SPECIFICATIONS

    Recommended Flow Rate:
    15 ml/min (Per Channel)
    Wetted Materials:
    Systec AF™, PPS, Glass-filled PTFE
    Degassing Channel Tubing:
    Systec AF™ (0.075"e; ID)
    Liquid Connection:
    1/4’’-28 UNF threaded flat-bottom port
    Degassing Channel Pressure Rating:
    70 PSI (testing pressure)
    Size (L x H x B):
    296 x 163 x 79 mm



    POWER REQUIREMENT USING SUPPLIED AC ADAPTER
    100 to 240 VAC (±10 %), 1 A,
    50 to 60 Hz (±3 Hz)
    Wall Sockets: 4 supplied with AC Adapter, interchangeable: North America/Japan, U.K., Continental Europe, Australia

    Part no. # channels Channel Volume (ml) Flow Rate Per Channel for 70% Gas Removed from 60% MeOH/40% water (ml/ min) Pressure Drop (kPa/mL/min)
    0041-2053 2 5,3 15 0,02
    0041-4053 4 5,3 15 0,02
    0001-2053     Replaced by 0041-2053
    0001-6482     Replaced by 0001-0220
    0001-6484     Replaced by 0001-0220
    bio-equip.cn
    At Biotech Fluidics, our aim is to help you make your analytical work more effective and reliable. For more than 15 years we have developed and delivered innovative laboratory products to leading laboratories, instrument manufacturers and distributors across the world. We specialize in chromatography instruments, detectors and consumables plus finding solutions to issues with gases and bubbles in fluidic systems. By using our advanced degassers, labs can optimize the performance of their analytical instruments and chromatographic equipment. Our degassing solutions save the industry both time and money by avoiding production disruptions caused by bubbles in the fluidic lines. To support long-term relationships with our customers, it is important for us to take care of the aftermarket effectively. We have therefore built an organization of service and support. In addition, we offer fast delivery of spare parts directly from the company’s stock.
