LABOAO Explosion-proof rotary evaporator EXRE 1L-5L
LABOAO Explosion-proof rotary evaporator EXRE 1L-5L
Place of Origin:
China
Brand:
LABOAO
Model:
LRE 1L-5LEX
Supplier:
Zhengzhou Laboao Instrument Equipment Co., Ltd
Price:
USD700-USD1200
Hits:
623
Updated:
4/30/2025
Related Products | Other Products | Related Suppliers
  • Product Detail
  • Company Profile

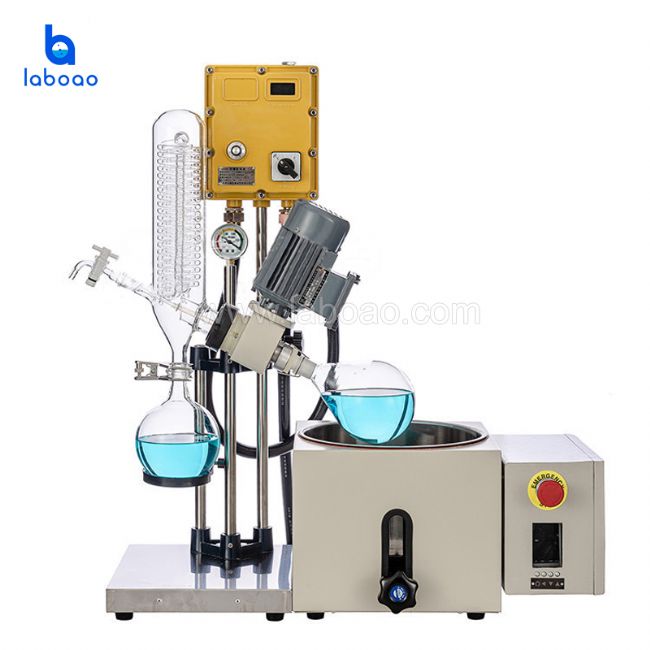

    Explosion-proof rotary evaporator EXRE 1L-5L
    laboratory rotary evaporatorexplosion-proof rotary evaporatorsmall rotary evaporatordigital rotary evaporatorglass rotary evaporatorvacuum rotary evaporator
    LRE 1L-5LEX
    LABOAO
    Any port in China
    Plywood case package

    The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.




    1. Description
    The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is to heat the rotating bottle at a constant speed under vacuum conditions, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperature.
    1. Feature
    1. All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material are all used in contact with the material contact portion, and the performance is stable, and it is not easy to chemically react with materials.
    2. The main bracket uses cold plate anti-corrosion spray + aluminum alloy material, and has strong anti-corrosion characteristics. Pot bile adopts stainless steel quality, compact structure, durable, beautiful appearance;
    3. The sealing system uses the polytetrafluoroethylene + fluororubber combination seal to maintain high vacuum;
    4. Vacuum pressure gauge display real-time vacuum, pointer display;
    5. The piston feeding valve sleeve piratifores lengthen tubes, which can be continuously fed to evaporation bottles in a vacuum state, which is convenient for customers.
    6. Integrated condenser, upright double-layer snake-shaped coil to ensure high recovery;
    7. Variable frequency speed, explosion-proof switch. The knob is fine-tuning, the number of revolutions is displayed;
    8. Constant temperature bath temperature digital display, K-type sensor + stainless steel probe, fast transmission temperature
    9. Bath pot hand wheel rises, easy to operate;
    10. Electric explosion-proof, variable frequency speed aluminum shell explosion-proof, control plate aluminum shell explosion-proof, cable wear explosion pipe.
    1. Specification
    Model LRE-201EX LRE-301EX LRE-501EX
    Voltage frequency 220V/50Hz
    Total power 1040W 2040W
    Rotating motor power EX40W
    Heating power 1000W 2000W
    Vacuum 0.098Mpa
    Rotary flask capacity 1L 3L 5L
    Collect flask capacity 1L 2L 3L
    Rotating speed 0~120rpm
    Temperature range RT-180℃
    Temperature control accuracy ±1℃
    Bath pot lifting stroke 200mm
    Condenser size φ85x430mm φ100x530mm
    Condensation area 0.17㎡ 0.26㎡
    Feed valve 19#standard port
    Vacuum pumping outlet Outer diameterφ10mm
    Condensate tube into and out circulation port Outer diameterφ12mm
    Bath size φ245x140mm φ265x160mm φ280x170mm
    Overall size(W*D*H) 750x360x1060mm 790x360x1090mm
    Machine net weight 32KG 33KG 34KG
    Package Size 990x620x470mm 1090x690x490mm
    Package weight 49KG 50KG 51KG


    bio-equip.cn
    Zhengzhou Laboao Instrument Equipment Co., Ltd (LABOAO) is a high-tech enterprise integrating R&D, production, sales, import and export, and is a leading laboratory equipment solution provider in China. LABOAO is headquartered in Zhengzhou, China. It has a group of excellent management and technical personnel who strive for excellence and constantly pursue progress and innovation. After fifteen years of hard work, it has achieved sustained and steady development, and its products are exported to Europe, America, Southeast Asia, the Middle East, South Africa, etc. 150 countries, we are working hard to establish a global regional service agency to provide better services and products for global customers.

    The company has always adhered to the corporate tenet of "innovative technology, life first", focusing on laboratory research, life science, biomedical engineering and other fields, focusing on continuous innovation and development, improving the technical content of products, enriching product categories, realizing product upgrades, and gradually strengthening the enterprise. Core competitiveness, LABOAO regards product quality as the vitality of the enterprise, all our products have undergone strict testing and quality inspection, and have established a set of strict internal quality control system in accordance with international quality standards, and meet strict international standards. So far, the company has passed ISO9001 quality management system certification, EU CE, SGS, TUV, CNAS and other certifications.

    LABOAO's main business involves laboratory instruments/consumables, life science instruments, chemical analysis instruments, optical instruments, medical equipment, drug inspection instruments, agricultural instruments, food inspection instruments and other industry-related instruments. Our products are widely used in laboratories, scientific research institutions, universities, chemical companies, hospitals, new energy, agriculture, food, metallurgy and mining, construction, petroleum and other industries.

    The company introduces world-class automated production equipment and production technology, and continuously expands production capacity to meet customer needs. The investment of advanced production equipment and software facilities makes the enterprise more international standardization and standardization. LABOAO actively carries out various cooperations such as OEM and ODM with world-renowned enterprises. In continuous practice and application, LABOAO will continue to provide high-quality products and services to global customers.
    Our company has 78 employees and 20 R&D teams. More than 85% of the company's employees have more than three years of professional foreign trade experience. 10% of the annual sales are focused on product development and improvement. We believe that only excellent teams can High quality service is good for customers.

    We advocates the corporate spirit of "integrity, dedication, integrity, cooperation". With its rich network marketing experience, corporate strategic management and talent advantages, the company constantly explores the past, forms an international channel brand, and incubates international brands with Internet thinking. Mission, strive to achieve our vision of redefining the premium and impact of Chinese products in the global market!
