Ultravap™ Microplate evaporators
Ultravap™ Microplate evaporators
Place of Origin:
United Kingdom
Porvair Sciences Limited
  • Product Detail
  • Company Profile

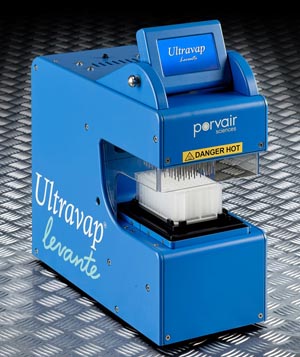

    Ultravap™ Microplate evaporators

    Porvair evaporators are designed to remove the traditional laboratory ‘bottleneck’ of solvent evaporation from microplates prior to analysis or reconstitution in storage buffer. These evaporators give significant throughput advantages to laboratories looking to optimise microplate sample preparation productivity. Faster than centrifugal evaporation, significant increases in sample throughput are achieved through advanced evaporator head technology and an innovative manifold design, which directly injects heated nitrogen into each individual well of the microplate simultaneously. The evaporators have been designed to be simple to install, operate and maintain. Installation requires only connection to a gas supply or cylinder and mains electricity. Safety of operation is ensured as the CE marked compact units fit into all fume cupboards.

    The Ultravap™ is a digitally controlled programmable evaporator. It can be used as a stand alone unit or driven by a computer, often connected to a robotic liquid handler. After empirical data for dry down has been produced, this can be entered into the memory of the Ultravap for future recall and use. Each programme has three stages, with control of gas temperature, pressure and plate height at each stage. Nine different methods can be permanently stored in memory. The Ultravap will then evaporate plate contents quickly, by keeping the heated gas needles close to the liquid surface at all times in the concentration process, without further manual intervention.

    Ultravap™ high speed sample concentrator

    Description Qty/pack Cat. no.

    Ultravap™ 96 with spiral needles, 240V, for 96-well plates 1pc 229070

    Ultravap™ 96 with spiral needles, 110V, for 96-well plates 1pc 229080

    Ultravap™ 96 with straight needles, 240V for 96-well plates 1pc 229135

    Ultravap™ 96 with straight needles, 110V for 96-well plates 1pc 229136

    Ultravap™ 384 with straight needles, 240V, for 384-well plates 1pc 229071

    Ultravap™ 384 with straight needles, 110V, for 384-well plates 1pc 229081

    Porvair Sciences, specialists in the manufacture of microplate products, serve Life Sciences, Biotechnology, R&D and Molecular Biology with microplate solutions for all applications, from sample preparation to high throughput screening via our global distributor network.

    Our range includes vacuum manifolds, sealers, evaporators and microtiter plates in all popular styles; deep well and shallow well storage plates, assay plates, luciferase reporter gene plates and liquid handling reagent reservoirs. We also provide custom microplate products for life science research.

    Our vacuum manifolds, essential for 96-well SPE sample preparation, are designed to work with most popular filter plates, including Waters, Millipore, Qiagen, Whatman, GE Healthcare, Varian, Biotage and, of course, Porvair.

    For further information, including custom built microplates, reagent reservoirs, vacuum manifold design or microplate handling equipment, please contact us: Tel: +44 1978 666240; Email: int.sales@porvair-sciences.com.
