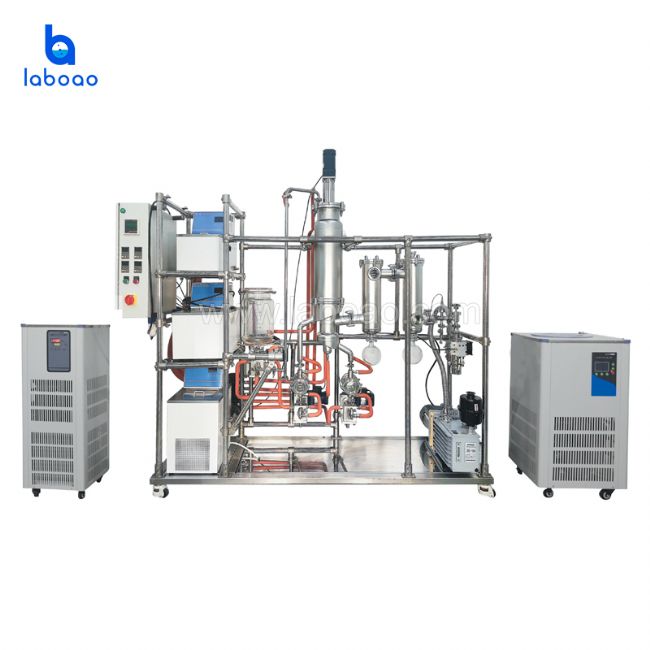

- Stainless Steel Molecular Distillation For Essential Oil Extraction
LSMD
wiped film molecular distillation, glass molecular distillation, glass wiped film distillation unit, molecular distillation for oil extraction
Wiped Film/Molecular distillation is the best thermal separation method for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. Our wiped film evaporation and distillation system are widely used for plant oil, garlic oil, cod liver oil and chemical and pharmaceutical industries.
Shorter residence time, lower separation temperature, capability of continuous and unattended operation makes wiped film molecular (short path) evaporation and distillation system standing out.
Molecular distillation is a special liquid-liquid separation equipment. Unlike traditional distillation, it relies on the boiling point difference separation principle, but on the difference of the average free path of different substances. When the liquid mixture flows along the inner wall of the main evaporator and is heated, light and heavy molecules will escape from the liquid level and enter the gas phase. Due to the different free paths of light and heavy molecules, the molecules of different substances move different distances after escaping from the liquid level. After passing through the built-in condensate pipe of the main evaporator, the light molecules reach the condensate pipe and are discharged, while the heavy molecules cannot reach the condensate pipe and are discharged along the mixed liquid, So as to achieve the purpose of material separation.
Working Principle
The materials are transported from the feed tank to the jacketed main evaporator. The main evaporator is continuously heated. The built-in scraper evenly scrapes the materials into a layer of flowing liquid film for instant evaporation. The light component materials begin to vaporize and adsorb on the built-in condensing coil, flow into the receiving bottle along the outer wall of the condensing pipe, and the heavy component materials flow into the receiving bottle along the inner wall of the main evaporator.
1. Modularized design for flexible options
2. Continuous feeding & collection modules design, saving labor cost and working time
3. Fully jacketed design, wide applications for different materials
4. SUS316L stainless steel, safe and reliable
5. Sight glass and quick connect design, easy to disassemble and clean
| Model | LSMD-0.1 | LSMD-0.15 | LSMD-0.25 | LSMD-0.35 | LSMD-0.5 | LSMD-1 | LSMD-1.5 | LSMD-2 | LSMD-3 | LSMD-5 |
| Condenser area (㎡) | 0.17 | 0.3 | 0.4 | 0.7 | 1.7 | 2.7 | 3.5 | 4.9 | 6.5 | 8 |
| Effective evaporation area (㎡) | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Feeding rate (LH) | 5~12 | 6~15 | 10~25 | 15~30 | 20~60 | 50~120 | 60~180 | 100~200 | 100 ~300 | 200 ~500 |
| RPM (r/min) | 30~350 | |||||||||
| Stainless steel material | 304/316 | |||||||||
| Feeding method | Gear pump automatic continuous feeding | |||||||||
| Discharge method | Gear pump automatic continuous discharge | |||||||||
| Work temperature | Within 350℃ | |||||||||
| Voltage | 200V 50Hz (can be customized) | |||||||||
-
Zhengzhou Laboao Instrument Equipment Co., Ltd (LABOAO) is a high-tech enterprise integrating R&D, production, sales, import and export, and is a leading laboratory equipment solution provider in China. LABOAO is headquartered in Zhengzhou, China. It has a group of excellent management and technical personnel who strive for excellence and constantly pursue progress and innovation. After fifteen years of hard work, it has achieved sustained and steady development, and its products are exported to Europe, America, Southeast Asia, the Middle East, South Africa, etc. 150 countries, we are working hard to establish a global regional service agency to provide better services and products for global customers.
The company has always adhered to the corporate tenet of "innovative technology, life first", focusing on laboratory research, life science, biomedical engineering and other fields, focusing on continuous innovation and development, improving the technical content of products, enriching product categories, realizing product upgrades, and gradually strengthening the enterprise. Core competitiveness, LABOAO regards product quality as the vitality of the enterprise, all our products have undergone strict testing and quality inspection, and have established a set of strict internal quality control system in accordance with international quality standards, and meet strict international standards. So far, the company has passed ISO9001 quality management system certification, EU CE, SGS, TUV, CNAS and other certifications.
LABOAO's main business involves laboratory instruments/consumables, life science instruments, chemical analysis instruments, optical instruments, medical equipment, drug inspection instruments, agricultural instruments, food inspection instruments and other industry-related instruments. Our products are widely used in laboratories, scientific research institutions, universities, chemical companies, hospitals, new energy, agriculture, food, metallurgy and mining, construction, petroleum and other industries.
The company introduces world-class automated production equipment and production technology, and continuously expands production capacity to meet customer needs. The investment of advanced production equipment and software facilities makes the enterprise more international standardization and standardization. LABOAO actively carries out various cooperations such as OEM and ODM with world-renowned enterprises. In continuous practice and application, LABOAO will continue to provide high-quality products and services to global customers.
Our company has 78 employees and 20 R&D teams. More than 85% of the company's employees have more than three years of professional foreign trade experience. 10% of the annual sales are focused on product development and improvement. We believe that only excellent teams can High quality service is good for customers.
We advocates the corporate spirit of "integrity, dedication, integrity, cooperation". With its rich network marketing experience, corporate strategic management and talent advantages, the company constantly explores the past, forms an international channel brand, and incubates international brands with Internet thinking. Mission, strive to achieve our vision of redefining the premium and impact of Chinese products in the global market!
