Product Overview

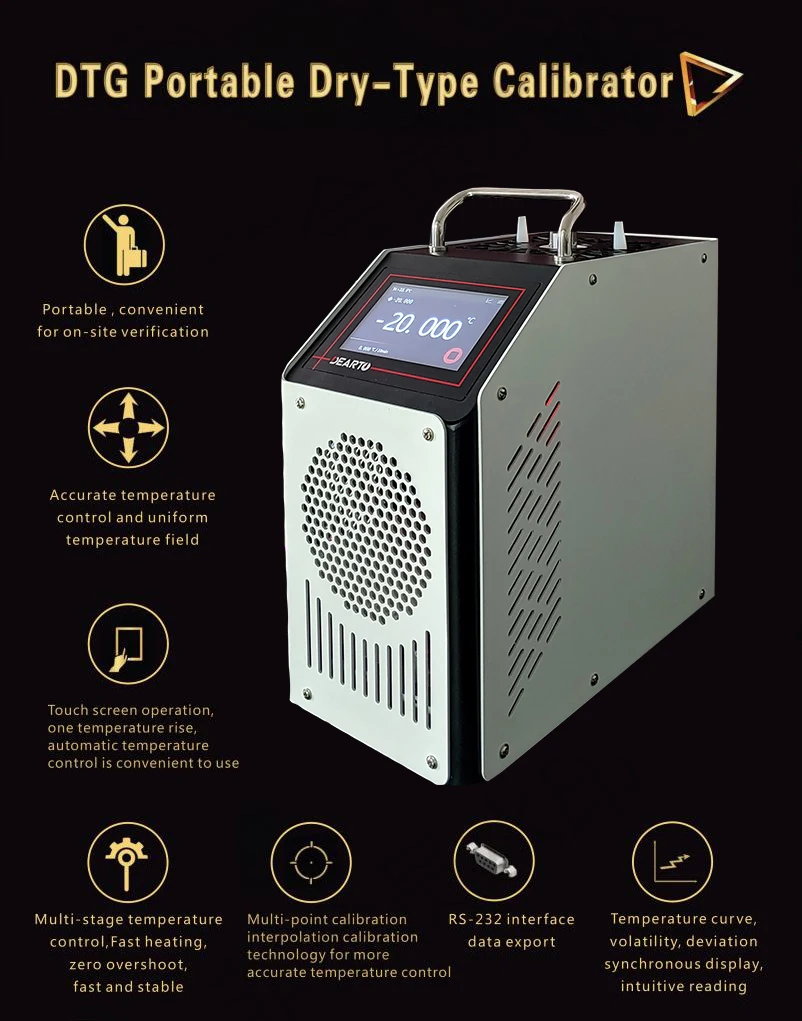

DTG low temperature portable intelligent dry body furnace, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
Operation interface
Setting interface
PID settings interface
Auto-tuning interface
Product Paramenters
|
Model
|
DTG-20G
|
DTG-35G
|
|
|
Temperature range
|
-20℃~140℃
|
-35℃~150℃
|
|
|
Heat source
|
Semiconductor cooling and heating
|
||
|
Control method
|
Touch screen
|
||
|
Display resolution
|
0.001℃
|
||
|
Standard dry block insertion aperture
|
Φ4,Φ6,Φ7,Φ10 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
|
||
|
Horizontal temperature field
|
≤±0.1℃
|
||
|
Vertical temperature field
|
Within 30mm from the bottom of the well ≤1.0 ℃
|
||
|
Well depth
|
170mm
|
||
|
Dimensions
|
280 x 165 x 280 mm
|
||
|
Power supply
|
220V/50Hz
|
||
-
Tai’an Detu Automation Instrument Co.,Ltd is a temperature and humidity precision calibration instrument professional manufacturer,with strong research and development strength and professional technical team,as well as multiple patents and software copyrights.
