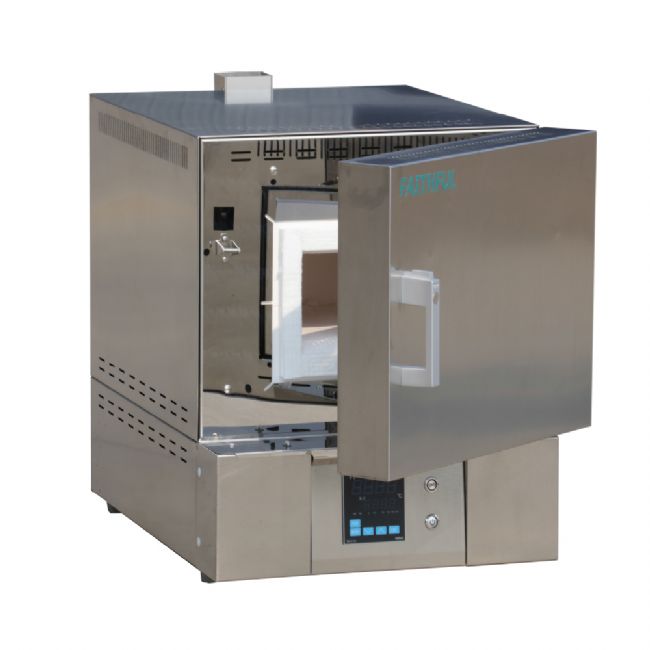

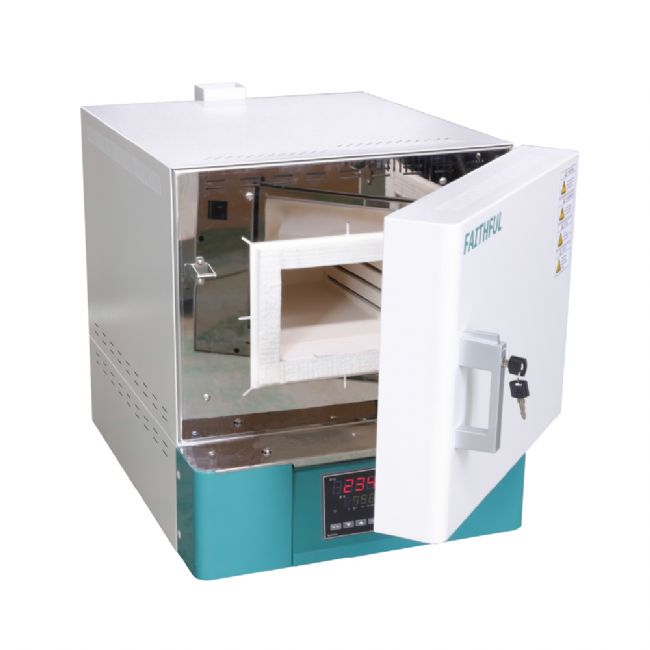

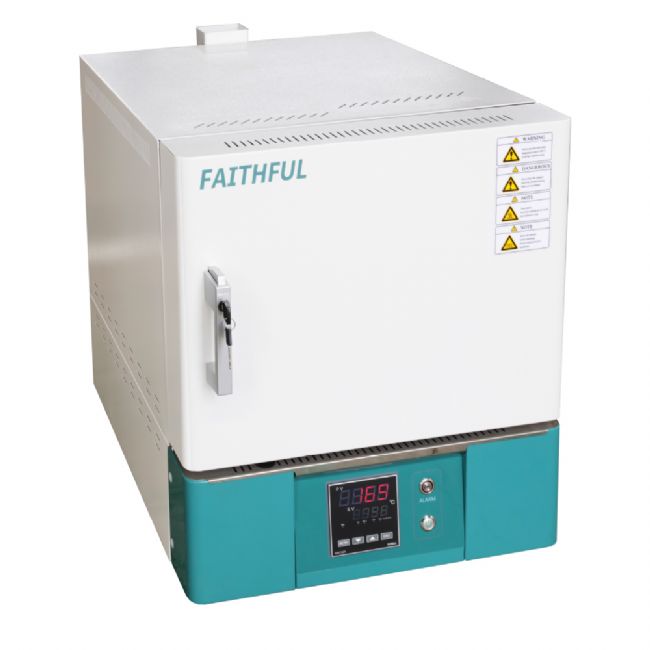

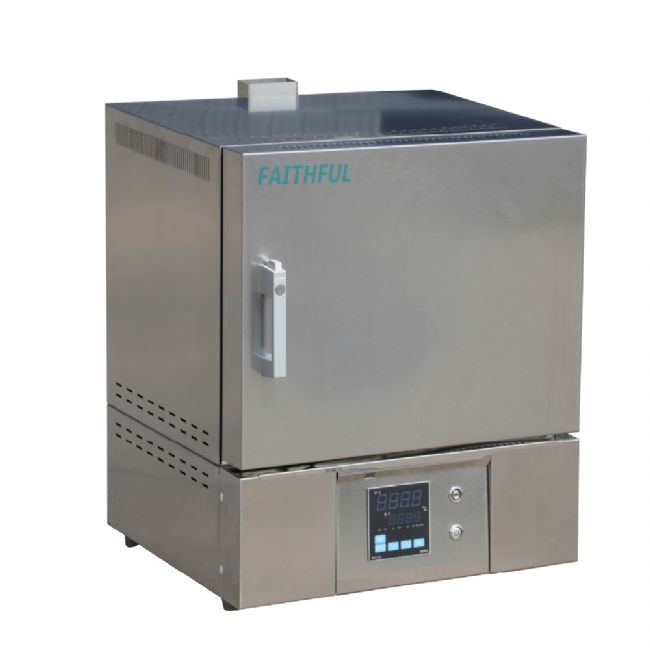

Ceramic Fiber Muffle Furnace
------Sintering, melting, elemental analysis and physical measurement within 1200℃ of precise control

Product Description

1. Mirror stainless steel mouth, long-term use will not change color.
2. Imported double insulated ceramic liner, stable performance.
3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.
4. In the double shell, the air sleeve is insulated, and the double guiding air passage.
5.High-precision micro-computer controller and precision sensor are perfectly integrated,and the temperature are accurate.
SX4 model also has the following characteristics:

1.Import time control system and high precise sensor with sensitive
2.response , high precision and good stability .
3.Adding exhaust devices is beneficial to ashing.
4.Split design, circuit detachable, easy to maintenance and repair. P model is program temperature control type. program temperature controller can programme multistage program.

Technical Parameter

Model	SX3-2.5-12	SX3-5-12	SX3-8-12	SX3-10-12
	SX4-2-12	SX4-7-12	SX4-12-12	SX4-16-12
	SX4-2-12P	SX4-7-12P	SX4-12-12P	SX4-16-12P
	SX4-2-12PB	SX4-7-12PB	SX4-12-12PB	SX4-16-12PB
Heating mode	Alloy wire heating in three sides left; right; top side.
Temp. Range	100-1200℃
Temp. Resolution Ratio	1℃
Temp. motion	±1℃
Max.Temp. Rising time	≤30min
Chamber material	Ceramic fiber
Outer shell	Without B: Cold rlling steel electrostatic spraying exterior, B type: sus 304 Embossed stainless steel
Insulation layer	Ceramic fiber
Heater	Alloy heating wire
Power rating	1.5kW	3.0kW	4.5kW	6.0kW
Exhaust hole	φ30mm(chimney size 80*60mm)
Temp. control mode	SX3 Type: domestic Xiamen Yudian single- stage temperature cntollr: SX4 Type: Japanese conduction single- -stage temperature contoller; SX4-P: Japanese Fui color LCD 64 segment programmed temperature cortoller;
Temp. setting mode	Touch button setting
Temp. display mode	Measuring temperature: LED upper row, setting temperature: the lower row
Timer	Timer uncion:0-9999 min; SX4 P: Tming Function, 99 hours and 59 minutes (with Timing Wailing Function)
Operation function	Fixed temperature operation, timing function, auto stop.
Additional function	Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory
Sensor	SX4: High precision K type sensor
Safety device	Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection，thermocouple failure
Inner Chamber size (WLH)(mm)	12020080	200300120	200300200	250400160
Exterior size (WLH)(mm)	450685600	530785640	530785720	600895700
Packing size (WLH)(mm)	580775730	660875770	660875850	730985830
Volume	2L	7L	12L	16L
Current rating (50/60HZ)	AC220V/6.6A	AC220V/13.6A	AC220V/20.4A	AC380V/9.9A
NW/GW (kg）	33/37	45/50	62/68	77/96
optional type	LCD Program controller with USB Storage, 5.0 inch touch display program contoller with USB storage
