Constant Temperature ＆ Humidity Incubator
Constant temperature experiment and environmental test of humidity range
Constant temperature experiment and environmental test of humidity range
Product Description
1. Unique internal wind circulation, breeze circulate fan circulation make inner chamber temperature uniformity.
2. Large LCD display,multiple data display at the same time,30-stage program control,round move,ladder operating,with function of loop self-diagnose and sensor fault alarm.
3. Intelligent PID temperature control system, high precise temperature control PT100 sensor equipped, high precise and stability import humidity sensor component to control humidity automatically.
4. Double door structure, with high quality stalinite to observe samples, outer door with magnetic strip, convenient to on and off, good sealing.
5. Intelligent defrosting function ensure device long-time run without defrost. Standard mechanical independent temperature limiter provide double protection.
6. Inner humidifying system with small particles, good humidity uniformity, low water consumption and function of alarm when is short of water.

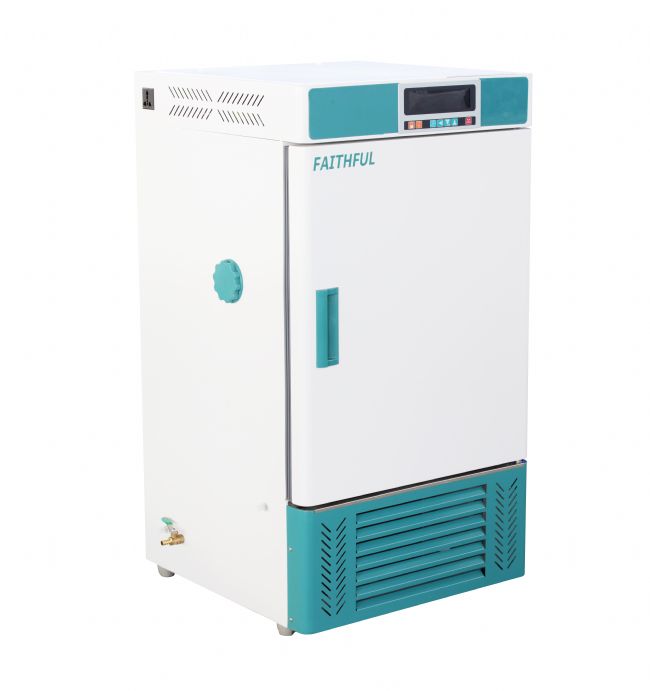

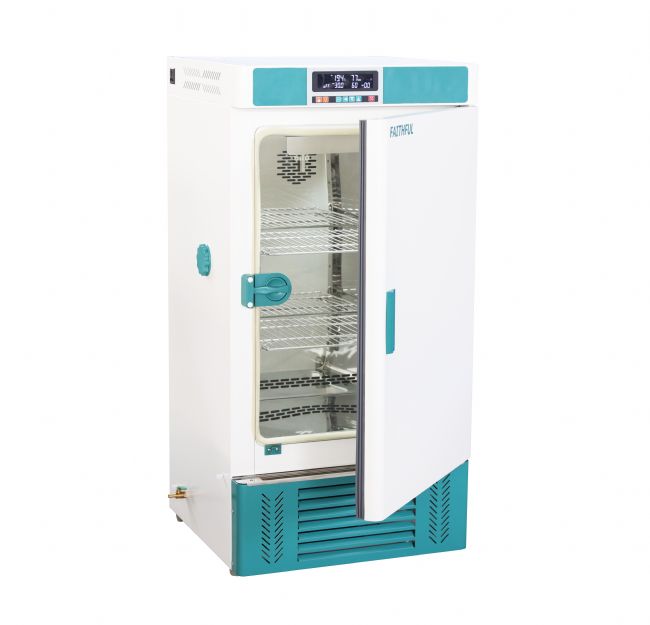

Product Images
Technical Parameters
1. Unique internal wind circulation, breeze circulate fan circulation make inner chamber temperature uniformity.
2. Large LCD display,multiple data display at the same time,30-stage program control,round move,ladder operating,with function of loop self-diagnose and sensor fault alarm.
3. Intelligent PID temperature control system, high precise temperature control PT100 sensor equipped, high precise and stability import humidity sensor component to control humidity automatically.
4. Double door structure, with high quality stalinite to observe samples, outer door with magnetic strip, convenient to on and off, good sealing.
5. Intelligent defrosting function ensure device long-time run without defrost. Standard mechanical independent temperature limiter provide double protection.
6. Inner humidifying system with small particles, good humidity uniformity, low water consumption and function of alarm when is short of water.
Product Images
Technical Parameters
| Model | HWS-70B | HWS- 150B | HWS-250B | |
| Cycle Mode | Forced convection | |||
| Function | Temp. range | No humidification：0～65℃；humidification：10 ～65℃ | ||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp. Motion | High Temp.：±0.5℃ Low Temp.：±1℃ | |||
| Temp. Uniformity | ±1℃ | |||
| Humidity Range | 45%～95%RH | |||
| Humidity Stability | ±5%RH | |||
| Structure | Inner Chamber | Mirror Sainless Steel | ||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Insulation layer | Polyurethane | |||
| Heater | Stainless steel heater | |||
| Power rating | 1.8kW | 2.0kW | 2.2kW | |
| Compressor | Air cooled hermetic compressor | |||
| Cryogen | R134A | |||
| Defrost structure | Automatic control itelligent defrosting | |||
| Humidifying method | External | |||
| Test hole | Plastic test hole中43mm | |||
| Controlled external power supply | Universal socket (one) | |||
| Temp. setting mode | Touch button setting | |||
| Temp. display mode | Measuring temperature: LCD upper row； Setting temperature: the lower row | |||
| Humidity control mode | AUTO | |||
| Timer | 0～99.9h×30 section（with timing wait function） | |||
| Operation function | Fixed value operation. timing function,auto stop. Program operation | |||
| Sensor | PT100 | |||
| Humidity Sensor | High precision anti-condensation | |||
| Additional funciton | Deviation correction, Menu key lock, Power failure parameter memory | |||
| additional character: UV light, loop self diagnosis | ||||
| Safety device | Over temp alarm, Over humidity alarm, Water shortage alarm | |||
| Specification | Inner Chamber size(W*L*H)(mm) | 415*350*500 | 490*400*750 | 500*500*950 |
| Exterior size (W*L*H)(mm) | 571*591*1051 | 646*641*1301 | 656*741*1501 | |
| Packing size (W*L*H)(mm) | 686*690*1211 | 761*740*1461 | 771*840*1661 | |
| Volume | 70L | 150L | 250L | |
| Load per rack | 15kg | |||
| Shelf number | 9 | 12 | 18 | |
| Shelf space | 35mm | |||
| Power Supply（50/60Hz）Current rating | AC220V/8.2A | AC220V/9.1A | AC220V/10A | |
| NW/GW (kg） | 69/92 | 86/114 | 100/139 | |
| Accessory | Shelf | 2 | ||
| optional accessories | Spare shelf, USB Intertace and sotware, printer, Recorder, remote control,U- disk storage | |||
-
