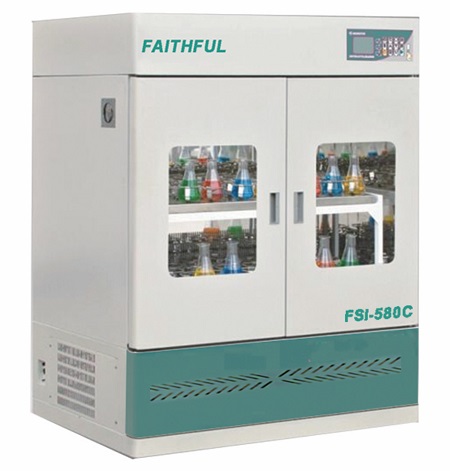

LCD Vertical Constant Temperature Shaker / Shaking Incubator
Product Description
1.Imported compressors ,imported bearings,servo motors.
2.Air duct design,not direct blowing,good temperature uniformity.
3.The minimum speed is 20rpm,Custom models can be done 10rpm, and it can start andstop at ultra-low speed to protect the sample to the greatest extent.
4.Make an appointment to start the function.
5.Solenold value defrost function can ensure long-term low temperature operation.
6.Can be to run forward,reverse, and alterbnately run.
Technical Parameter
| Name | Vertical Constant Temperature Shaker (LCD) |
| Model | FSI-580C |
| Control Mode | PID microcomputer processing chip |
| Cycle Mode | Forced convection |
| Shaking Mode | Convolution |
| Display Mode | LCD liquid crystaldisplay |
| Drive Mode | Multidimensional drive |
| 4 Axes | |
| USB data download system | Yes |
| Control System | Standard mode; continuous mode; programmable mode (multi-stage temperature, speed, time control)） |
| Rotary Speed Range（rpm/min） | 0，20-280（Can do static training, forward and reverse） |
| Rotary Accuracy（rpm） | ±1 |
| Amplitude（mm） | Φ26（customizable Φ35（20-250rpm/min)、Φ50（20-2000rpm/min） |
| Clamp | 250ml*90 or 500ml*72 or 1000ml*42 |
| Shaking Plate | 250ml*112 or 500ml*76 or 1000ml*42 |
| Standard configuration | 250ml*45 500ml*36 |
| Plate Size（mm） | 950*550 |
| Timer Range（h/min) | 0-9999（with timing function) |
| Temperature Range（℃） | 4-65 （25℃） |
| Temperature Accuracy（℃） | ±0.1 |
| Temperature Uniformity（℃） | ±0.5（37℃，Effectivet work face） |
| Temperature Motion（℃） | ≤0.1（37℃） |
| Tray Quantity | 2 pieces |
| External Size（mm） | 1200*800*1630 |
| Capacity（L） | 175 |
| Power（W） | 1400 |
| Power Supply | AC220±10% 50-60HZ |
| Ambient Temperature（℃） | 5-30 |
| Additional Function |
Ultra-low start, adjustable start speed, automatic overspeed protection, watchdog timer, parameter memory, call recovery, refrigeration unit overload protection and call delay start, automatic defrost, upper and lower limit over temperature sound and light alarm, automatic stop when the door is opened (optional ), with lighting, ultraviolet disinfection function (optional), setting parameter view, monitoring temperature and correction of ambient temperature. Touch screen (optional) |
-
Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.
All our FAITHFUL products have passed the CE Certificate.
