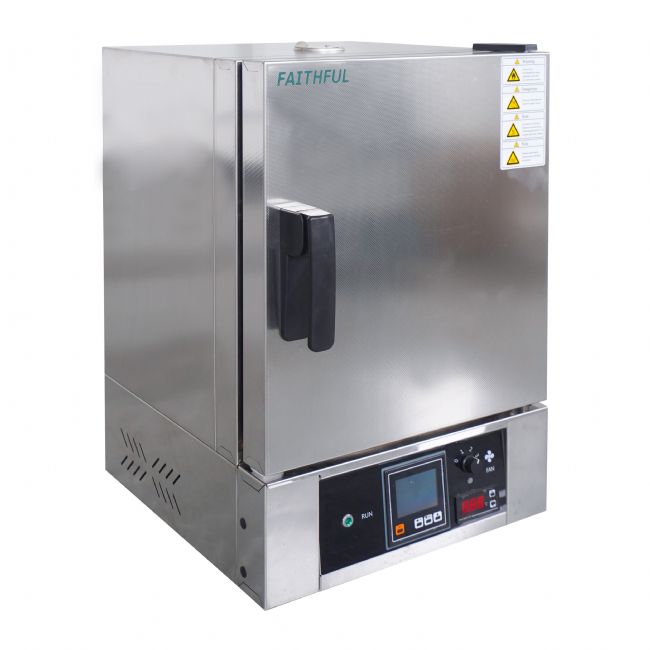

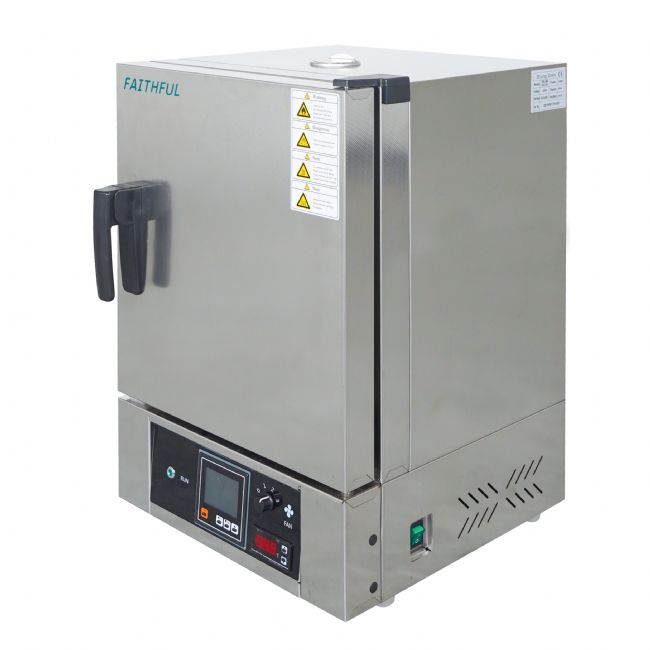

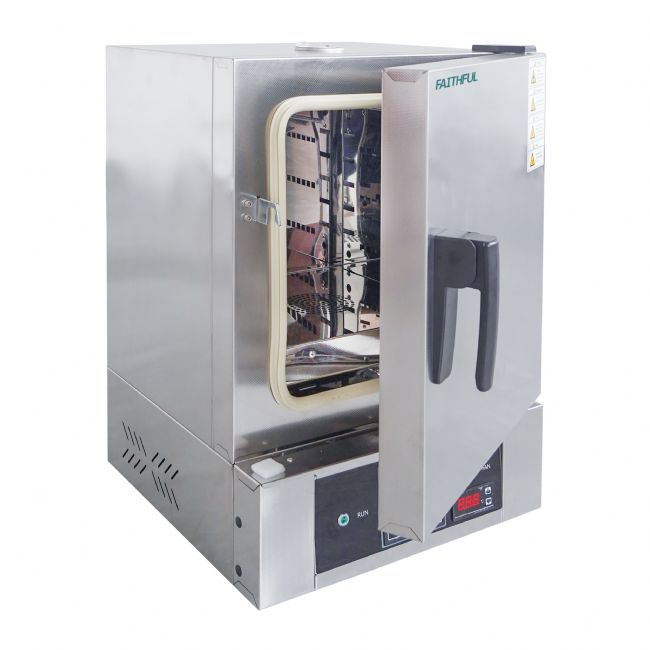

SUS 304 Forced Air Drying Oven

Product Description

1.Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2.PID controller, with over-temperature protection function.
3.With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
5.LCD temperature controller.
6. 4 grades speed fan, adjustable for different requirements.
7. Over-temperature protection system.
8. High precision digital independent temperature limiter.
9.304:SUS304 Stainless Steel Body.

Technical Parameter

Model	WGLL-30BE（304）
Cycle Mode	Forced convection
Temp. Range	RT+10-300℃
Temp. Resolution Ratio	0.1℃
Temp. Motion	±1℃
Temp. Uniformity	±2.5%
Inner Chamber	Mirror Stainless Steel
Outer Shell	Cold rolling steel electrostatic spraying exterior
Insulation layer	High quality rock wool board(with CE)
Heater	Stainless steel heater
Power rating	0.8kW
Exhaust hole	φ28mmtop(with function of test hole)
Temp. control mode	Two temperature section PID intelligent
Temp. setting mode	Touch button setting
Temp. display mode	Measuring temperature display on upper LCD screen， setting temperature display on the lower row
Timer	0-9999min(with timing wait function)
Operation function	Fixed temperature operation, timing function, auto stop.
Additional function	Mechanical independent temperature limiter, 3-grade adjustable speed fan (230BE without fan speed adjustor),sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
Sensor	PT100
Inner Chamber size(WLH)(mm)	310310310
Exterior size (WLH)(mm)	450500690
Packing size (WLH) (mm)	550585845
Volume	30L
Shelf number	6
Load per rack	15kg
Shelf space	35mm
Power rating (50/60HZ)	AC220V/3.6A
NW/GW (kg）	33/37
Shelf	2
Shelf frame	4
optional accessories	Spare shelf, RS485 interface, printer, Program controller, remote control,U-disk storage;
