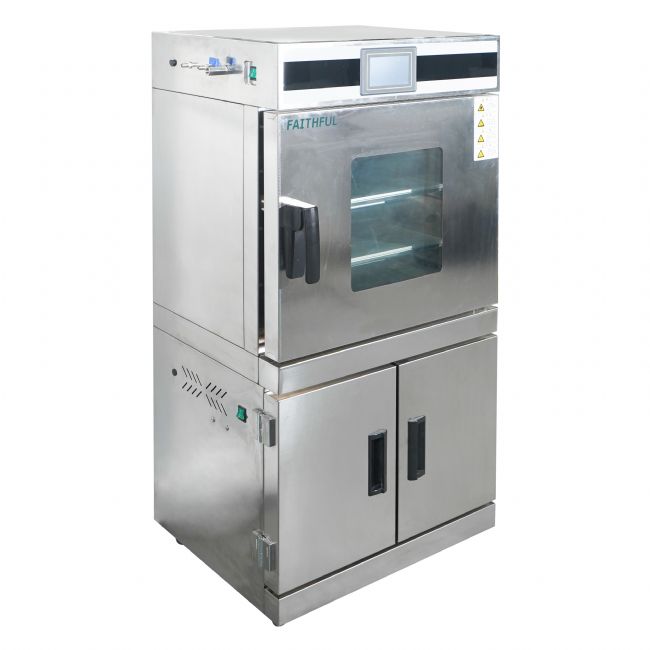

High Precision Automatic Vacuum Drying Oven
------Pluggable shelf heating
------Pluggable shelf heating
Product Description
Use :
OIt is designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It is widely used in medicine, food, light industry,chemical industry, agricultural scientific research, environmental protection and other experimental fields.
Characteristics :
1.SUS304 embossed stainless steel housing, SUS304 mirrored stainless
steelstudio, 5083 corrosion resistant aluminum plate.
2.Independent pluggable shelf heating, each shelf temperature controlled
separately.
3.Fixed value or program operation mode, true color 5.0-inch touch screen
multi-section PID temperature controller, high temperature control
accuracy, real -time temperature curve record, convenient for users to see
the heating process. The program mode can realize temperature control and vacuum degree multi- -stage programming operation to improve the
experimental efficiency.
4.Automatic vacuum degree control system, set the vacuum degree,
automatically reach the set vacuum degree. Standard with inflatable port,
manual and electric double set of exhaust device.
5.Users can configure the vacuum pump, standard with the vacuum pump
oil return device, convenient for customers to use, avoid the vacuum
pump oil return.

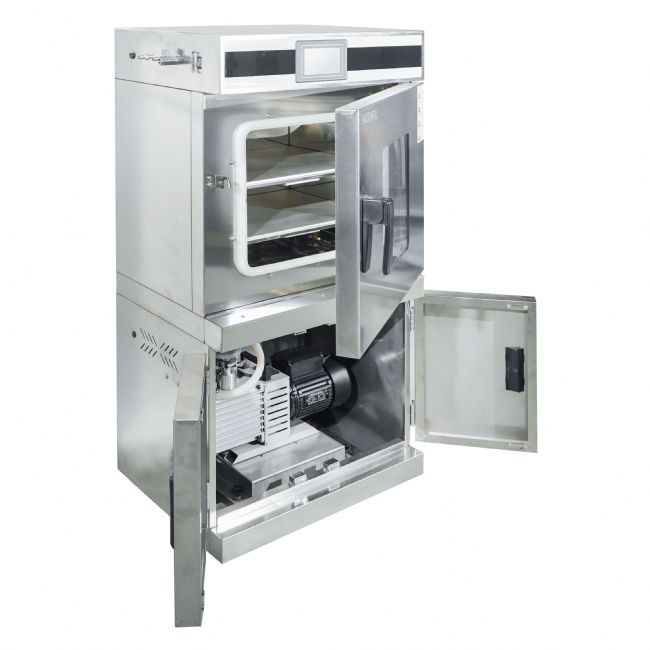

6.BLT type standard with vacuum pump, air pipeline equipped with air
filter device, improve the service life of vacuum pump.
Technical Parameter
Use :
OIt is designed for drying heat-sensitive, easily decomposed and easily oxidized substances. It is widely used in medicine, food, light industry,chemical industry, agricultural scientific research, environmental protection and other experimental fields.
Characteristics :
1.SUS304 embossed stainless steel housing, SUS304 mirrored stainless
steelstudio, 5083 corrosion resistant aluminum plate.
2.Independent pluggable shelf heating, each shelf temperature controlled
separately.
3.Fixed value or program operation mode, true color 5.0-inch touch screen
multi-section PID temperature controller, high temperature control
accuracy, real -time temperature curve record, convenient for users to see
the heating process. The program mode can realize temperature control and vacuum degree multi- -stage programming operation to improve the
experimental efficiency.
4.Automatic vacuum degree control system, set the vacuum degree,
automatically reach the set vacuum degree. Standard with inflatable port,
manual and electric double set of exhaust device.
5.Users can configure the vacuum pump, standard with the vacuum pump
oil return device, convenient for customers to use, avoid the vacuum
pump oil return.
6.BLT type standard with vacuum pump, air pipeline equipped with air
filter device, improve the service life of vacuum pump.
Technical Parameter
| Model | DZ-2BL | DZ-3BL | ||
| DZ-2BLT | DZ-3BLT | |||
| Heating mode | Shelf direct heating | |||
| Function | Temp. Range | RT+10-250℃ | ||
| Vacuum degree Range | <133Pa | |||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp. motion | ±1℃ | |||
| Heating-up time | ≤40minutes | |||
| Structure | Inner Chamber | SUS304 mirror stainless steel | ||
| Outer Shell | SUS304 embossed stainless steel | |||
| shelf | 5083 Corrosion resistant aluminum plate | |||
| Insulation Layer | Aluminium silicate fibre | |||
| Heater | Mica electrothermal film | |||
| Observation window | Bulletproof tempered glass | |||
| Vacuum meter | Absolute pressure accuracy class 0.25 | |||
| Exhaust device | Manualand electric double exhaust device | |||
| Air intake port | Standard inflation port | |||
| BLT Vacuum Pump System (BL:without Vacuum Pump ) |
Double stage rotary vane vacuum pump 2LS | Double stage rotary vane vacuum pump 4L/S | ||
| Vacuum pump air inlet drying fiter | ||||
| Vacuum pump exhaust oil mist filter | ||||
| Nozzle Diameter | 10mm | |||
| Power rating | BL:1.2kW BLT:1.6kW | BL:1.6kW BLT:2.0kW | ||
| Controller | Temp. control mode | 5.0-inch LCD color touch screen multi-stage PID program temperature control single shelf independent temperature control |
||
| Temp. setting mode | Touch button setting | |||
| Timer | 0-9999 minutes 1 0-9999 hours (can adjust) | |||
| Operation function | Fixed temperature operation, timing function, auto stop | |||
| Fixed Value Mode | Control temperature and vacuum at the same time | |||
| Program Mode | Control temperature and control vacuum at the same time 30 programmable operation | |||
| Additional function | Real-time temperature curve recording. with U disk data storage and export function | |||
| Sensor deviation correction, temperature overshoot self-setting, internal parameter locking, power off parameter memory | ||||
| Temp.Sensor | PT100 | |||
| Safety device | Over temperature sound-light alarm, mechanical temperature limiter, sensor fault alarm, over vacuum degree alarm | |||
| Specification | Inner Chamber size(W*L*H)(mm) | 415*370*340 | 450*450*450 | |
| Exterior size (W*L*H)(mm) | 635*565*796 (BLT:635*565*1296) |
670*645*906 (BLT:670*645*1406 |
||
| Packing size (W*L*H)(mm) | 804*705*957 (BLT:804*705*1457) |
840*785*1062 (BLT:840*785*1562) |
||
| Volume | 52L | 91L | ||
| Number of shelf | 2 | |||
| Load per rack | 15kg | |||
| Shelf space | 140mm | 185mm | ||
| Current rating (50/60HZ) | AC220V/6.3A | AC220V/9.1A | ||
| NW/GW (kg） | BL: 67/92 BLT: 87/112 | BL: 82/105 BLT:102/125 | ||
| Accessory | Shelf | 2 | ||
| Shelf frame | 4 | |||
| Optional Accessories | Shelf ( Independent temperature control ) ,RS485 transfer to USB communication interface,Printer, Remote control, wireless SMS alarm | |||
-
Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.
All our FAITHFUL products have passed the CE Certificate.
