Safety feature:
1. Over pressure, safety valve can automatically open to release pressure.
2. Over temperature, the system will power off automatically.
3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
5. Over current, over voltage or electric leakage protection apparatus-air switch.
6. Door cover. The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.
Home >Products> Clean Benches | Biosafety | Sterilizers >Autoclaves / Sterilizers> Biobase China On Sales Vertical Hand Wheel Autoclave 50L 75L 100L
Clean Benches | Biosafety | Sterilizers:
Clean Benches
Biosafety Cabinets
Autoclaves / Sterilizers
Fume Hood
Ultrasonic Cleaner
- Biobase China On Sales Vertical Hand Wheel Autoclave 50L 75L 100L
- Product Detail
- Company Profile

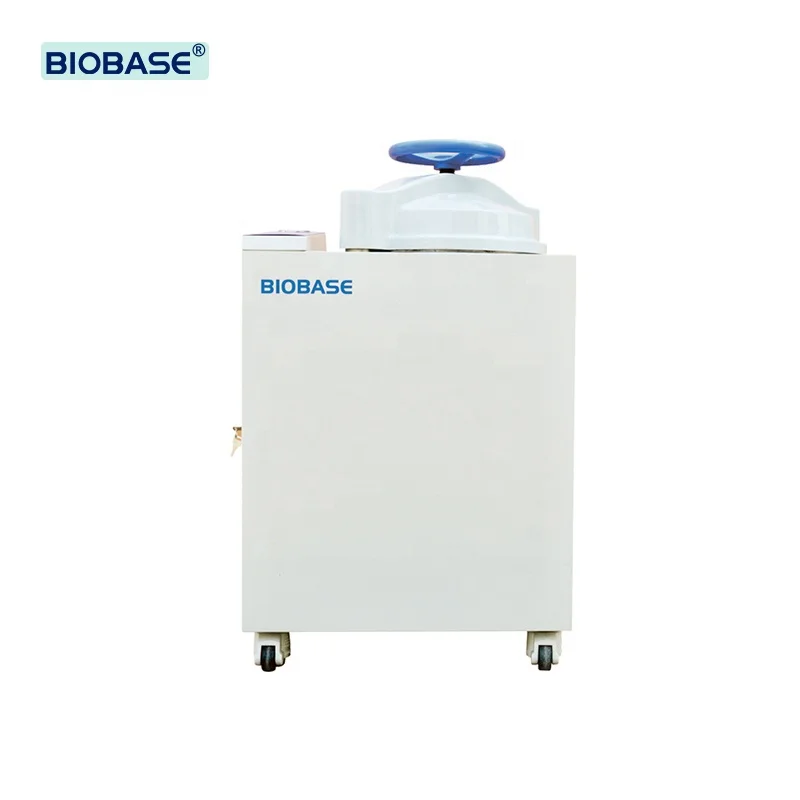

BIOBASE Vertical Autoclave
BIOBASE Product Introduction
Technical Parameters
|
Model
|
BKQ-B50(II)
|
BKQ-B75(II)
|
BKQ-B100(II)
|
BKQ-B120(II)
|
BKQ-B150(II)
|
BKQ-B200(II)
|
|
|
Capacity
|
50L
|
75L
|
100L
|
120L
|
150L
|
200L
|
|
|
Chamber size(mm)
|
φ386*500
|
φ386*682
|
φ386*875
|
φ386*1055
|
φ500*760
|
φ500*1000
|
|
|
Chamber material
|
304 medical stainless steel
|
||||||
|
Max designed
pressure |
0.28Mpa
|
||||||
|
Max designed temp
|
150℃
|
||||||
|
Working pressure
|
0.175MPa
|
0.217MPa
|
|||||
|
Working temp.
|
105~136℃
|
50~134℃
|
|||||
|
Temp. accuracy
|
±0.1℃
|
||||||
|
Timing range
|
0~999min
|
||||||
|
Dynamic pulse
exhaust times |
0~9 times
|
||||||
|
Dynamic pulse
exhaust temp. |
105~134℃
|
||||||
|
Dissolution temp.
range |
60~100℃(programmable)
|
||||||
|
Temp. holding range
|
40~60℃(programmable)
|
||||||
|
Power supply
|
110/220V, 50/60Hz
|
220V, 50/60Hz
|
380V, 50Hz
|
||||
|
Power consumption
|
4.4KW
|
4.7KW
|
5.2KW
|
5.2KW
|
6KW
|
||
|
SS basket
|
1 pc
|
2pcs
|
2pcs
|
3pcs
|
3 pcs
|
4pcs
|
|
|
External size(mm)
|
550*640*970
|
550*640*1070
|
550*640*1270
|
550*640*1370
|
715*720*1350
|
715*720*1550
|
|
|
Packing size(mm)
|
780*690*1190
|
780*690*1130
|
780*690*1510
|
780*690*1590
|
760*800*1500
|
760*800*1690
|
|
|
Gross weight(kg)
|
115
|
123
|
136
|
151
|
|||
