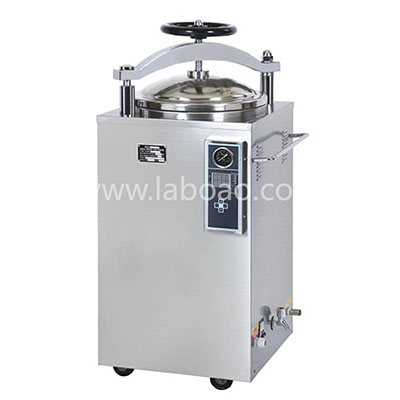

Vertical Autoclave
Vertical Autoclave
Place of Origin:
YXQ-SII Series
  • Product Detail
  • Company Profile
    Product Features
    Made of SUS304
    Handwheel type quick-open cover
    Microcomputer intelligent control
    Self expanding type seal ring
    Exhaust cold air automatically
    Self-control when lack of water
    Self-exhaust when over pressure
    Pressure safety interlock
    Over temperature protection
    Buzzer reminds when sterilization ends
    Equipped with G1/2A internal thread sample test hole

    Technical Parameters
    Model YXQ-30SII YXQ-50SII YXQ-75SII YXQ-100SII
    Volume [L] 29 50 75 100
    Power [kW] 2.3 3.2 3.5 3.5
    Power Supply [V, Hz] 220±10%, 50±2% 220±10%, 50±2% 220±10%, 50±2% 220±10%, 50±2%
    Max. Working / Design Temp. [°C] 135 / 139 135 / 139 135 / 139 135 / 139
    Max. Working / Design Pressure [MPa] 0.22 / 0.25 0.22 / 0.25 0.22 / 0.25 0.22 / 0.25
    Timer Range [min] 4~120 4~120 4~120 4~120
    Internal Dimensions [mm] Ø300×485 Ø400×630 Ø400×720 Ø400×830
    Housing Dimensions W×D×H [mm] 445×445×900 485×485×1120 485×485×1190 485×485×1290
    Basket Dimensions [mm] Ø280×340 Ø360×230 Ø360×270 Ø360×230
    Number of Baskets [pc] 1 2 2 3
    Shanghai Boxun Medical Biological Instrument Corp., founded in 1996, formerly known as Shanghai Boxun Industry & Commerce Co.,Ltd., professionally manufactures laboratory apparatus and medical equipment. It is a modern enterprise which gathers design, produce, develop, sale and serve as an integral whole, and it is a member of Shanghai Medical Instrument Trade Association. Our company has obtained ISO9001.
    Our products include test chamber, autoclave, drying oven, incubator, clean bench, bio safety cabinet and water bath, etc. They are widely applicable in the fields of pharmaceuticals, sanitary and antiepidemic, environmental protection, agriculture and research, etc.
    In past more than twenty years, our company operates its business with the management philosophy of “customer first, service forever”. We are proud of the supporting with our perfect quality of products and timely service systems. And we sell our products to all parts of the country and overseas.
    Today, we improve the functions of products with humanization design on the production experience of generation product. Our company will supply you one-stop distribution project of laboratory equipment and medical apparatus, then our products can meet the higher requirements of experiments for you.
