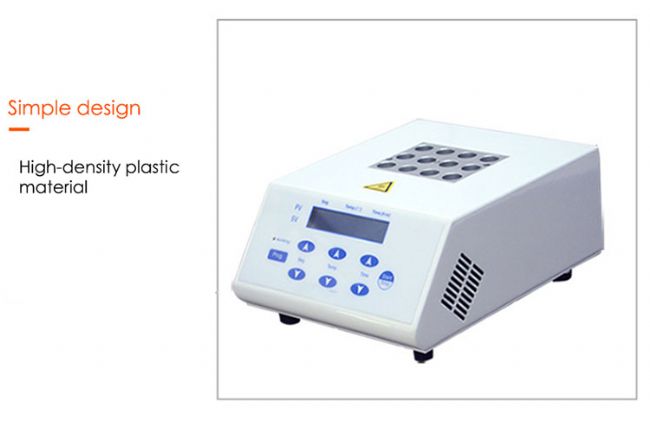

Lab Dry Bath Sample Nitrogen Concentrator
Specification
|
Model |
MD200-1 |
MD200-2 |
|
Temprature range |
RT+5~150℃ |
RT+5~150℃ |
|
Time setting |
1min-100h |
1min-100h |
|
Temprature stability@40℃ |
±0.3℃ |
±0.3℃ |
|
Display precision |
0.1℃ |
0.1℃ |
|
Heating time (20℃ to 100℃) |
≤15min |
≤15min |
|
Nitrogen pressure |
≤0.1MPa |
≤0.1MPa |
|
Nitrogen flow rate |
0 ~10L/min |
0 ~10L/min |
|
Air needle length |
150mm |
150mm |
|
Sample handling capacity |
1 Standard module |
2 Standard module |
|
Size&Weight(H*W*D) |
255×200 ×540 （mm）-6.5kg |
285×220×540（mm）-8kg |
|
Power |
AC220V,50Hz,200W |
AC220V,50Hz,400W |
|
Standard module |
12 hole*16.5mm |
24 hole*16.5mm |
|
Optional module： |
LC06,LC07,LC08 or 10.5mm*12孔 |
LC06*2,LC07*2,LC08*2 or 10.5mm*24 hole |
|
Programming function： |
5groups |
5groups |
|
Air cooling function： |
Yes |
Yes |
Option Module
|
4 Type Optional Module for high temp. 150℃ |
REMARKS： module aperture size or centrifuge tube specification |
|
01 |
6mm*42 hole |
|
02 |
7mm*42 hole |
|
03 |
10mm *20 hole |
|
04 |
12mm *20 hole |
|
05 |
13mm *20 hole |
|
06 |
15.5mm *12 hole (fit in Sample Concentrator） |
|
07 |
16.5mm *12 hole (fit in Sample Concentrator） |
|
08 |
19.5mm *12 hole (fit in Sample Concentrator） |
|
10 |
26.5mm *6 hole |
|
11 |
28.5mm *4 hole |
|
12 |
40.5mm *2 hole |
|
13 |
0.5ml*42 hole |
|
14 |
1.5ml*24 hole |
|
15 |
2.0ml*24 hole |
|
16 |
0.2ml*48 hole |
|
17 |
0.2ml*96 hole( fit in Double module high tempratrue dry bath） |
|
18 |
10.5mm *12 hole (fit in Sample Concentrator） |
-
