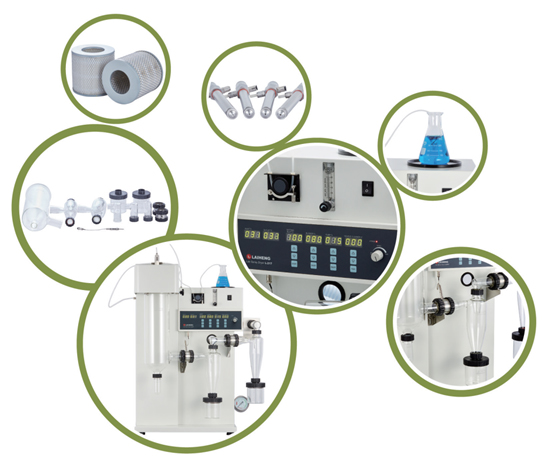

Laboratory Mini Lab Spray Dryer
Spray drying technology is a drying method with rapid development and wide application range in the drying field. It is widely used in many industries such as food, pharmacy, petroleum, chemical industry, bioengineering, new materials, new energy, etc.
Advantages of spray drying:
The drying conditions remain constant, and the characteristics of the dried sample remain constant
◆ High flexibility in experimental operations and wide range of sample processing capacity
The experimental process is continuous, stable, and controllable throughout the entire process
◆ Wide range of applicable samples, suitable for both thermosensitive and non thermosensitive materials; Drying of aqueous solutions and organic solvents
The raw material liquid can be a solution, emulsion, paste or melt, etc.
The small spray dryer uses a two fluid nozzle to disperse the sample solution into droplets. The droplets in the drying tower directly contact with the hot air to take away the moisture (or other liquids) in the sample, so as to achieve the purpose of drying. The waste gas is separated from the sample powder through the cyclone separator. The sample powder is retained in the main receiving bottle, and the waste gas is discharged through the outlet filter.

Working principle
The high-performance spray dryer is widely applicable to all solutions, such as emulsions and suspensions. It can also dry some heat sensitive substances, such as biological products, biological pesticides, enzyme preparations, food, etc. Thermally sensitive substances evaporate instantly in the drying tower, and the surface temperature of the droplets is not high, so these active materials can still maintain their active ingredients unchanged after drying.
Application:
Medicine |
Food/Beverage/Feed |
Chemical/Materials
Petroleum/Mineral Resources |
Other industries |
Drug activity analysis
Drug capsules
Inhalation drugs
vaccines |
Food additives
Food Nutrients
cellulose
protein
probiotics
Juice Concentrate
dairy
spice |
Nanometer material
catalyzer
Battery
Accumulator
ceramic material
Pigment
coating
glue |
Embedding cells
Biologically active enzyme
Biotransformation
Cosmetics
Environmental Applications
Petroleum product derivatives
Mineral extract |

Product Features
Economically efficient
The drying process is efficient and convenient, quickly obtaining experimental results, and effectively shortening the optimization time of sample formula (maximum drying capacity ≥ 1.5L/h);
The experimental results can directly guide large-scale industrial production;
Save samples, a small amount of samples can be used to complete the experiment (minimum sample size 30ml);
The sample recovery rate reaches 80%, equipped with a secondary recovery device, which can further increase by 10% to 15%;
The particle size distribution of the sample is uniform;
Reasonable design
The organization structure is reasonable and efficient, and the length to diameter ratio of the drying tower conforms to the principle of two fluid nozzles;
Quick installation design, single person installation and disassembly, easy to clean after experimentation;
Internal circulation negative pressure design to prevent pollution and personnel injury caused by gas leakage;
Automatic nozzle cleaning device, which can set the time for automatic cleaning or manual cleaning;
Built in magnetic stirrer to improve the pumping efficiency of suspensions and emulsions;
Safe and portable
Environmental detection device within the system to ensure experimental safety;
Using glass components to monitor experimental progress at any time;
The LED screen buttons are intuitive to operate, and the technical parameters are displayed clearly and easily adjustable
Standard mobile base for easy instrument operation and movement.
Technical Parameter
Drying capacity |
≥ 1500ml/h (aqueous solution) |
Drying time |
1.0-1.5s |
Set temperature |
≤ 220 ℃ |
Heating and temperature control accuracy |
± 1 ℃ |
Dry gas flow rate |
≤ 35m3/h |
Compressed air flow rate |
≤ 1200L/h 5-8 bar |
Nozzle diameter |
0.7mm (optional 1.0mm/1.4mm/2.0mm) |
Magnetic stirring |
stirring capacity 20-3000ml; Mixing speed: 0-1600rpm infinitely adjustable; |
Power supply voltage |
220V/50Hz |
Whole machine current |
≤ 16A |
Whole machine power |
≤ 3000W |
Host dimensions |
850 * 775 * 1005mm (L * W * H) |
Host weight |
55Kg |
Dimensions of mobile base |
680 * 510 * 510mm (L * W * H) |
Mobile base weight |
20kg |
Applicable samples |
Aqueous solution/organic solvent |
Negative pressure gauge for environmental detection within the system |
Available |
Body Material |
Steel Plate Spray Coating |
Heating system |
Stainless steel |
Spray nozzle needle |
Automatic |
Mobile device |
Level 2 whirlwind |
Clean conditions |
Excellent |
Instrument application |
Hygiene and cleaning requirements |
Corrosion resistance |
General |
Configure |
Spray dryer LW-217 host |
1 set |
glassware |
1 set |
0.7mm nozzle |
1pc |
imported filter |
1pc |
export filter |
1pc |
oil-free diaphragm air compressor |
1Set |
movable machine base |
1Set |
Optional |
High-efficiency air inlet filter 99.8% |
