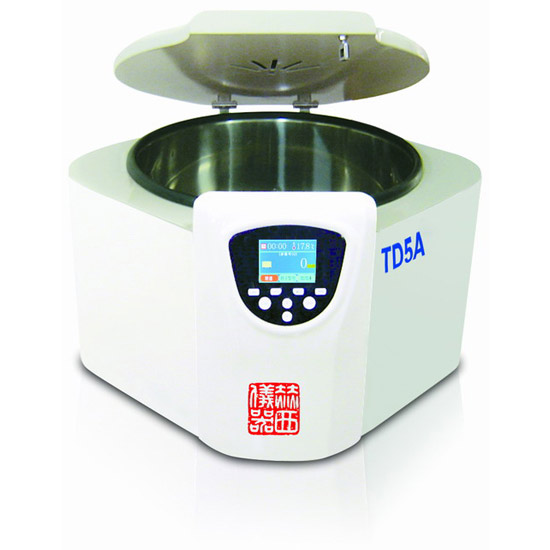

TD5A bench top low speed centrifuge,HereXi_specification/price/image

Product Detail
Company Profile

product details

Herexi's classic best-selling model, with a variety of tube racks and adapters, used for clinical testing and laboratory analysis.

Max Centrifugal force RCF : 4800xg
Max Speed(r/min): 5500
PIN: TD5A
Brand: Herexi
Product unit: set
Weight: 35Kg

This series is widely applied in experiments and scientific researches of various fields such as biochemistry,genetic engineering,forestry science,food safety,blood stations,clinical test,etc.

Main Features:
Micro-controller and high-torque brushless motor provide stable operation and low noise.

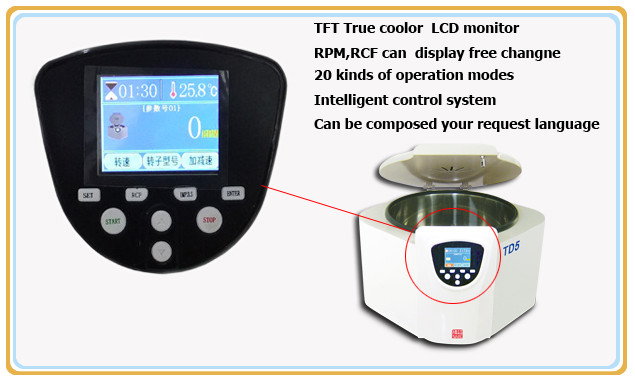

TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, special damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
With mechatronic motor door lock.
Can store 20 sets of user-defined programs Can be customized according to demand
Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, can centrifuge various MTP micro-plates, PCR plates, cell plates.
With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification

Specification
Model	TD5A
Max speed（r/min）	5500
Max RCF（×g）	4800
Max capacity	4×250 ml
Time range	0-99h59min
Operation programme	20
Control and drive system	Frequency motor，micro control，direct drive
Total power	500 w
Noise	≤60dB
Power	AC220V 50Hz
Weight	35 Kg
Dimension（L×W×H）	600×540×360 mm

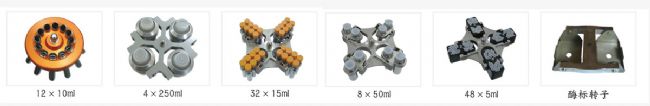

Model	Capacity	TD5A
Model	Capacity	Max speed（r/ min）	Max RCF（×g）
Angle rotor	12×10/15 ml	5500	3382
Swing bucket rotor
	24×10 ml	5000	4500
	4×250 ml	4000	3290
Swing bucket rotor	4×50 ml	5000	4600
	4×100 ml	5000	4800
	8×50 ml	4000	2810
	32×15 ml	4000	2810
	32×15 ml	4000	2810
	32×10 ml	4000	2810
	48*5ml(tube)	4000	2960
	48×5 ml/2 ml （vacuum tube）	4000	2940
	76×5 ml/2 ml vacuum tube	4000	3100
Swing micro-plate rotor	2×2×96 hole	4000	2360
