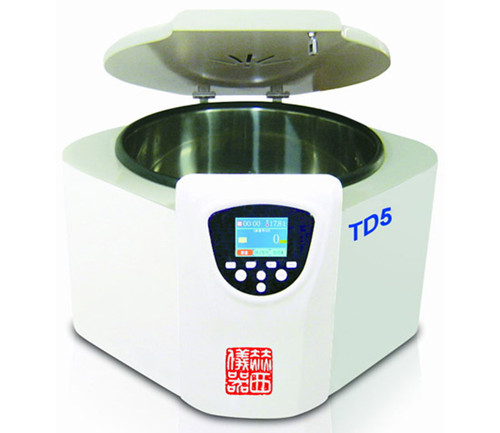

Herexi's classic best-selling model, with a variety of tube racks and adapters, used for clinical testing and laboratory analysis.
Max Centrifugalforce: 4×250ml
Max Speed(r/min): 5000
Max RCF: 4800xg
PIN: TD5
Brand: Herexi/OEM
Product unit: set
Weight: 35Kg
Main Features
Micro-controller and high-torque brushless motor provide stable operation and low noise.
TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, special damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
With mechatronic motor door lock.
Can store 20 sets of user-defined programs Can be customized according to demand.
Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, can centrifuge various MTP micro-plates, PCR plates, cell plates.
With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification
Specifications:
| Model | TD5 |
| Max speed（r/min） | 5000 |
| Max RCF（×g） | 4800 |
| Max capacity | 4×250 ml |
| Time range | 0-99h59min |
| Operation programme | 20 |
| Control and drive system | Frequency motor，micro control，direct drive |
| Power | 500 w |
| Noise | ≤60 dB |
| Power | AC220V 50Hz |
| Weight | 35 Kg |
| dimension（L×W×H） | 600×540×360 mm |
| Model | Capacity | TD5 | |
| Max Speed | Max RCF | ||
| Swing bucket rotor | 4×250ml | 4000 | 2780 |
| 24×10/15ml | 4000 |
2960 |
|
| 8×50ml | 4000 |
2960 |
|
| 32×15ml | 4000 |
2960 |
|
| 32×10ml | 4000 |
2960 |
|
| 4×50ml | 5000 | 4600 | |
| 4×100ml | 5000 | 4800 | |
| 48×5ml/2ml(vacuum tube) | 4000 | 2940 | |
| 76×5ml/2ml（vacuum tube） | 4000 | 3100 | |
| Swing micro-plate rotor | 2x2x96 hole | 4000 | 2360 |
-
Herexi Instrument & Equipment Co.,Ltd. is a modren hi-tech incorporated enterprise, is specialized in research and development and providing complete laboratory instrument & equipment. The company high-manager and technologist team took part in drawing national science instrment development program of the National “Fifth Five Plan” to “Seventh Five Plan”, and joined to stipulate for the Standard of High Speed Refrigerated Centrifuge.
Herexi Instrument & Equipment Co.,Ltd is only warranty dealer to act as an agent of Hongkong Herexi Company in China upcountry of lots of OEM lab instrument. We had development the first Herexi 3HRI serise High Speed Refrigerated Centrifuge. It is national famouse product, the technology keep ahead in the world.
Presently, we proveding 6 series and 40 variety products, including High Speed Refrigerated, large-capacity, low-speed and refrigerated, low-speed and Herexi 3HRI series intellectualized Centrifuge.
Over past 30 years, "Herexi Instrument"'s quality products have served hi-tech areas covering war industry, scientific research, colleges and universities, centre blood sationes, hospitals, bioproducts, pharmacy, argriclture science, environment protect reserch and petrochemical ect...
We have a excellent reserch and producting team, superior lines of machinery and processing technologies, complete products testing equipment.
We have experienced team to provide our customers with the service on lab layout, formula developing, technical consultancy.
Our Mission: to meet our customers needs any time any where, to provide best solution to our customers with most suitable instrument, innovative techniques and perfect service.
With commitment to credit,we have obtained a large share of Chinese market,at the same time, won the support and trust from our clients.
Dedicated to the mission of helping our customers spend money in a wiser way and utilize instrument more efficiently, we will unswervingly continue along the path of pushing Chinese instrumental industry to conform to international standards..
