ultrasonic cell disruptor  Product description:

Ultrasonic homogenizer is an ultrasonic cavitation in liquid effects versatile, multi-purpose instrument. It can be used a variety of animals and plants, viruses, cells, bacteria and tissue broken, but can be used to emulsification, separation, homogenization, extraction, anti-foaming, clear, Nanomaterials, distributed and speed up chemical reactions. Instrument is widely used in biology, microbiology, physics, zoology, agriculture, pharmaceuticals, chemicals, sewage treatment, nano-materials and other fields.


Main features:
 Large screen LCD.

 Microcomputer control, can store 50 groups of work data.

 Timer set up to 999 minutes

 ultrasonic time, ultrasonic power can be set.
 automatically detect ultrasonic power to prevent the ultrasonic power with the sample   temperature change.
 Integrated temperature control to prevent overheating of the sample.
 frequency automatic tracking, automatic fault alarm


SJIA-1200W main technical parameters:
Frequency :20-25KHz, automatic frequency tracking
Ultrasonic Power: 1200W
Accompany: Φ20
Optional tip(probe): Φ15, Φ25
Crushing Capacity :50-1000ml
Duty Cycle: 0.1-99.9%
Power supply: 220/110 50Hz/60Hz
Work environment: Indoor (no moisture, no sunlight, no corrosive gas)

Warranty: 1 year, horn parts subject to wear their warranty period of three months.

POWER SUPPLY: 220-240V 50/60HZ ,or 110-115V 50/60HZ;

Standard configuration: SJIA-1200W includes a 25mm probe and sound abating chamber.
Optional probe:Φ15, Φ25mm,

probe choose reference as follow's

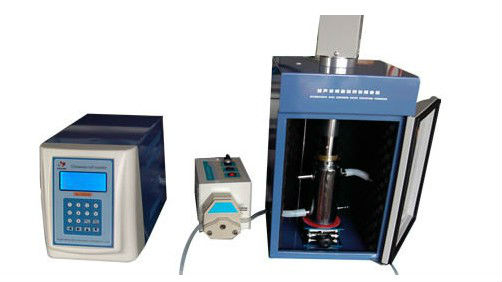

model SJIA-1200W can be upgrade Continuous Flow Ultrasonic Homogenizer

continuous cell flow

Features:

FULL AMPLITUDE CONTROL

Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.

PROGRAMMABILITY

Parameters including processing times, pulse on/off and power output ,it can be saved to memory and run by the touch of a button.This new system can restore more than 50 custom program.

PULSE MODE

Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.

AUTO TUNING

The Sonicator digitally tracks frequency changes in the

 converter/ tip assembly caused by load and temperature

changes and maintainelectrical efficiency at all times.

Manual tuning is unnecessary.

TEMPERATURE MONITORING

An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limitis reached, sonication shuts down toprevent overheating

Application:

Biological / Biotech

Sonication is an ideal tool for lysing bacteria, yeast and tissue cells for the extraction of protein,DNA, RNA, and cellular components. DNA shearing (ChIP Assay) is a very common application.

Pharmaceutical

Cell disruption is common in analytical, quality control, and R & D labs to perform numerous functions from mixing and degassing of analytical samples, to cracking open tablets for dissolution tests. Liposomes and emulsions are easily formed by Sonication for microencapsulation purposes in the production of creams and lotions.

Chemical

Sonication accelerates both physical and chemical reactions, creating new fields of research.Major advances in sonochemistry include chemical synthesis of catalysts and new alloys, catalyzing organo-metallic reactions, micro-encapsulation of protein and hydrolyzing esters. The use of sonication provides greater yields, increases overall efficiency, and saves energy.

Industrial

Industrial uses include forming emulsions, catalyzing reactions, extracting compounds, and reducing particle size. Continuous, in-line Flocells and special ultrasonic horns are available for processing larger volumes. Sonication is being used in the Paint and Pigment industry to disperse dyes and inks and in the Ceramic industry to degas slips and create denser castings.

Environmental

Sonication is used by environmental testing labs to process soil and sediment samples.Sonication takes just 8-10 minutes per sample versus 4-18 hours by soxhlet extraction, it uses half the solvent and improves contaminant yields. Both single and dual horn systems are available.  If the sample load is high, then a Dual Horn system is recommended because it allows you to process two samples simultaneously.
