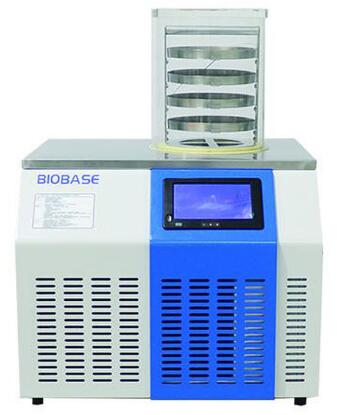

BK-FD12 /18 Series Vacuum Freeze Dryer-Upright
Purpose:
The machine is suitable for freeze drying test of laboratory biomedical samples.
Series:

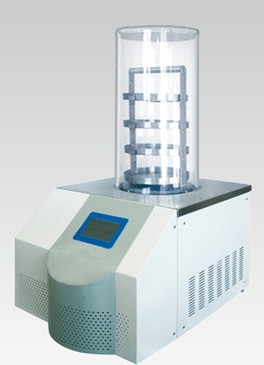

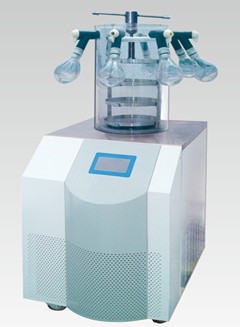

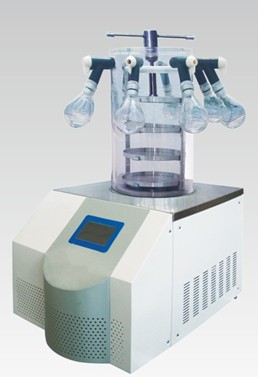

The product has 4 series: Standard(S), Top-press(T), Multi-pipeline(P) and top-press(PT).
Specification:
The LCD display panel can display drying curve, cold trap temperature, running time, vacuum degree, etc;
Large capacity Ice condenser trap and without coil inside, it can be used for samples pre-freeze function;
Cascade refrigeration technology, famous brand compressor which is low noise, large cooling capacity;
The pre-freeze shelf can be used as guide barrel to speed up the drying rate;
Ice condenser trap and operation panel are made by stainless steel, corrosion-resistant and easy to clean;
Drying cabinet is visual and safe, which is easy to check the drying procedure;
The sample shelves are stainless steel, which can be adjustable as per the requirement;
Valve with Nitrogen is optional
|
Model
|
BK-FD12S
|
BK-FD12T
|
BK-FD12P
|
BK-FD12PT
|
|
|
Ice Condenser Temp（℃）
|
0.625
|
|
|
Vacuum Degree（Pa）
|
<10
|
|
|
Freeze Drying Area（m2）
|
0.12~0.18
|
0.075
|
0.12~0.18
|
0.075
|
|
|
Water Capture Capacity（Kg/24h）
|
4
|
4
|
4
|
4
|
|
|
Material Loading Capacity（ml）
|
1200~1800
|
750
|
1200~1800
|
750
|
|
|
Material Loading Capacity/shelf（ml）
|
300
|
250
|
250
|
250
|
|
|
Tray specification（ф*h mm）
|
200*20
|
180*20
|
180*20
|
180*20
|
|
| |
|
Quantity of Tray
|
4~6
|
3
|
4~6
|
3
|
|
|
Freeze drying time（h）
|
24
|
|
|
Multi-Pipeline and bottles（unit）
|
/
|
/
|
8
|
8
|
|
|
bottle ф20
|
260
|
165
|
165
|
165
|
|
|
bottle ф18
|
480
|
285
|
285
|
285
|
|
|
bottleф12
|
920
|
560
|
560
|
560
|
|
|
Exterior dimension(W*D*H)mm
|
480*655*915/1345
|
|
|
|
|
|
|
|
|
|
Model
|
BK-FD18S
|
BK-FD18T
|
BK-FD18P
|
BK-FD18PT
|
|
|
Ice Condenser Temp（℃）
|
0.625
|
|
|
Vacuum Degree（Pa）
|
<10
|
|
|
Freeze Drying Area（m2）
|
0.18~0.27
|
0.12
|
0.18~0.27
|
0.12
|
|
|
Water Capture Capacity（Kg/24h）
|
6
|
6
|
6
|
6
|
|
|
Material Loading Capacity（ml）
|
1800-2700
|
900
|
1800-2700
|
900
|
|
|
Material Loading Capacity/shelf（ml）
|
450
|
300
|
300
|
300
|
|
|
Tray specification（Diameter*h mm）
|
240*20
|
200*20
|
200*20
|
200*20
|
|
| |
|
Quantity of Tray
|
4~6
|
3
|
4~6
|
3
|
|
|
Freeze drying time（h）
|
24
|
|
|
Multi-Pipeline and bottles（unit）
|
/
|
/
|
8
|
8
|
|
|
bottle 20
|
360
|
270
|
270
|
270
|
|
|
bottle 18
|
740
|
555
|
555
|
555
|
|
|
Bottle 12
|
1320
|
990
|
990
|
990
|
|
|
Exterior dimension(W*D*H)mm
|
560*660*955/1470
|
|
