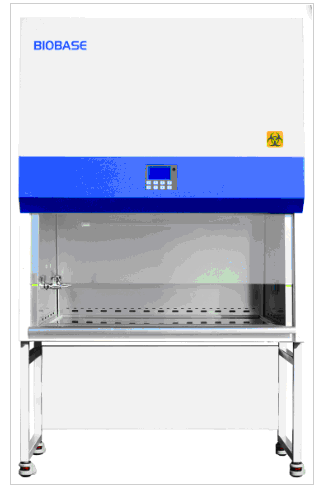

NSF certified biosafety cabinet(4’),BIOBASE_specification/price/image

Product Detail
Company Profile

1. VFD Display
Compared with LED, LCD, it shall demonstrate various colors with high bright, even in the evening. It shall work no less than 30, 000 hours continually.
2. Negative pressure plenum surrounds contaminated positive pressure plenum; No fabric bags are used.
3. One-piece removable worksurface easy to clean.
4. optional adjustable base stand, height range:635-845mm.
5. Filter, Blower and Fluorescent lamp working time check.

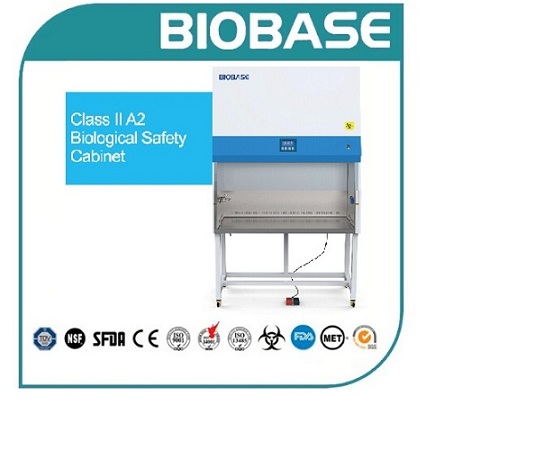

NSF certified biosafety cabinet(3’&6’)

Advantage:

1.large LCD display,you can find all information on the screen.

2.optional adjustable base stand, height range:635-845mm.

3. One-piece removable worksurface easy to clean.

Models		11235BBC86 ( 3')	11228BBC86 ( 4')	11236BBC86 ( 6')
External Size(Upper Body) (W x D x H)		1100x740x2380mm 43.3''x29.1''x93.7''	1421x850x2180mm 55.9''x33.4''x85.8''	1886×750×2335 74.3''x29.5''x91.9''
Internal Size (W x D x H)		914x600x610mm 36''x23.6''x24''	1220x665x650mm 48''x26.1''x25.6''	1700x600x610mm 66.9''x23.6''x24''
Base stand		adjustable height, range:630mm-845mm
Max Opening		450mm
Tested Opening		Safety height≤200mm ( 8'')
Average Airflow Velocity		inflow: 0.53±0.025 m/s (105 fpm) downflow:0.35±0.025 m/s (70 fpm)
Airflow Volume	inflow	349 m3 / h (205 cfm) 61%:550 m3 / h (323 cfm) 39% :349 m3 / h (205 cfm)	465 m3 / h (275 cfm) 67%:956 m3 / h (571 cfm) 33% :465 m3 / h (275 cfm)	649 m3 / h (382 cfm) 61%:1006 m3 / h (592 cfm) 39% :649 m3 / h (382 cfm)
	downflow
	exhaust
HEPA Filter		Efficiency >99.999% for particle size at 0.3 microns
Noise		NSF 49≤61 dB/EN 12469≤58 dB
Fluorescent Lamp Intensity		≥850Lux
Material		working area: 304stainless steel and outside Decorative plate
		Frame :cold-rolled steel with anti-bacteria powder coating
Motor		one ECM motor
		speed adjustable, high efficiency and low consumption, 110V & 220V acceptable
Glass Window		manual	motor control	manual
Display		LCD	VFD	LCD
UV		30W germicidal UV lamp
		emission of 253.7 nanometers for most efficient decontamination
waterproof Socket		2 , total consumption 500W(Max)
Tap		*Air tap1; Water tap1*
Filter Guard Type		Aluminium Alloy
Ground resistance		< 0.10 Ω
Consumption		260w	400w	300w
Electrical		AC220V/110V,50Hz/60HZ, Full load Amps:9A, BTU/Hr. 1689	AC110V,60HZ, Full load Amps:9A, BTU/Hr. 1689	AC220V-110V,50Hz/60HZ, Full load Amps:9A, BTU/Hr. 1689
Standard Accessory		one spare UV lamp, 5m Power cord, fuse tube(six),power key
*package size (WDH )*		1250x915x1890(mm)	1600x1050x1870mm	2040x915x1920(mm)
Gross weight(kg)		280	330	380
