Small laboratory Lyophilizer freeze dryer
- Product Detail
- Company Profile
- Small laboratory Lyophilizer freeze dryer
- 7-inch color LCD touchscreen with a Chinese/English interface, displaying sample temperature, cold trap temperature, vacuum level, and other operating parameters in curves and numbers;
- Ergonomically tilted control panel for better user experience;
- Large-opening cold trap with imported brand compressor, providing powerful cooling and stable performance;
- Historical data query and export function, storing nearly one month's worth of historical data for easy reference and comparison;
- Optional Equipment: Nitrogen charging valve interface; oil mist filter; cold trap defrosting function; vacuum pump anti-oil backflow device.
Freeze-drying Principle:
Freeze-drying is a drying method that involves pre-freezing water-containing items and then sublimating the water under vacuum to obtain dried items. Freeze-dried items are easy to preserve for long periods and can be restored to their pre-freeze-drying state and retain their original biochemical properties upon rehydration.
Application Field:
It is widely used in laboratory, biopharmaceutical, medical, and food industries.

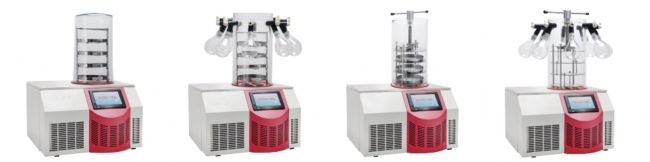

Basic Series Of Laboratory Freeze Dryer
Specifications
| Model | KMFD-10S | KMFD-10P | KMFD-10T | KMFD-10PT | |
| Cold trap temperature (°C) | ≤-60(under environment 10°℃～25°℃,unload) | ||||
| Vacuum level (Pa) | <10 | ||||
| Freeze-drying area (m²) | 0.12-0.18 | 0.09 | |||
| Water capture capacity (kg/24h) | 3 | ||||
| Material loading (ml) | 1200-1800 | 900 | |||
| Tray specification (φ*h mm) | 200*20 | ||||
| Tray number | 4-6 | 3 | |||
| Vials | φ22mm | 260 | 195 | ||
| Φ16mm | 480 | 360 | |||
| Φ12mm | 920 | 690 | |||
| Dimension (W^D'H)mm | 600*540*374/820 | 600*540*374/880 | |||
-
KAIMINA TECHNOLOGY Integrated of manufacturing R&D and sales of equipments on synthesis reaction, mixing and separation, evaporation and fermentation etc. Our products are mainly used in chemical industry, pharmaceutical, hydrometallurgy, food, new materials, new energy, environmental protection and other fields.
The company adheres to the principle of "customer first, service first, product first", with professional processing equipment, scientific and reasonable production technology, excellence in manufacturing requirements, strict quality control system and perfect after-sales service, and the purpose of win-win cooperation. Provide professional and high-quality products and services to every customer.
Our company currently has two specialized production and processing bases, and has carried out in-depth cooperation with Tsinghua University, Zhejiang University, Central South University, Sichuan University, Chongqing University, Tianjin University, Chinese Academy of Sciences and many other universities, continuously improving our capabilities of R&D and equipment application .
