AELAB Melting Point Apparatus Series
- Product Detail
- Company Profile
- Pharmaceutical raw material identification
- Active pharmaceutical ingredient testing
- Purity and consistency evaluation of crystalline materials
- Incoming material inspection in pharmaceutical production
- Chemical compound characterization
- Organic synthesis and research applications
- Quality control of powders and solid substances
- University chemistry and pharmaceutical laboratory training
- Comparison of experimental results with reference values
- Routine batch-to-batch quality assessment
- Multiple instrument configurations for routine and advanced melting point testing
- Digital, touchscreen, microscope-assisted and video-analysis options
- Solutions for pharmaceutical, chemical, research and educational laboratories
- Different observation methods according to laboratory workflow
- Model-selection assistance based on sample and testing requirements
- Technical specifications and quotation support before purchase
- International supply and export packaging support
- Power supply and configuration support according to destination requirements where available
AELAB supplies melting point apparatus for pharmaceutical quality control, chemical analysis, raw material inspection, research laboratories, universities and industrial testing applications.
The available range includes digital melting point devices, visual observation systems, microscope-assisted instruments and advanced touchscreen melting point analyzers. Different models are available for routine testing, precision measurement, automatic observation and laboratory data evaluation.
Customers can compare AELAB melting point apparatus according to temperature range, measurement accuracy, heating rate control, sample capacity, observation method, display system and required level of automation.
Explore digital, touchscreen, microscope-assisted and video-analysis melting point testing systems available from AELAB.
What Is a Melting Point Apparatus?
A melting point apparatus is a laboratory instrument used to determine the temperature range at which a solid sample changes from a solid state into a liquid state. The result can help laboratories evaluate material identity, purity, consistency and compliance with an established testing method.
In a typical test, a small quantity of powdered sample is placed inside a capillary tube. The sample is heated at a controlled rate while the operator or optical detection system observes the melting process. The initial melting temperature and the temperature at which the sample becomes completely liquid may then be recorded.
Accurate melting point measurement depends on controlled heating, correct sample preparation, suitable capillary filling, stable observation and an appropriate heating rate near the expected melting point.
Available Melting Point Apparatus Types
| Instrument Type | Typical Use |
|---|---|
| Digital Melting Point Apparatus | Routine determination of melting temperature using digitally controlled heating and temperature display. |
| Visual Melting Point Tester | Manual or assisted observation of sample behavior through an integrated viewing area. |
| Microscope-Assisted Melting Point Device | Detailed observation of small samples and phase changes under magnification. |
| Touchscreen Melting Point Analyzer | Convenient operation, test setting, result display and data review through an integrated touchscreen interface. |
| Video-Analysis Melting Point Apparatus | Enhanced observation, recording and evaluation of the melting process using an optical or video-based system. |
| Multi-Sample Melting Point System | Testing multiple capillary samples during the same operating cycle, depending on the selected instrument. |
Typical Applications
Laboratories That Use Melting Point Testers
Raw material, formulation and quality control laboratories.
Identification and characterization of synthesized or supplied compounds.
Material analysis, compound development and scientific research.
Teaching laboratories and academic research projects.
Third-party analysis of pharmaceutical and chemical samples.
Routine evaluation of solid raw materials and finished compounds.
Typical Melting Point Measurement Process
1. Sample Preparation
The solid sample is dried when required and ground into a fine, uniform powder according to the laboratory method.
2. Capillary Filling
A small amount of sample is introduced into a suitable capillary tube and packed to a consistent height.
3. Instrument Setup
The expected temperature range, heating program and observation settings are selected.
4. Controlled Heating
The instrument heats the sample, with a slower heating rate generally used near the expected melting temperature.
5. Melting Observation
The operator, microscope, camera or optical system observes the beginning and completion of melting.
6. Result Recording
The melting range and relevant test information are recorded for comparison, reporting or quality-control evaluation.
How to Select the Right Melting Point Apparatus
The correct instrument should be selected according to the sample type, expected melting temperature, required accuracy, laboratory workload and preferred observation method. Laboratories should also consider whether manual observation is sufficient or whether microscope, video or automatic detection functions are needed.
| Selection Factor | Questions to Consider |
|---|---|
| Temperature Range | What is the expected melting temperature of the samples, and what maximum instrument temperature is required? |
| Temperature Accuracy | What level of measurement accuracy and repeatability is required by the laboratory method? |
| Heating Rate Control | Does the method require adjustable heating rates or slower heating near the melting range? |
| Observation Method | Will the result be observed manually, through a microscope, by camera or through automatic optical analysis? |
| Sample Capacity | How many capillary samples should be tested during one measurement cycle? |
| Display and Controls | Is a basic digital display sufficient, or is a touchscreen operating interface preferred? |
| Video or Image Recording | Does the laboratory need to review or document the sample transformation visually? |
| Data Management | Are test storage, result export, printing or connection to external systems required? |
| Laboratory Workload | Will the instrument be used occasionally for research or routinely for high-volume quality control? |
| Applicable Test Method | What sample preparation, capillary dimensions, heating program and reporting procedure are specified by the laboratory method? |

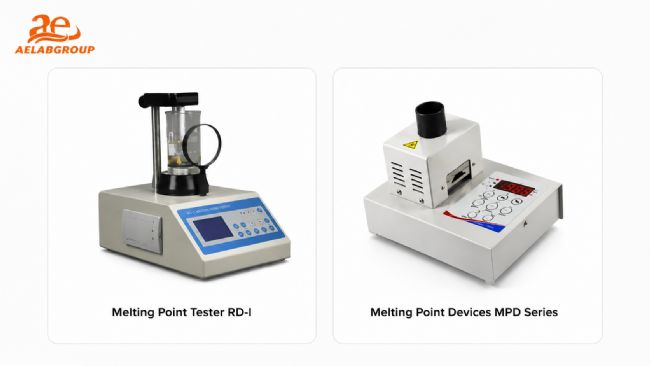

Representative AELAB Melting Point Product Families
A series of melting point instruments intended for laboratory measurement of solid samples. Available configurations may differ in temperature control, sample capacity, display and operating functions.
A laboratory melting point testing solution suitable for observing the thermal behavior of capillary samples under controlled heating conditions.
Designed for laboratories requiring enhanced visual observation and analysis of the melting process through an integrated video-based operating concept.

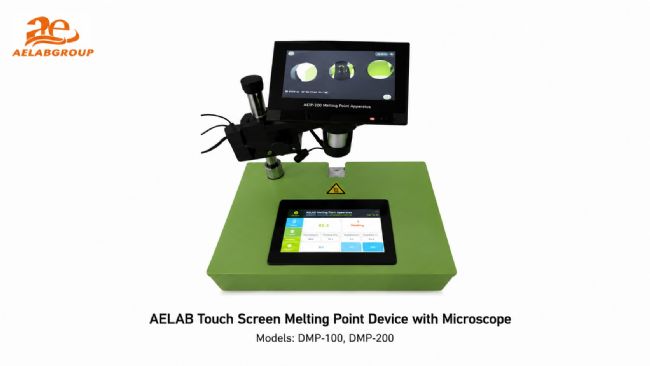

Combines touchscreen operation with magnified sample observation for users who require a clearer view of phase changes during testing.
Touchscreen melting point systems developed for convenient parameter setting, temperature monitoring and laboratory testing workflows. Available functions should be confirmed according to the selected model.
View the complete AELAB melting point apparatus range, available models and technical specifications
Why Choose AELAB Melting Point Apparatus?
AELAB is a laboratory equipment brand and supplier based in Guangzhou, China. AELAB provides analytical instruments, pharmaceutical testing equipment, general laboratory systems and quality-control solutions for distributors, universities, research organizations and industrial customers worldwide.
The AELAB product portfolio includes pharmaceutical testing instruments, analytical equipment, laboratory heating and temperature-control systems, environmental testing instruments, sample preparation equipment and laboratory support solutions.
Official website: www.aelabgroup.com
Frequently Asked Questions
What does a melting point apparatus measure?
It measures the temperature or temperature range at which a solid sample begins to melt and becomes liquid under controlled heating conditions.
Why is melting point testing important in pharmaceutical laboratories?
Melting point measurement can support the identification, purity evaluation and consistency testing of pharmaceutical raw materials and solid chemical compounds.
What is the difference between manual and automatic melting point testing?
Manual systems depend mainly on operator observation, while advanced systems may use a camera, microscope, video analysis or optical detection to assist with observation and result evaluation.
Why is the heating rate important?
A suitable heating rate helps the sample and temperature sensor remain in thermal equilibrium. Excessively fast heating near the melting point may influence the observed result.
Can several samples be tested at the same time?
Selected melting point apparatus can accommodate multiple capillary samples. The exact sample capacity should be confirmed from the specifications of the chosen model.
Does AELAB offer microscope or video-based systems?
The AELAB category includes microscope-assisted and video-analysis melting point solutions. Available functions vary according to the selected product series.
How should a sample be prepared for testing?
The sample is normally prepared as a fine, uniform powder and packed consistently into a suitable capillary tube according to the selected laboratory method.
Can AELAB recommend a suitable model?
Yes. Provide the expected temperature range, required accuracy, sample capacity, observation preference, application and destination country so the AELAB team can recommend suitable options.
Tell the AELAB technical sales team your sample type, expected melting temperature, required accuracy, number of capillary samples, preferred observation method and laboratory application.
A suitable proposal can include available models, technical specifications, optional functions, accessories, estimated delivery time, packaging and shipping information.
