- Flow-type peristaltic pump BT-150F/400F
Model: 150F, 400F
Reference Flow Rate:
150F: 0.0013ml/min~140ml/min
400F: 0.0013ml/min~390ml/min
Features: 3.0-inch high-definition touch LCD screen, compact size, beautiful interface, easy operation, real-time display of operating parameters and status such as flow rate and rotation speed.
Features
Operating Modes: Flow Mode, Timer Mode, Quantitative Mode
Flow Mode allows setting either speed or flow rate; Timer and Quantitative modes can be executed repeatedly.
Calibration Function: Multiple flow calibration methods.
Online Adjustment: Adjust flow rate during operation.
Prompt Function: Displays the settable flow rate range based on the set parameters.
External Control: Supports external start/stop function; level or pulse mode selectable.
External Speed and Flow Control Function: 0-5V, 0-10V, 4-20mA, 0-10KH and other external input signals control speed and flow rate.
Communication Function: Supports 485 communication control.
Specifications
Speed Range: 0.1-150rpm
Quantitative Range: Optional 0.1uL-9999.999uL, ml, L, mg, g, kg
Timing Range: 0.1s-6553.5min or hr
Backflow Parameter: Angle: 0-999°
External Speed Control: 0-5V, 0-10V, 4-20mA, 0-10KHz, achieving linear speed adjustment
RS485: Address settable and on-screen display, baud rate 9600 bps
Status Output: Start/Stop, Direction
Applicable Power Supply: AC 100~240V 50~60Hz
Operating Environment: Temperature: 0-40℃, Humidity: 20%-85% RH, non-condensing
Protection Rating: IP31
Dimensions: 156x118x130mm
| Driver | Application pump head | Application hose | Reference flow rate |
| 150F | F154 | 13#,14#，19#,16#,25# | 0.0048~140ml/min |
| F156 | 13#,14#，19#,16#,25# | 0.0039~85ml/min | |
| TH15 | 13#,14#，19#,16#,25# | 0.006~260ml/min | |
| 400F | F154 | 13#,14#，19#,16#,25# | 0.0048~390ml/min |
| F156 | 13#,14#，19#,16#,25# | 0.0039~230/min |

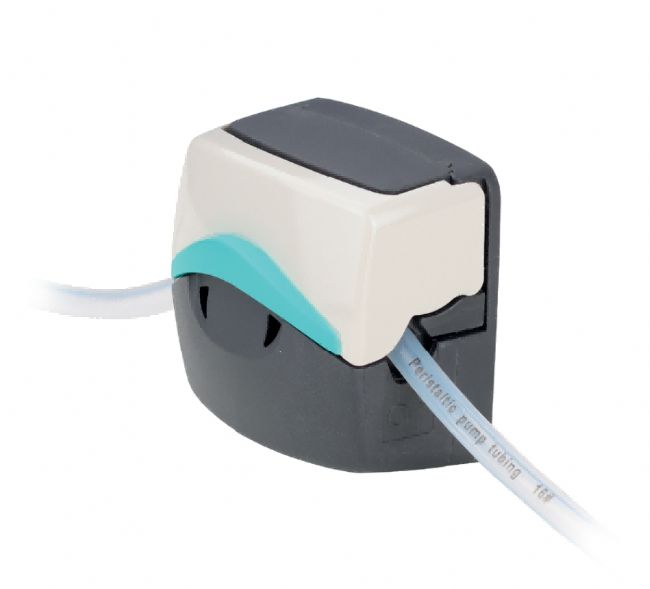

Pump head instroduction of flow-type peristaltic pump
Model: F154,F156
Reference Flow Rate: 0.0048ml/min~560ml/min,
0.00013ml/min~230ml/min
Compact size, stable flow rate, easy and quick hose replacement; 6-roller design for less pulsation.
Features
Applicable Speed: F154, continuous operation ≤400rpm, intermittent operation ≤600rpm; F156 ≤ 400rpm
Flip-top design for easy hose replacement
Elastic compression hose for long hose life
F154 roller pump head for higher flow rate, F156 roller pump head for even lower pulsation
Resistant to acid and alkali corrosion
Small size, high flow rate
| Model | Pump body material | Roller material | Roller number | Application hose | Rotary speed (rpm) | Max.Flow (ml/min) |
Weight（kg) |
| F154 | IXEF | PET+TX | 4 | 13#，14#， 19#，16#，25# |
≤600rpm | 560 | 0.18 |
| F156 | 6 | ≤400rpm | 230 | 0.18 |
-
