- Sterile Tube Welding Machine
Aseptic takeover machine is a fully automatic device used for aseptic connection of TPE pipelines outside laminar flow safety cabinets. Applied to automatic aseptic connection of disposable components, aseptic connection of culture medium storage bags and bioreactors, etc.
Product Features
▪ Multi tube diameter connection function, one instrument can achieve full-size connection, pipe support replacement is simple and fast, the instrument automatically recognizes and executes the corresponding pipeline connection program
1/8″ * 1/4″, 1/4″ * 3/8″, 1/4″* 7/16″, 3/8″ * 5/8″, 1/2″* 3/4″, 3/4″ * 1″
▪ Significant takeover performance
The connection is firm and reliable, approximately equivalent to the mechanical strength of the pipeline body, with few burrs on the inner wall and a height of less than 0.3mm
▪ Easy to operate and safe
Support default takeover program, automatically running according to the corresponding size of pipe tray placed; Support custom temperature and takeover time;
Fully automatic takeover, supporting liquid takeover
Equipped with unexpected shutdown recovery function
▪ A comprehensive verification system and documentation
Temperature correction function to improve system stability;
Equipped with user management, password management, permission management, log and data export functions

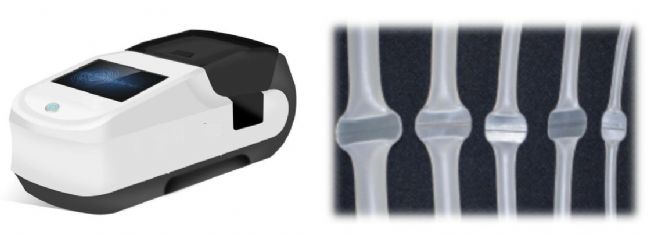

1.1 Instrument Appearance
Based on the existing takeover machine, modify the appearance and dimensions
1.2 Technical Parameters
Size/weight
| Name | Technical Specifications | Remark |
| Size | Length：595 mm Width：256 mm High：303 mm |
|
| Weight | ≤ 20 Kg | Excluding outer packaging box |
Computer
| Name | Computer | Remark |
| System | Embedded Control System | |
| screen | Type: Touch screen Size: 7 inches |
Power/environmental indicators
| Name | Technical Specifications | Remark |
| voltage | AC220V±10% 50/60HZ 300W | |
| Overtemperature Protection | Have | |
| Operating temperature | 18-30℃ | |
| Humidity | 65% RH |
Performance metrics
| Name | Technical Specifications | Remark |
| Suitable for pipeline size | 1/8″*1/4″、1/4″*3/8″、1/4″*7/16″、3/8″*5/8″、1/2″*3/4″、3/4″*1″Need to replace the corresponding pipe bracket; | |
| Takeover status | Support liquid connection, both ends of the pipeline need to be clamped with hemostatic forceps in advance | |
| Minimum takeover length | 200mm | |
| Automatic takeover | YES | |
| temperature correction | Have | |
| anti-pinch function | Have | |
| cooling method | Air cooling | |
| user management | Have | Up to 100, including admin |
| Authority management | Five level authority | Administrator permissions cannot be edited |
| Logging function | USB export | USB partition format requirement: FAT32 interface requirement: USB 3.0 or above |
| Storage data volume | 100000 | |
| storage method | Up to 500 | 10 series, with 50 in each series; The actual purchase portion of the order shall prevail; Need to be used in conjunction with pipe supports |
| takeover time | 2~3.5min | |
| language | Chinese/English |
pressure resistance
After sealing the pipe, cut it open from the dividing line, keep a length of 15cm, cool for 10 minutes, and some pipes can be cooled for 5 minutes. Use 1 bar to press for 60 seconds, and if there are no bubbles at the welding point, it is qualified
Test sample: CFLEX 374 pipeline gamma irradiation 25Kgy
Tensile performance
| Pipeline model | Tensile performance |
| 1/8″*1/4″ | 47N |
| 3/16″*5/16″ | 52N |
| 1/4″*3/8″ | 63.2N |
| 1/4″*7/16″ | 104.8N |
| 3/8″*5/8″ | 300N |
| 1/2″*3/4″ | 320N |
| 5/8″*7/8″ | 367.2N |
| 3/4″*1″ | 388N |
Factory default method
Built in C-Flex 374, AdvantaFlex method
The factory test includes the following pipelines by default
C-Flex 374 series 1/8″ * 1/4″, 1/4″ * 3/8″, 1/4″ * 7/16″, 3/8″ * 5/8″, 1/2″ * 3/4″, 3/4″* 1″, including wet heat irradiation treatment pipeline exchange and docking
Pipe bracket accessories
Configure according to contract requirements
Appearance corrosion resistance standard
| No | TYPE | active ingredient | Concentration |
| 1 | ethanol | ethanol | 75% |
| 2 | isopropanol | isopropanol | 70% |
| 3 | Compound quaternary ammonium salt | Benzalkonium chloride, polyhexamethylene biguanide, didecyldimethylammonium chloride, etc., with a total quaternary ammonium salt concentration of over 0.3% | |
| 4 | hydrogen peroxide | hydrogen peroxide | 6% |
| 5 | Peracetic acid | Peracetic acid | 0.5% |
-
