    Disposable Connector Type

    Connectoraccessories are developed and generated for the biopharmaceutical industry,suitable for pipeline connections and liquid transmission. In order to meetvarious needs such as rapid and flexible pipeline assembly, filter assembly,tank connection, liquid dispensing, etc., We has launched high-quality andreliable joint accessory products, which can be adapted to different hose innerdiameters in various forms

    Biosafety:

    Material Contact liquid (YES/NO) USP<88> USP<87> ISO 10993-4 TSB/BSE USP<788> USP<85> Extractable substance
    PP √ √ √ √ √ √ √ √
    PVDF √ √ √ √ √ √ √ √
    Silicone √ √ √ √ √ √ √ √
    PA × × × × × × × ×
    PE √ √ √ √ √ √ √ √
    HDPE √ √ √ √ √ √ √ √
    PC √ √ √ √ √ √ √ √

    Instructions for use
    Material Gamma irradiation High-temperature sterilization Transparency Max operating temperature
    PP √ √ translucent 125℃
    PVDF √ √ opaque 140℃
    Silicone √ √ transparent 180℃
    PA √ √ opaque 125℃
    PE √ × transparent 70℃
    HDPE √ × opaque 70℃
    PC √ √ transparent

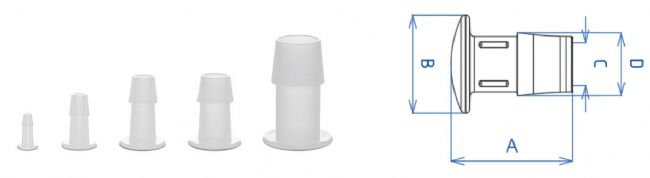

    Hose Plug
    Art.No Product Name Size information（mm） Material pack/pcs
    A B C D
    FPPE000 1/8 "HB Hose plug 15.6 8.6 1.5 4.5 PP 500
    FPPH000 1/4 "HB Hose plug 24.4 15 3.9 7.6 PP 500
    FPPK000 3/8 "HB Hose plug 26.3 19.6 6.7 10.8 PP 200
    FPPS000 1/2 "HB Hose plug 28.2 22.4 9.8 14.4 PP 200
    FPPX000 3/4 "HB Hose plug 38.4 30 16 21.7 PP 100

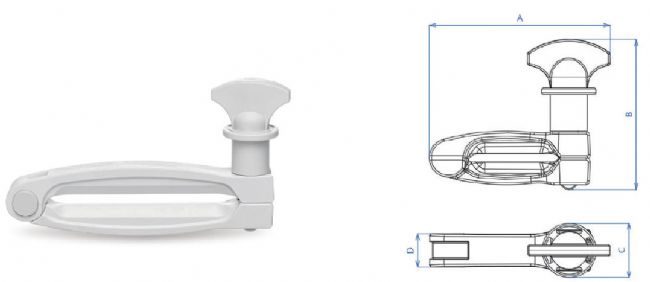

    Hose Clamp
    Art.No Product Name Size information（mm） Material pack/pcs Applicable Hose range（in）
    A B C D
    XTBCCEX Pipe clamp 87.5 72.5 26.2 16 PA 30 OD1/4 "-OD1 "，wall≥3/32 "
    XTBCC38 Pipe clamp
         		 133.5 74.5 26.2 22 PA 30 OD1/2"-OD1 "，wall≥1/8 "

    Sealing Clip
    Art.No Product Name Size information（mm） Material PKG/pcs
    A B C
    XPFC210 210mm Sealing clip 261.3 41.3 12 PA 20pack/pcs
    XPFC300 300mm Sealing clip 360.8 41.3 12 PA 15pack/pcs

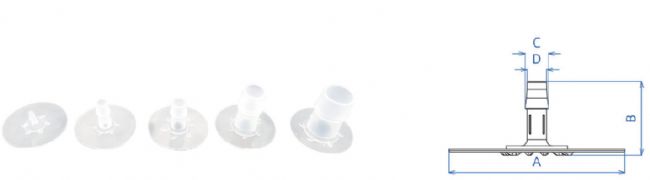

    Disc Connector
    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C D
    PD1E 1/8 "HB Single side disc connector 57.5 18.3 5 3.6 PE 100
    PD1H 1/4"HB Single side disc connector 57.5 24 7.6 6.4 PE 50
    PD1K 3/8 "HB Single side disc connector 57.5 30.6 10.8 9.5 PE 50
    PD1S 1/2 "HB Single side disc connector 57.5 32.6 14.4 12.7 PE 50
    PD1X 3/4 "HB Single side disc connector 57.5 46.2 21.7 19.1 PE 50
    PD1Y 1 "HB Single side disc connector 57.5 47.5 28 25.4 PE 30

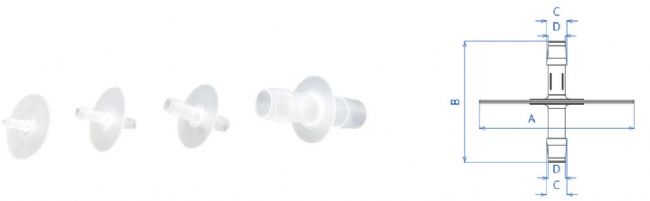

    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C D
    PD2H 1/4"HB Two side disc connection 57.5 45 7.6 6.4 PE 50
    PD2K 3/8 "HB Two side disc connection 57.5 58.1 10.8 9.5 PE 150
    PD2S
                    		 1/2 "HB Two side disc connection 57.5 62.1 14.4 12.7 PE 150
    PD2Y 1 "HB Two side disc connection 57.5 92.1 28 25.4 PE 50

    Wedge-shaped connection
    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C D E
    BP1E 1/8"HB BP1 Wedge-shaped connection 24 18 5 2.8 10 PE 500
    BP1H 1/4"HB BP1 Wedge-shaped connection 3.5 18 8.9 5.1 10 PE 400

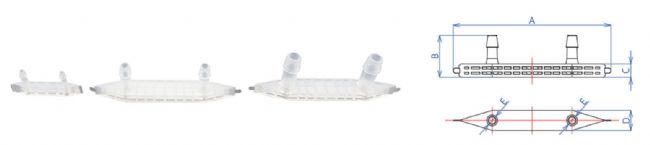

    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C D E
    BP3E0E 1/8"-1/8" HB BP3 Wedge-shaped connection 54 24 10 6 2.8 PE 200
    BP3H0H 1/4"-1/4" HB BP3 Wedge-shaped connection 111.8 31.5 10 15 5.3 PE 50
    BP3K0K 3/8"-3/8" HB BP3 Wedge-shaped connection 111.8 39.5 10 15 7.6 PE 50
    BP3S0S 1/2"-1/2" HB BP3 Wedge-shaped connection 111.8 39.5 10 15 10.3 PE 50

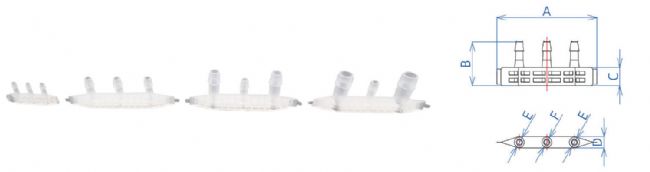

    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C D E F
    BP3EEE 1/8"-1/8"-1/8" HB BP3 Wedge-shaped connection 54.5 23.9 10 6 5.3 5.5 PE 200
    BP3HHH 1/4"-1/4"-1/4" HB BP3 Wedge-shaped connection 111.6 31.5 10 15 5.3 5.3 PE 50
    BP3KHK 3/8"-1/4"-3/8"HB BP3 Wedge-shaped connection 111.6 39.5 10 15 7.6 5.3 PE 50
    BP3SHS 1/2"-1/4"-1/2" HB BP3 Wedge-shaped connection 111.6 39.5 10 15 10.3 5.3 PE 50

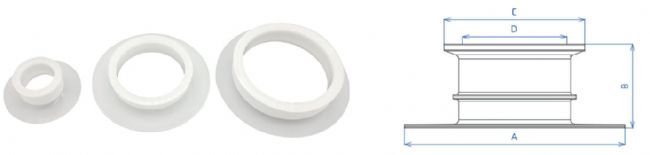

    Feeding Port
    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C D
    PTPT TC50 Feeding port 84 30 50.5 35.5 HDPE 20
    PTP2 2"Feeding port 100 38 63.9 47.5 HDPE 50
    PTP3 3" Feeding port 133.8 38.5 91.6 74.6 HDPE 30
    PTP4 4" Feeding port 151 30 119 97.8 HDPE 20
    PTP6 6" Feeding port 200 60 166.9 146.9 HDPE 8
    PTP8 8" Feeding port 248 68.5 217.7 197.6 HDPE 4

    Art.No Product Name Size information（mm） Material Pack/pcs
    A B C
    BPP2 2"TC Powder feeding port 63.9 28 47.5 HDPE 20
    BPP3 3"TC Powder feeding port 91.6 28 74.1 HDPE 30
    BPP4 4"TC Powder feeding port 119 28 99.2 HDPE 20
    BPP6 6"TC Powder feeding port 166.9 32 146.9 HDPE 10
    BPP8 8"TC Powder feeding port 217.7 32 197.6 HDPE 6
