Disposable connector type
Disposable connector type
Place of Origin:
China
Brand:
COSTONES
Model:
Two way connection，Y-shaped connection，T-shaped connection，Cross connection，Ruhr connector
Supplier:
SUZHOU COSTONE INSTRUMENT CO., LTD.
Price:
Hits:
17
Updated:
1/22/2026
Related Products | Other Products | Related Suppliers
  • Product Detail
  • Company Profile
    Disposable connector type
    Connector accessories are developed and generated for the biopharmaceutical industry, suitable for pipeline connections and liquid transmission. In order to meet various needs such as rapid and flexible pipeline assembly, filter assembly, tank connection, liquid dispensing, etc., We has launched high-quality and reliable joint accessory products, which can be adapted to different hose inner diameters in various forms
    Biosafety:
    Material Contact liquid (YES/NO) USP<88> USP<87> ISO 10993-4 TSB/BSE USP<788> USP<85> Extractable substance
    PP √ √ √ √ √ √ √ √
    PVDF √ √ √ √ √ √ √ √
    Silicone √ √ √ √ √ √ √ √
    PA × × × × × × × ×
    PE √ √ √ √ √ √ √ √
    HDPE √ √ √ √ √ √ √ √
    PC √ √ √ √ √ √ √ √

    Instructions for use
    Material Gamma irradiation High-temperature sterilization Transparency Max operating temperature
    PP √ √ translucent 125℃
    PVDF √ √ opaque 140℃
    Silicone √ √ transparent 180℃
    PA √ √ opaque 125℃
    PE √ × transparent 70℃
    HDPE √ × opaque 70℃
    PC √ √ transparent

    Connector
    There are various types of connector accessories, including multi way barbed connectors, straight through equal diameter connectors, straight through variable diameter connectors, three-way T-shaped and Y-shaped equal diameter connectors, three-way T-shaped and Y-shaped variable diameter connectors, four-way equal diameter connectors, etc. The size range is wide, with barbed specifications ranging from 1/16 "to 1", which can meet the different needs of customers to the greatest extent possible.

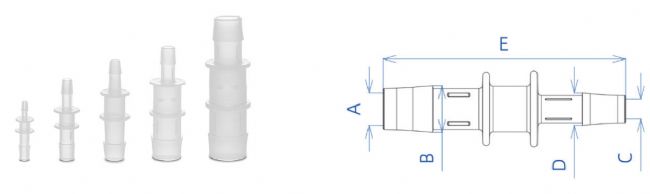

    Two way connection
    Art.No Product Name Size information（mm） Material pcs/pack
    A B C D E PP PVDF
    FPLEE00*** 1/8 "HB Equal diameter two-way connection 1.7 4.5 1.7 4.5 26.2 √ √ 400
    FPLHH00*** 1/4 "HB Equal diameter two-way connection 4.4 7.6 4.4 7.6 50.5 √ √ 400
    FPLKK00*** 3/8 "HB Equal diameter two-way connection 7.6 10.8 7.6 10.8 58.4 √ √ 100
    FPLSS00*** 1/2 "HB Equal diameter two-way connection 11 14.4 11 14.4 67.3 √ √ 100
    FPLXX00*** 3/4 "HB Equal diameter two-way connection 16 23.1 16 23.1 100.2 √ √ 40
    FPLHE00*** 1/4 "-1/8 "HB  Reducing two-way connection 4.4 7.6 1.7 4.5 41 √ √ 400
    FPLHG00*** 1/4 "-3/16 "HB  Reducing two-way connection 4.4 7.6 3.2 6.3 43.6 √ √ 200
    FPLKE00*** 3/8 "-1/8 "HB  Reducing two-way connection 7.6 10.8 1.7 4.5 45.3 √ √ 200
    FPLKH00*** 3/8 "-1/4 "HB  Reducing two-way connection 7.6 10.8 4.4 7.6 56.1 √ √ 100
    FPLSH00*** 1/2 "-1/4 "HB  Reducing two-way connection 11 14.4 4.4 7.6 62.3 √ √ 100
    FPLSK00*** 1/2 "-3/8 "HB  Reducing two-way connection 11 14.4 7.6 10.8 64.9 √ √ 100
    FPLXS00*** 3/4 "-1/2 "HB  Reducing two-way connection 16 21.7 11 14.4 79.5 √ √ 40
    Note: IfPPMaterial is required, replace the item number with PP***
    If PVDFmaterial is required, replace the item number with PVDF***

    T-shaped connector
    Art.No Product Name Size information（mm） Material pcs/pack
    A B C D E F G PP PVDF
    FPTEEE0*** 1/8 "HB  T-shaped equal diameter three-way connection 1.7 4.5 1.7 4.5 1.7 4.5 28.6 √ √ 400
    FPTHHH0*** 1/4 "HB  T-shaped equal diameter three-way connection 4.4 7.6 4.4 7.6 4.4 7.6 49.6 √ √ 200
    FPTKKK0*** 3/8 "HB  T-shaped equal diameter three-way connection 7.6 10.8 7.6 10.8 7.6 10.8 54.5 √ √ 100
    FPTSSS0*** 1/2 "HB  T-shaped equal diameter three-way connection 11 14.4 11 14.4 11 14.4 67 √ √ 50
    FPTXXX0*** 3/4 "HB  T-shaped equal diameter three-way connection 16 23.1 16 23.1 16 23.1 100.2 √ √ 20
    FPTKKH0*** 3/8 "-1/4 "HB  T-shaped reducing tee connection 4.4 7.6 7.6 10.8 7.6 10.8 58.5 √ √ 100
    FPTKKS0*** 3/8 "-1/2 "HB  T-shaped reducing tee connection 11 14.4 7.6 10.8 7.6 10.8 65 √ √ 100
    FPTSSK0*** 1/2 "-3/8 "HB  T-shaped reducing tee connection 7.6 10.8 11 14.4 11 14.4 67.1 √ √ 50
    Note: IfPPMaterial is required, replace the item number with PP***
    If PVDFmaterial is required, replace the item number with PVDF***

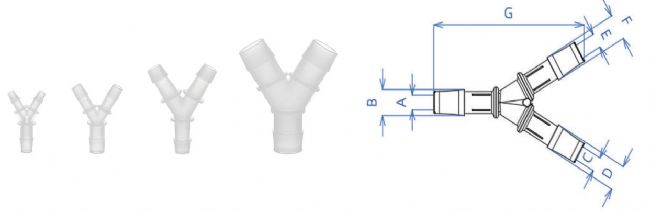

    Y-shaped connection
    Art.No Product Name Size information（mm） Material pcs/pack
    A B C D E F G PP PVDF
    FPTBBB0*** 1/16 "HB  Y-shaped equal diameter connection 1.0 2.3 1.0 2.3 1.0 2.3 28.6 √ √ 500
    FPTEEE0*** 1/8 "HB  Y-shaped equal diameter connection 1.7 4.1 1.7 4.1 1.7 4.1 49.6 √ √ 400
    FPTGGG0*** 3/16 "HB  Y-shaped equal diameter connection 3 6.2 3 6.2 3 6.2 54.5 √ √ 50
    FPTHHH0*** 1/4 "HB  Y-shaped equal diameter connection 4.3 7.6 4.3 7.6 4.3 7.6 67 √ √ 200
    FPTKKK0*** 3/8 "HB  Y-shaped equal diameter connection 7.5 10.8 7.5 10.8 7.5 10.8 100.2 √ √ 100
    FPTSSS0*** 1/2 "HB  Y-shaped equal diameter connection 10.9 14.4 10.9 14.4 10.9 14.4 58.5 √ √ 50
    FPTHEE0*** 1/4 "-1/8 "HB  Y-shaped reducing connection 5 9 2.2 4.8 2.2 4.8 36.4 √ √ 200
    FPTKHH0*** 3/8 "-1/4 "HB  Y-shaped reducing connection 7.5 12.4 5 9 5 9 54.5 √ √ 100
    FPTSKK0*** 1/2 "-3/8 "HB  Y-shaped reducing connection 10.6 15.6 7.6 12.4 7.6 12.4 65.4 √ √ 100
    Note: IfPPMaterial is required, replace the item number with PP***
    If PVDFmaterial is required, replace the item number with PVDF***

    Cross connection
    Art.No Product Name Size information（mm） Material pcs/pack
    A B PP PVDF
    FPXEEEE*** 1/8 "HB Equal diameter cross connection 2.2 4.8 √ √ 400
    FPXHHHH*** 1/4 "HB Equal diameter cross connection 5 9 √ √ 100
    FPXKKKK*** 3/8 "HB Equal diameter cross connection 7.2 12.4 √ √ 50
    FPXSSSS*** 1/2 "HB Equal diameter cross connection 10.3 15.6 √ √ 40
    FPXXXXX*** 3/4 "HB Equal diameter cross connection 16 23 √ √ 20
    Note: IfPPMaterial is required, replace the item number with PP***
    If PVDFmaterial is required, replace the item number with PVDF***

    Ruhr connector
    Art.No Product Name Size information（mm） Material pcs/pack
    A B C PP
    FPLEM00 1/8 "HB Male  Luer connector 5 23.8 11.2 √ 500
    FPLEF00 1/8 "HB Female Luer connector 5 22.7 11.2 √ 500
    FPLHF00 1/4 "HB Male  Luer connector 8.9 30.2 11.2 √ 500
    FPLHM00 1/4 "HB Female Luer connector 8.9 31.3 11.2 √ 500
    FPLDM00 3/32 "HB Male  Luer connector 3.5 18.6 11.2 √ 400
    FPLDF00 3/32 "HB Female Luer connector 3.5 17.5 11.2 √ 400
    FPPM000 Male  Luer connector 3.91 9.8 11.2 √ 400
    FPPF000 Female Luer connector 4.3 8.7 11.2 √ 500
