Disposable sanitary grade TC connection
Disposable sanitary grade TC connection
Place of Origin:
China
Brand:
COSTONES
Model:
25mmTC，50mmTC
Supplier:
SUZHOU COSTONE INSTRUMENT CO., LTD.
Price:
Hits:
10
Updated:
1/22/2026
Related Products | Other Products | Related Suppliers
  • Product Detail
  • Company Profile

    Disposableconnector type

    Connectoraccessories are developed and generated for the biopharmaceutical industry,suitable for pipeline connections

    and liquid transmission. In order to meetvarious needs such as rapid and flexible pipeline assembly, filter assembly,tank connection, liquid dispensing, etc., We has launched high-quality andreliable joint accessory products, which can be adapted to different hose innerdiameters in various forms

    Biosafety:

    Material Contact liquid (YES/NO) USP<88> USP<87> ISO 10993-4 TSB/BSE USP<788> USP<85> Extractable substance
    PP √ √ √ √ √ √ √ √
    PVDF √ √ √ √ √ √ √ √
    Silicone √ √ √ √ √ √ √ √
    PA × × × × × × × ×
    PE √ √ √ √ √ √ √ √
    HDPE √ √ √ √ √ √ √ √
    PC √ √ √ √ √ √ √ √

    Instructions for use

    Material Gamma irradiation High-temperature sterilization Transparency Max operating temperature
    PP √ √ translucent 125℃
    PVDF √ √ opaque 140℃
    Silicone √ √ transparent 180℃
    PA √ √ opaque 125℃
    PE √ × transparent 70℃
    HDPE √ × opaque 70℃
    PC √ √ transparent

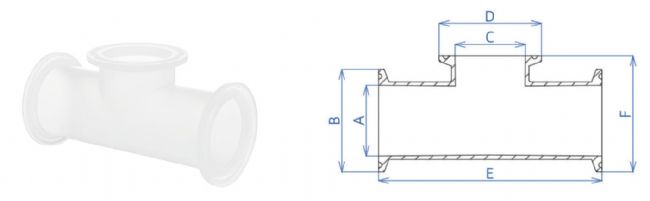

    Instrumentthree-way connection

    Inorder to meet the demand of customers for real-time monitoring of pressurevalues during the production process, pressure instrument tees and diaphragmgaskets have

     been introduced, which can be matched with various pressure gaugesto achieve real-time monitoring

    Art.No Product Name Size information（mm） Material pcs/pack
        A B C D E F PP
    FPTCCC0 25mmTC Three way connection 15.7 25 15.7 25 80 40.5 PP 30
    FPTCCT0 50mmTC Three way connection 15.7 25 50.5 50.5 80 41.7 PP 30
    FPTTTT0 50mmTC Three way connection 34.8 50.5 50.5 50.5 110 57.2 PP 30

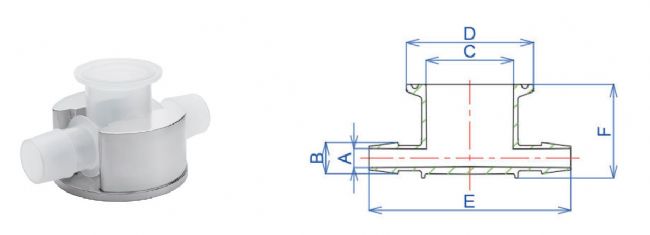

    Three way diaphragm gasket
    Art.No Product Name Size information（mm） Material pcs/pack
    A B C D E F PP
    FPTKKT0 50mmTC Instrument three-way connection 7.6 12.4 34.8 50.5 80 37.2 PP 30
    FPGTTS0 50mmTCInstrument three-way connection 11 15.6 34.8 50.5 81 42.3 PP 30
    FPTYYT0 50mmTCInstrument three-way connection 22 28.6 34.8 50.5 120 58 PP 10

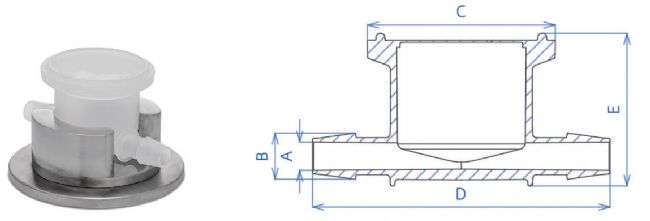

    Integrated instrument three-way connection
    Art.No Product Name Size information（mm） Material PKG/pcs
    A B C D E PP
    FPGTKKDS 50mmTC-3/8 " Three way connection of diaphragm instrument 7.6 12.4 50.5 41 80 PP 10pcs/pack
    FPTSSSDS 50mmTC-1/2 " Three way connection of diaphragm instrument 11 15.6 50.5 46.1 81 PP 10pcs/pack
    FPGTYYDS 50mmTC-1" Three way connection of diaphragm instrument 22 28.6 50.5 61 120 PP 10pcs/pack

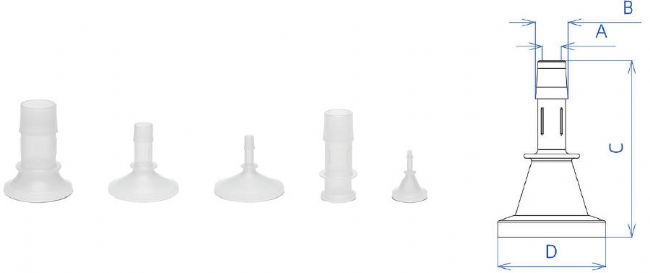

    Chuck connection
    There are rigorous physical functional tests, including sealing test, pressure resistance test (20.6MPa), tangential torque test, burst test, high-pressure steam sterilization test, flow pressure difference test, and pipeline connection strength test, fully confirming that the product performance meets various application conditions
    Art.No Product Name Size information（mm） Material   PKG/pcs
        A B C D PP PVDF
    FPLCE00*** 25mm-1/8 "HB TC Connector 2.2 4.7 34 25 √ √ 200
    FPLCH00*** 25mm-1/4 "HB TC Connector 4.4 7.6 40.5 25 √ √ 200
    FPLCK00*** 25mm-3/8 "HB TC Connector 7.6 10.8 45.5 25 √ √ 100
    FPLCS00*** 25mm-1/2 "HB TC Connector 11 14.1 48.5 25 √ √ 100
    FPLCX00*** 25mm-3/4 "HB TC Connector 15 21.7 63.1 25 √ √ 50
    FPLBTH00*** 50mm-1/4 "HB TC Connector 4.6 7.6 40.5 50.5 √ √ 50p
    FPLTK00*** 50mm-3/8 "HB TC Connector 7.6 10.8 45.5 50.5 √ √ 50
    FPLTS00*** 50mm-1/2"HB TC Connector 11 14.4 48.5 50.5 √ √ 50
    FPLTX00*** 50mm-3/4 "HB TC Connector 16.4 21.7 63.1 50.5 √ √ 40
    FPLTY00*** 50mm-1 "HB TC Connector 22.8 28 64.5 50.5 √ √ 30
    FPLTC00*** 50mm-25mmHB TC Connector 25 15.8 50.5 50.5 √ √ 20

    Note: IfPPMaterial is required, replace the item number with PP***
    If PVDFmaterial is required, replace the item number with PVDF***

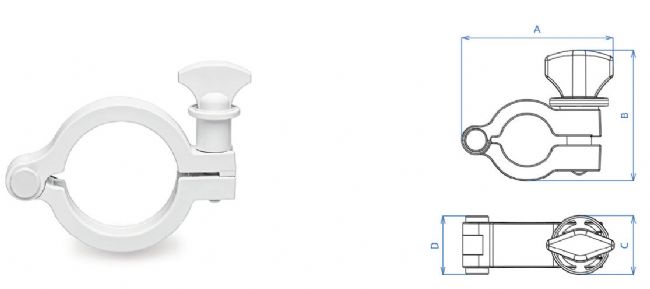

    TC Clamps

    Art.No Product Name Size information（mm） Material PKG/pcs
    A B C D
    KG-301 25mmTC Quick-release clamp 62 53.5 24.1 23.9 PA 30
    KG-401 50mmTC Quick-release clamp 105.2 89.5 26.2 18.6 PA 20
    XTCCN2 2″TC Quick-release clamp 123.8 94.5 26.2 23.4 PA 10
    XTCCN3 3″TC Quick-release clamp 147.1 109.7 26.2 23.4 PA 10
    XTCCN4 4″TC Quick-release clamp 178.5 122.9 26.2 23.4 PA 20
    XTCCN6 6″TC Quick-release clamp 246.4 151.0 26.2 26.2 PA 10
    XTCCN8 8″TC Quick-release clamp 302.4 176.2 26.2 26.2 PA 6

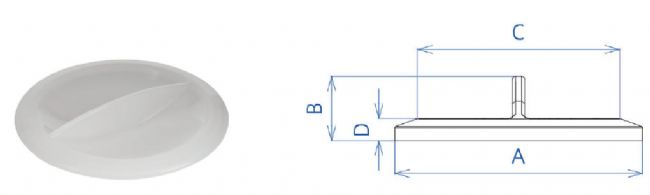

    Blind flange
    Art.No Product Name Size information（mm） Material PKG/pcs
    A B C D
    LID-102 25mmTC Blind flange 25 12.8 19.8 4.6 PP 400
    LID-202 50mmTC Blind flange 50.5 13.1 41.2 4.5 PP 100
    FPC2000 2″TC Blind flange 63.9 13 56 4.5 PP 50
    FPC3000 3″TC Blind flange 91 18 73.8 6.0 PP 30
    FPC4000 4″TC Blind flange 119 24.2 103.1 5.8 PP 30
    FPC5000 6″TC Blind flange 166.8 17.6 154.8 8 PP 20
    FPC6000 8″TC Blind flange 218 24.4 193.6 7.9 PP 10

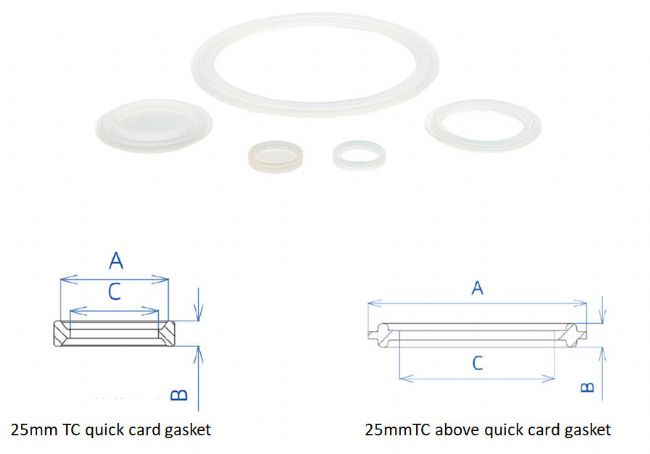

    Clamp sealing gasket
    Art.No Product Name Size information（mm） Material PKG/pcs
    XTCGSC 25mmTC  Clamp sealing gasket 22 4.6 16 Silicone 400 pack/pcs
    XTCGST 50mmTC Clamp sealing gasket 50.5 5.5 35.8 Silicone 200 pack/pcs
    XTCGS2 2″TC Clamp sealing gasket 63.9 5.5 48.6 Silicone 100 pack/pcs
    XTCGS3 3″TC Clamp sealing gasket 91.6 5 82.5 Silicone 100 pack/pcs
    XTCGS4 4″TC Clamp sealing gasket 119 5.5 97.8 Silicone 50 pack/pcs
    XTCGS6 6″TC Clamp sealing gasket 166.9 5.5 145.7 Silicone 50 pack/pcs
    XTCGS8 8″TC Clamp sealing gasket 217.7 5.5 197.5 Silicone 20 pack/pcs

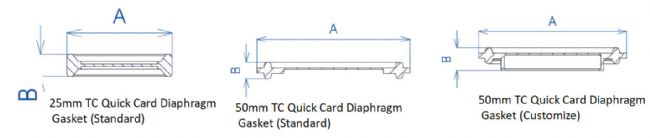

    Diaphragm clamp sealing gasket
    Art.No Product Name Size information（mm） Material PKG/pcs
    XTCDSC 25mmTC 22 4.6 Silicone 500 pack/pcs
    XTCDSTS 50mmTC 50.5 5.5 Silicone 100 pack/pcs
    XTCDST 50mmTC 50.5 7.8 Silicone 100 pack/pcs
