The ND Freeze Dryer Machine Laboratory adds heating to the N-series, accelerating the drying process, saving energy, and providing heating curve settings with a variety of drying solutions for laboratory use.

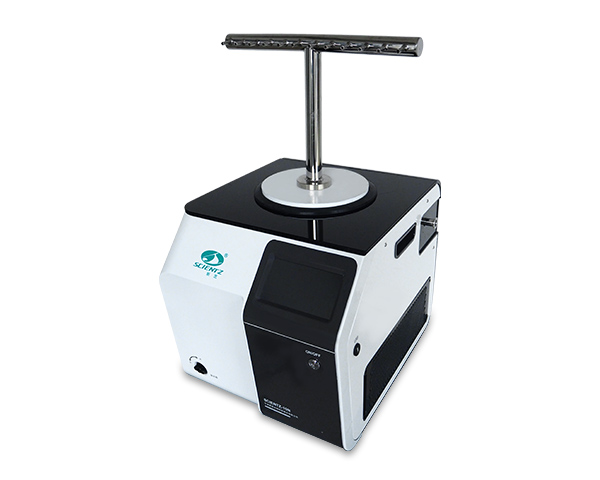

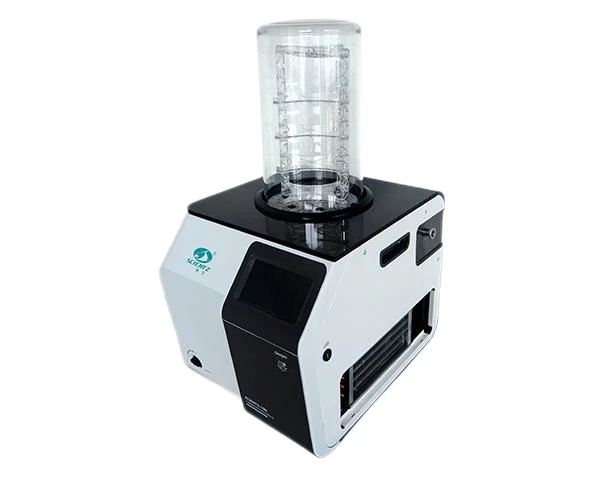

This series of freeze dryer is divided into four conﬁgurations: ordinary type, top press type, Ordinary multi-pipeline type, Top press multi-pipeline, with pre-freeze function.

Model		SCIENTZ-10N				SCIENTZ-12N				SCIENTZ-18N
Type		Ordinary	Top press	Ordinary multi- pipeline	Top-press multi- pipeline	Ordinary	Top press	Ordinary multi- pipeline	Top-press multi- pipeline	Ordinary	Top press	Ordinary multi- pipeline	Top-press multi- pipeline
Dryer area( m2 )		0.12	0.08	0.12	0.08	0.12	0.08	0.12	0.08	0.18	0.09	0.18	0.09
Ability to capture water(Kg/batch)		3	3	3	3	4	4	4	4	6	6	6	6
Vials quantity	Φ12mm	920	560	920	560	920	560	920	560	1320	990	1320	990
	Φ16mm	480	285	480	285	480	285	480	285	698	349	698	349
	Φ22mm	260	165	260	165	260	165	260	165	360	184	360	184
Eggplant shaped ﬂask		0	0	8	8	0	0	8	8	0	0	8	8
Plate load capacity (L)		1.5	1	1.5	1	1.5	1	1.5	1	2	1	2	1
Plate size(mm)		Φ200	Φ180	Φ200	Φ180	Φ200	Φ180	Φ200	Φ180	Φ240	Φ200	Φ240	Φ200
Plate distance (mm)		70
Tray quantity（pc）		4	3	4	3	4	3	4	3	4	3	4	3
Cold chamber size(mm)		Φ250×150				Φ250×250				Φ300×405
Cold trap the lowest temperature(°C )		≤-56 (No load)
Ultimate vacuum(Pa)		≤5 (No load)
Power Kw(220V50Hz)		0.95				1				1.3
Amibient temperature(°C )		≤25
Overall dimension（mm）		590(L)×460(W)×450(H)+440				600(L)×450(W)×720(H)+440				670(L)×525(W)×910(H)+480
Special note		The device size and weight not included in the external vacuum pump Top press model height not included in manual gland handle (The handle height 701mm)
