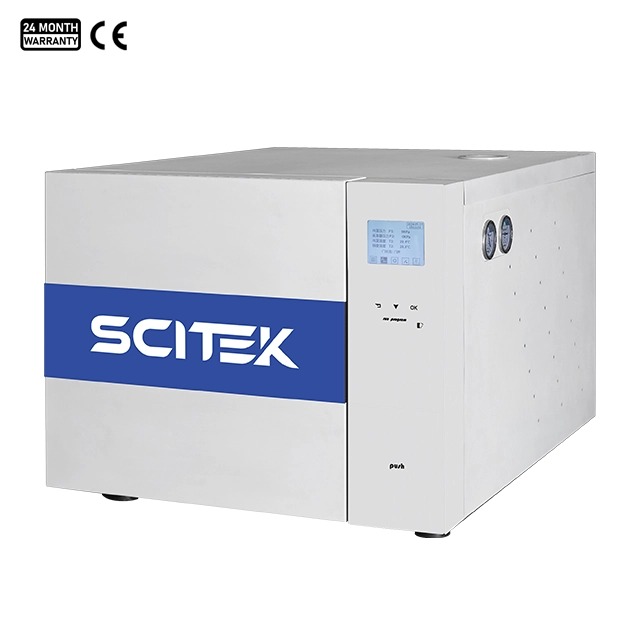

Horizontal Pressure Steam Autoclave
Horizontal Pressure Steam Autoclave
Place of Origin:
China
Brand:
SCITEK
Model:
https://www.scitekglobal.com/
Price:
info@scitekglobal.com
Hits:
29
Updated:
4/1/2025
  • Product Detail
  • Company Profile
    Designed for rapid heating and complete drying, this horizontal pressure steam autoclave meets the ever-changing demands of laboratory sterilisation.


    Horizontal Pressure Steam Autoclave Features:

    1. Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.

    2. Electric interlock safety: Preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized or the power is disconnected.

    3. Door-temperature interlock safety: Preventing from explosion of liquids if the liquids temperature is not cooled down the safe limit (20℃ lower than the local boiling point).

    4. Anti-burning protection: Automatically cutting off heating with audible and visual alarming when the autoclave is lack of water.

    5. Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.

    6. Electrical circuit safety device for over-current and shortcut protection.

    7. Automatic operation of sterilization (heating, sterilization, steam discharge and drying) can be easily set and monitored by the LCD touch screen.

    8. Built-in steam generator prevents the media from contamination.

    9. Buzzer for working errors and the end of the cycle.

    10. Automatic atmospheric pressure adjustment for the installation and operation in plateau areas.

    11. Optional printer, real-time record sterilization process, error and alarm information.

    Horizontal Pressure Steam Autoclave Specifications:

    Model ST-H60 ST-H80 ST-H100 ST-H135 ST-H150 ST-H185 ST-H200 ST-H300 ST-H450
    Capacity 60L 80L 100L 135L 150L 185L 200L 300L 450L

    External Size

    (WxDxH)(mm)

    985x600x1450

    985x600x1450

    1200x600x1450

    1000x710x1550

    1330x710x1550

    1250x710x1550

    1320x710x1550

    1350x900x1750

    1750x900x1750

    Chamber Size

    (ØxH)(mm)

    Ø386x500 Ø386x700 Ø386x950 Ø500x700 Ø500x780 Ø500x950 Ø500x1000 Ø650x950 Ø650x1360

    Chamber

    Material

    SUS304

    Sterilization

    Temperature

    105~136 ℃

    Designed

    Temperature

    150℃

    Max.Working

    Temperature

    136 ℃
    Temp.Accuracy 0.1℃
    Temp.Uniformity ≤±0.5℃

    Designed

    Pressure

    0.3Mpa

    Sterilization

    Pressure

    0.23Mpa
    Temp. Controller PID control by microprocessor
    Display LCD touch screen
    Drying Function YES
    Drying Time 15min

    Sterilization

    Program

    ●Dressings/Fabric program  ●Medical instrument program  ●Rubber program  ●Liquid program  ●DIY program

    Power

    Consumption

    5.7KW 5.7KW 6KW 9.35KW 9.35KW 10.8KW 10.8KW 12KW 20KW
    Power Supply 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz

    Standard

    Sterilization

    Shelf

    1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs

    Optional

    Accessories

    Printer
    Net Weight 105kg 120kg 140kg 225kg 240kg 255kg 265kg 350kg 450kg
    Gross Weight 165kg 185kg 210kg 315kg 340kg 365kg 380kg 470kg 570kg

    Shipping Size

    (WxDxH)(mm)

    1280x700x1600

    1280x700x1600

    1450x700x1600

    1300x850x1900

    1400x900x1900

    1440x930x2020

    1490x930x2020

    1650x1100x2120

    2100x1100x2120

    bio-equip.cn
    Scitek Global is professional manufacture of Laboratory Instruments and Medical Devices, certified by ISO9001, ISO13485 and ISO14001. Products are certified by ETL, CE and FDA etc.
