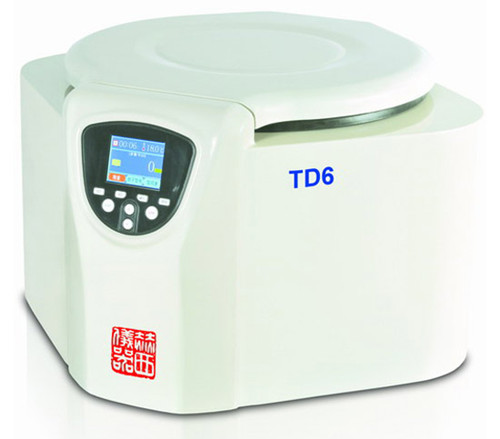

TD6 Bench top Multi-place-carrier centrifuge,HereXi_specification/price/image

Product Detail
Company Profile

Max Centrifugal force RCF: 4800
Max Speed(r/min): 6000
Max Capacity: 4*250ml
PIN: TD6
Brand: Herexi/OEM
Product unit: set
Weight: 35Kg

The centrifuge is widely applied in science and research units of biology,chemistry,radio-immunity,medicine,pharmacy,food and environmental protection,to make separation of biological products and blood sample.

Product Details

Micro-controller and high-torque brushless motor provide stable operation and low noise.

TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).

The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.

304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.

With mechatronic motor door lock.

Can store 20 sets of user-defined programs Can be customized according to demand).

Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, suitable for 0.2mL to 250mL centrifuge tubes or reagent bottles(TDZ6-WS only supports 100mL maximum) ; can centrifuge various MTP micro-plates, PCR plates, cell plates

With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.

Specification
Model	TD6
Max Speed（r/min）	6000
Max RCF（×g）	5140
Max Capacity	4×250 ml
Timer range	0-99h59min
Total Power	500w
Noise	≤65dB
Power	AC220V 50Hz
Weight	35kg
Dimension （L×W×H）	600×540× 360mm

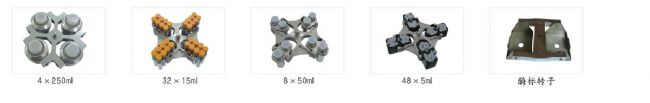

Model	Capacity	speed（r/min）	RCF(×g)
Angle rotor	12×10 ml	6000	5140
Swing bucket rotor	16×15 ml	5000	4620
	48*5ml(tube)	4000	2960
	48*5ml/2ml(vacuum tube)	4000	2960
	76*5ml/2ml(vacuum tube)	4000	3080
	24×10/15 ml	4000	2960
	32*15ml/10ml	4000	2960
	4×250 ml(round bottom)	4000	2780
Swing bucket rotor	4×50 ml	5000	4600
	8*50ml	4000	2960
	4×100 ml	5000	4800
Swing micro-plate rotor	2×2×96 hole	4000	2360
