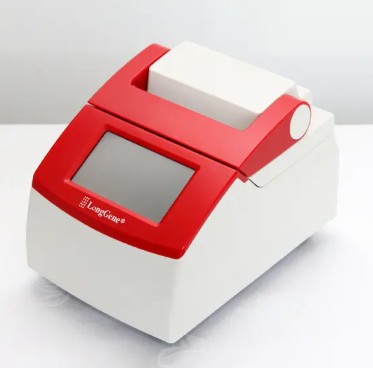

- Professional Mini Thermal Cycler
- Product Detail
- Company Profile
| Product Advantages |
| 1、Available in 16 and 32 wells sizes. |
| 2、Fast ramping rate,up to 5℃/S. |
| 3、Superior Temp.uniformity, guaranteeing the same PCR results with 96-wells cyclers. |
| 4、Core parts from famous supplier, quality life is guaranteed. |
| 5、 Lightweight ＆powerful. |
| Product Parameters | ||
| Model | Mini3210 | Mini3220 |
| Sample Block | 32 wells*0.2ml | 32 wells*0.2ml |
| Tube Type | Accommodates 0.2 ml tubes or strip of 8 tubes | |
| Heating＆Cooling Technology | New generation Peltier technology allow 1.000.000 cycles | |
| Display | 4.3"TFT color touch screen | |
| Language | English | |
| Communication Port | 1 USB port | |
| Venting System | Bottom air in ＆back air out, two thermal cyclers can be placed side by side | |
| TEMPERATURE | ||
| Block Temp.Range | 0.1℃－99.9℃ | |
| Max.Heating Rate | 3℃/S | 5℃/S |
| Max.Cooling Rate | 2℃/S | 4℃/S |
| Temp.Uniformity | ≤±0.25℃ | |
| Temp.Accuracy | ≤±0.25℃ | |
| Display Resolution | 0.1℃ | |
| Mode of Temp.Control | sim-tube＆ Block mode | |
| Ramping Rate Adjustable | 0.1－3℃/S | |
| Lid Open Method | New"TOP-OPEN" technology lift＆open with just one action | |
| SOFTWARE | ||
| Max.No.of Programs | ≥100 user protocols on board | |
| Time Increment/Decrement | 1-120 sec, available for Long PCR | |
| Temp.Increment/Decrement | 0. 1-9.9℃. available for Touchdown PCR | |
| Auto Pause/ Auto Restart | Yes | |
| Hold at 4℃ | A below ambient temerature incubation allow PCR products storage overnight | |
| Running Report | Provide detailed reports of previously run protocols | |
| OTHER FEATURES | ||
| Power | Global switch power supply: 100V-240V, 50-60Hz | |
| Power Consmption | 220W | |
| Approvals | ISO9001:2015,CE | |
| Dimension(LXWXH) | 232x182x157mm | |
-
Suzhou Alpha Biological Laboratory Equipment Co. , Ltd. was established in 2008, located in Suzhou Park Biological Nanometer Park (Biobay) a 5 building, room 301. The Management Team of the company is dedicated to the scientific instrument industry for 12 years.
With professional technical team and perfect after-sales service system, it has provided more than 300 laboratories with high-quality products and services, it covers 13 groups such as universities, medical institutions, testing centers, scientific research institutions and pharmaceutical enterprises.
Acting Laboratory equipment mainly includes vibration incubator, PCR instrument, Pipette, Bioreactor, fermentation tank, Pipette, ultra-low temperature refrigerator, medical refrigerator, liquid nitrogen tank, high-pressure sterilizer, ultra-pure water machine, balance, centrifuge, etc. . Manufacturers licensing including Chu Instruments, Langki, Zhongke Meiling, Mettler, Le Feng, Bo Lu, NEST, Tiangen, Aosheng and many other well-known brands. As well as providing excellent products, we also provide you with consumable reagents commonly used in biological laboratories, as well as services such as whole relocation of laboratories, third-party testing, metrology and calibration, second-hand instrument dispensing, etc. . The complete one-stop laboratory experience makes your choice more convenient, fast and flexible.
Alpha value-added services: free sample experience, free sample trial, free installation guidance, free technical guidance.
Alpha biology, help life science research! Let your experiment run smoothly without any worries!
