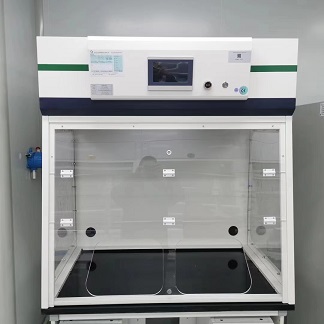

Intelligent Technology Environment Friendly Ductless Filtered Fume Hood with CE
Intelligent Technology Environment Friendly Ductless Filtered Fume Hood with CE
Place of Origin:
  • Product Detail
  • Company Profile

    Environment Friendly Filtered Ductless Fume Hood

    Product Introduction
    XC- D series ductless filtered fume hood is compliance with NFX15 211:2009(ANSI Z 9.5-201), ASHRAE 110:1995 standard and China national standard JG/T385:2012, certificated by ISO9001.
    Specially designed to protect the safety of laboratory personnel in the experiment operation, the product prevents operators from inhaling toxic, harmful, pathogenic or unknown toxic chemicals during the experiment, efficiently purifying the air in fume hood and laboratory, and providing safety protection for laboratory personnel.

    Intelligent Technology Cleaning Desinfecting Equipment Environment Friendly Ductless Filtered Fume Hood with CE

    Working Principles
    1. Air inlet
    Air can be pumped directly from the laboratory into the fume hood, creating negative pressure, and the steady face velocity forms a natural barrier to isolate users and the chemicals they operate with.

    2. Comprehensive filtration system
    The fan system will suck the toxic and harmful gases upwards, and return clean air to the room after filtration. The excellent control concentration of the cabinet can ensure that the chemical gas in the cabinet will not return to the room and cause pollution.

    3. Purify the laboratory air
    Different filters are configured according to different operations to effectively filter toxic and harmful gases, purify the laboratory air, remove chemical residue odor, and the level of laboratory cleanliness.

    4. Purify the surrounding air
    The continuous filtration efficiency of the fume hood can help to purify the indoor air.

    Intelligent Technology Cleaning Desinfecting Equipment Environment Friendly Ductless Filtered Fume Hood with CE

    Product Features
    1. Metal parts: the main material use ≥1.2mm galvanized steel sheet, epoxy resin electrostatic coating, covered with durable anti-chemical lead-free coating, maintaining high finish and minimizing the influence of corrosion and moisture.

    2. Front panel and side panel: the main material ≥6mm acrylic sheet, which has excellent weather resistance, excellent chemical resistance, not easy to aging, colorless and transparent, clear, visual comfort, beautiful and generous.

    3. Real-time temperature and humidity environment monitoring system, display temperature and humidity, set alarm parameters to ensure product safety.

    4. Fan monitoring: Fan system failure alarm, online adjustable fan speed, to ensure the air volume required for different chemicals’ operation.

    5. Filter saturation alarm system: The product is equipped with double-layer filters and dual VOC probes. One probe monitors indoor air quality and one probe monitors the filter saturation. The filter sets the saturation alarm value, it will alarm if out of the range, when the concentration exceeds the set value for a long time, the filter needs to be replaced.

    6. PSC fan imported from USA, 24 volts, stable performance, ultra-quiet, no sparks and static electricity.

    7. High-efficiency filtration system, select arrangement and distribution according to particle size, follow ASTM standard, effective for acid gas and organic gas, with strong adsorption capacity, adopt high-efficiency HEPA filter for particles, filter efficiency of 99.995% for particles larger than 0.3um.

    8. The LED lighting lamp power is equivalent to 25W fluorescent lamp, does not produce heat, safety does not affect the temperature of the experiment environment, energy saving, environmental protection, and long life.

    9. Epoxy resin countertops have superior chemical stability, super corrosion resistance, good impact resistance, no damage, excellent high temperature resistance, integrated core, long service life, no delamination, no expansion, no cracking.

    Software Control Part:
    1. 7-inch large screen display, IoT intelligent HMI man-machine interface, resolution: 1024x600, perfect vision system;
    2. Support SIM card 4G communication, 4G communication module has China Compulsory Certification (CCC)
    3. It has the function of managing the chemicals in operation, and can support not less than 100 chemicals list display, the list including serial number, chemical name, quantity, unit, etc.

    On the device side, operations such as adding, deleting, and modifying the list can be performed; the data is synchronized to the cloud back-end server; user can check the list of currently used chemicals via the WeChat client side.
    4. Remote management can be carried out through the WeChat client, and historical VOC data, temperature and humidity environmental data can be presented in a curved way; historical alarm records can be viewed, and fans, lighting, and alarm lights can be remotely controlled.
    5. API interface can be provided to support the docking function of third-party platforms.

    Technical Parameters

    Model Specifications Configuration Optional parts








    base cabinet is optional


    External (mm): 800*620*1245


    Filter(pc): 4

    Pre filter(pc): 2


    Light: led lamp x 1

    Display screen: 7-inch LCD touch screen

    Epoxy resin worktop(pc): 1

    Power cord(pc): 1

    Control system(unit): 1

    VOC Alarm system(Unit): 1

    Temperature&Humidity alarm system(unit): 1

    Remote monitoring system(unit): 1

    Base Cabinet (fixed cart or mobile cart)
    Internal (mm): 781*574*934 Stainless steel worktop
    Air Capacity(m³/h): 230 Anemometer
    Face velocity: 0.4-0.6m/s Alarm Model


    Voltage: 110V-240V

    Ammonia alarm

    Formaldehyde alarm

    HCL alarm

    Frequency: 50-60HZ Filter Model
    Power: 42W

    OG: Organic filter

    AG: Inorganic filter

    FO: Formaldehyde filter

    AM: Ammonia filter

    H14: HEPA filter

    Rated current: 2A
    Volume: 40-52 dB
    Operation hole: Trapezoid

    Because the Weight and Dimensionare big, generally the lab benches, fume hoods or lab cabinets will be shipped by Sea;

    They would be packed in cartons(FCL shipping) or plywood boxes(LCL shipping) in assembled or disassembled state.

    while Air shipping is available if you could accept the shipping cost.Intelligent Technology Cleaning Desinfecting Equipment Environment Friendly Ductless Filtered Fume Hood with CE

    biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.

    Company Profile

    Xuecheng Global Trader Co., Ltd is one professional industry and trade company for lab furniture and lab water purification system, integrating production, R&D, sales, installation and after-sale service, located in beautiful Olympic Sailing City- Qingdao, China.

    After years' development, we have grown into one diversified company, engaged in all kinds of lab furniture and lab equipment,  school furniture, medical furniture ajnd medical equipment, etc

    Intelligent Technology Cleaning Desinfecting Equipment Environment Friendly Ductless Filtered Fume Hood with CE

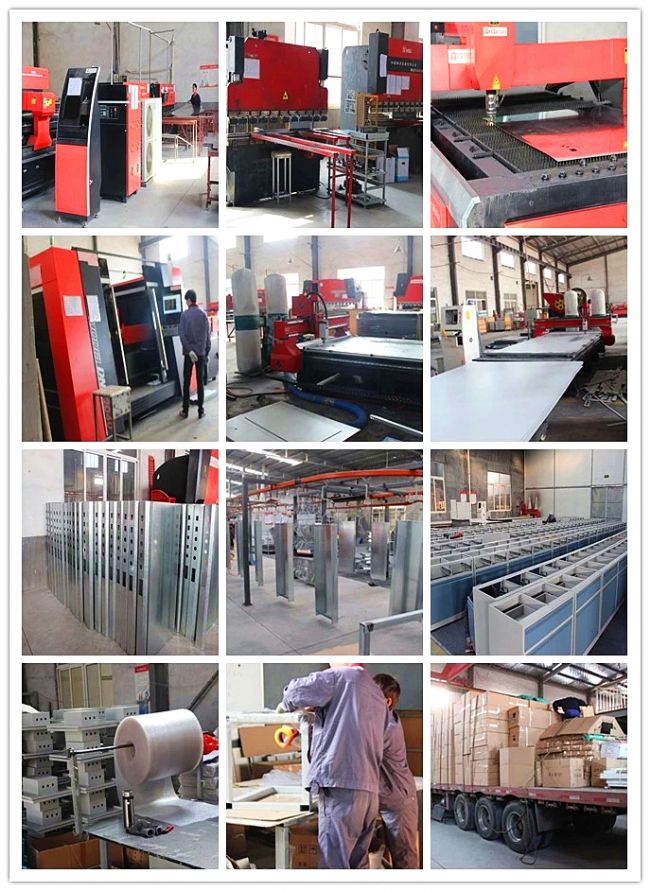

    - Workshop& Production Line



    Xuecheng Global Trader Co., Ltd/ Jimo(Qingdao) Xuechengli Furniture Ltd
    founded in 2010, located in beautiful Olympic sailing city- Qingdao, is one professional manufacturer for lab furniture, integrating production, R&D, sales, installation and after-sale service.

    Xuechenglab got SGS and CE certification, we have professional R&D, production team, excellent after-sales support and rich market development experience.

    After years' development, we have grown into one diversified business company, involved in laboratory furniture, laboratory equipment, medical equipment, and we can provide one-stop solutions to the users with laboratory ventilation system, laboratory air cleaning system, laboratory gas supply system, etc

    Our products are widely used in medicine, chemical industry, commodity inspection, quality inspection, environmental protection, food and beverage, electronics, universities, hospitals, scientific research institutions and other industries.

    We have successfully exported our products to approx 40 countries and regions, including Australia, New Zealand, USA, Canada, Africa, Latin America, Middle East and European Union.

    We have been committed to providing overall solutions for the laboratory and medical industry, and we are also striving to become the optimal partner to customers all over the world.

    Strive to do every detail well to provide high-quality products and services to you!
