High-Voltage Universal Power Supply,FAITHFUL_specification/price/image

High-Voltage Universal Power Supply

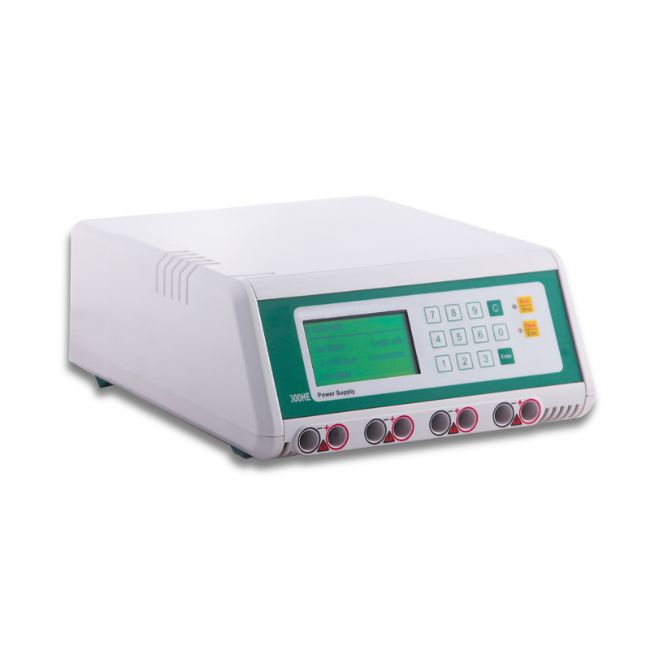

Product Image
Features

• Molding shell, touch keys, dual core microprocessor

intelligent control;

• 0-9 digital button, make the operation more simple and convenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Technical Parameteres

Model	FSF300E	FSF600E	FSF1000E
Type of Output	Constant-Voltage, Current or Power
Output Range	5--300V, 1--400mA, 1--120W	10--600V, 1--500mA, 1--300W	30--1000V, 1--500mA, 1--300W
Increment	1V, 1mA, 1W
Timer Range	1min~99hr, 59min
V-hr Range	1~99999V-hr/ Increment 1V-hr
Display	LCD display with backlight
Output jacks	Four sets of output jacks
