Universal Power Supply Electrophoresis Power Supply

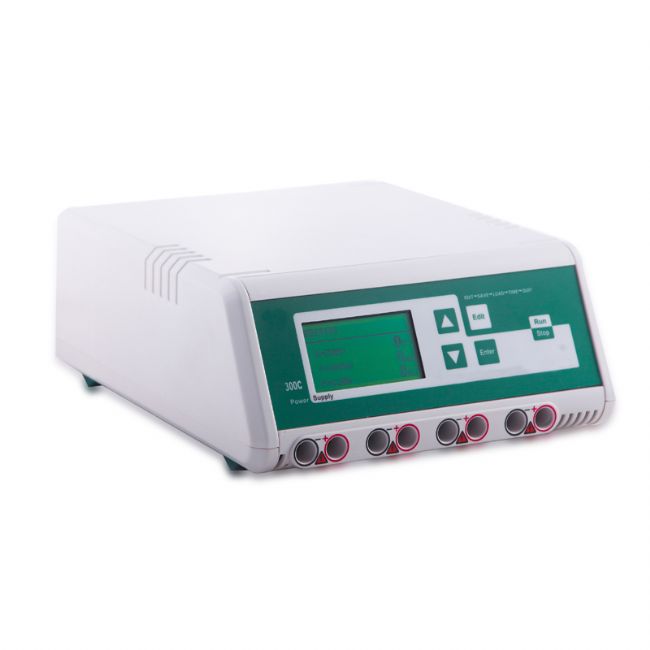

Product Image
Features

• Molding shell, touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

Technical Parameters

Model	FSF300C	FSF600C
Type of Output	Constant-Voltage, Current or Power	Constant-Voltage, Current or Power
Output Range	5--300V, 1--400mA, 1--120W	10--600V, 1--500mA, 1--300W
Increment	1V, 1mA, 1W	1V, 1mA, 1W
Timer Range	1min~99hr, 59min	1min~99hr, 59min
Display	LCD display with backlight	1min~99hr, 59min
Output jacks	Four sets of output jacks	Four sets of output jacks
