ClimMate Set-aw

Hand-held instrument with large sample chamber to measure larger sample quantities or even bulky samples. Can be used in raw material control or in production.

An inexpensive AW meter for:

very suitable as a first AW measurement indication
portable version thanks to the battery power supply
large sample quantities or pieces
only for dry samples, no liquid samples
no temperature control and no moisture equilibrium monitoring

Tech Specs

Meter Specifications	ClimMate Set-aw
Versions	N/A
Measurement Specifications	parameter
Measurement Specifications	Water activity	Temperature
Measuring principle	Electrolytic	NTC
Measuring range	0.03…1.00aw	0…50°C (32…122°F)
Adjustment range	0.11…0.90aw	N/A
Resolution	0.01aw	0.1°C
Accuracy	+/-0.02aw within calibration range	+/-0.15°C
Precision	+/-0.01aw within the adjustment range	+/-0.1°C
Repeatability	+/-0.01aw within calibration range	N/A
Temperature control	no temperature control and no moisture equilibrium detecation available
Adjustment point (%rH)	Only possible with nSoft-CAL: 11%, 33%, 53%, 75%, 90%
Mains connection	4 x 1.5 VDC Alkaline batteries or adapter 5 VDC
Power supply	90…264 VAC 50/60 Hz
Display	Capacitive TFT, 240 x 320px
Communication	USB for PC connection
Housing	> Plastic housing, Weight: 0.2kg > Dimensions (L x W x H) = 62 x 170 x 34mm
Measuring chamber volume	480mL
Dimensions sample cups	diameter 80mm x height 95mm
Protection class	IP54
21CFR 11	not compliant

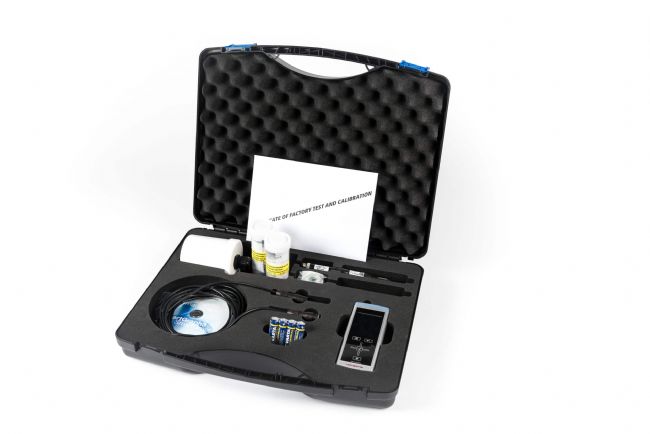

Scope of Supply

Multi-function measuring device ClimMate
USB connection cable 1.8m
nSens cable extension 2m
Sample beaker for large volumes
4x alkaline batteries LR6 AA 1,5V
nSens-HT-ENS sensor incl. nLink-UMB adapter
Humidity standards SAL-SC 33% & 75%rh
Adapter SAL-SC for nSens-HT probes
Factory test certificates and instructions
Transport case for instrument and sensor
SmartGraph III software
