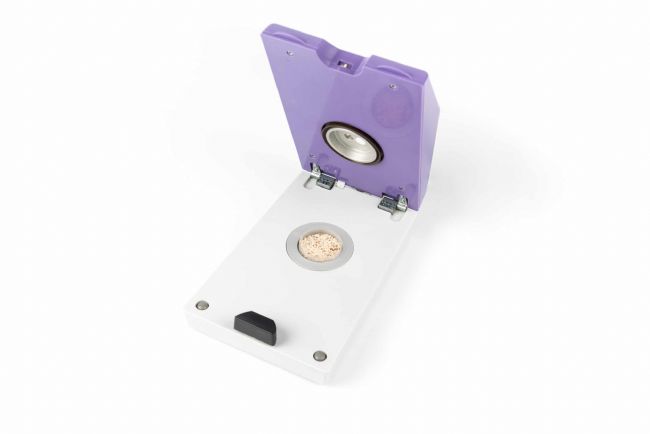

LabStart-aw

Inexpensive AW meter for measurements in the low to medium AW range, without already having high demands on accuracy and reproducibility.

Ideal for the first step:

test water activity measurement without having to spend a whole fortune on a measuring device
designed as a „starter“, proven Novasina technology can be found inside, especially the resistive electrolytic sensor
covers a lower demand on accuracy and reproducibility

Tech Specs

Meter Specifications	LabStart-aw
Versions	N/A
Measurement Specifications	parameter
Measurement Specifications	Water activity	Temperature
Measuring principle	Electrolytic	NTC
Measuring range	0.03…1.00aw	0…30°C (59…86°F)
Adjustment range	0.11…0.75aw	N/A
Resolution	0.01aw	0.1°C
Accuracy	+/-0.03aw within calibration range	+/-0.15°C
Precision	+/-0.01aw within the adjustment range	+/-0.1°C
Repeatability	+/-0.01aw within calibration range	N/A
Temperature control	no temperature control available
Adjustment point (%rH)	33%, 75%
Mains connection	5 VDC, +/-6%, max. Power consumption 10W
Power supply	90…264 VAC 50/60 Hz
Display	LC-display, dimensions: 35 x 69mm
Communication	N/A
Housing	> Two-part PC/ABS housing, weight: 1.2kg > Dimensions (L x W x H) = 225x140x85mm
Measuring chamber volume	15mL
Dimensions sample container	Diameter 30mm x height 14mm
Protection class	IP22
21CFR 11	not compliant

Scope of Supply

Measuring instrument LabStart-aw
Euro or US mains adapter
1 piece SAL-T 75% rH
20 Sample dishes ePW
Replacement pre-filter white (5 Stk.)
tension ring
Factory calibration certificate
