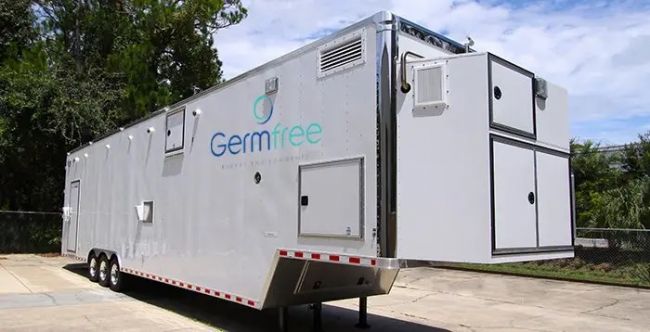

bioGO® BSL-3 Mobile Laboratory
Germfree’s bioGO® Mobile Biocontainment Laboratories offer the ideal solution for providing surge capacity for laboratory services during periods of emergency. By utilizing a fully equipped turnkey, Mobile Biocontainment Laboratory, facilities are able to rapidly increase their volume without sacrificing capabilities. Each mobile facility is engineered and constructed to meet or exceed the CDC NIH BMBL 5th Edition guidelines and the World Health Organization (WHO) guidelines for BSL-3 laboratories.
Applications:
Emergency Disease Surveillance
Temporary Laboratory Space during facility down time
Laboratory Swing Space
Any application where microbiological containment laboratory space is required
Six decades of Germfree manufacturing excellence has delivered a proven track record of deploying critical advanced laboratory capacity globally. Germfree mobile containment laboratories are designed by a team of biocontainment experts to provide the optimal safety for the handling of biologically contaminated materials.
This allows the facility to be effectively utilized for manipulating samples required to be handled in a containment laboratory environment. Germfree is the only manufacturer that provides a single-source, OEM solution for both the laboratory and all critical containment equipment. Germfree’s cutting-edge engineering teams and subject-matter experts are located at a 173,000ft2 US manufacturing plant. Germfree’s turnkey mobile units meet the most stringent biocontainment requirements and provide critical infrastructure for global health security.
Features

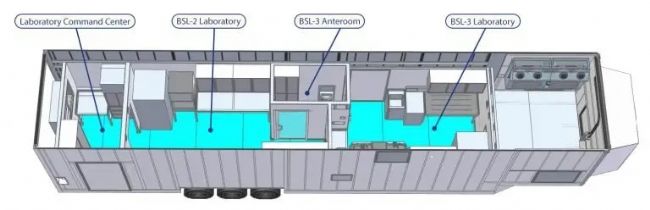

Layout
Trailer External Dimensions:
528” (13.4M) L x 101 3/4”(2.59M) W x 130” (3.3M) H
Laboratory Command Center
Internal Dimensions: 52” (1.32M) L x 95 1/4”(2.42M) W x 96” (2.44M) H
BSL-2 Laboratory (PCR PREP)
Internal Dimensions: 136” (3.45M) L x 95 1/4”(2.42M) W x 96” (2.44M) H
BSL-3 Anteroom/Shower Room Internal Dimensions:
67 5/8” (1.72M) L x 40” (1M) W x 96” (2.44M) H
BSL-3 Laboratory Internal Dimensions: 137 7/8” (3.5M) L x 95 1/4”(2.42M) W x 96” (2.44M) H
Germfree’s bioGO BSL-3 Mobile Biocontainment Laboratories are designed with 4 Distinct Spaces:
Laboratory Command Center:
The Laboratory Command Center serves as the main entrance to the Mobile Biocontainment Laboratory and the main entrance door is equipped with the proper security for your application.
BSL-2 Laboratory:
This BSL-2 Laboratory area exceeds BMBL 5th edition Laboratory Facility guidelines for BSL-2 as well as World Health Organization (WHO) guidelines for BSL-3 laboratories. The room air is both supplied and externally exhausted through HEPA filters.
The room is equipped with two (2) Class II, Type A Biological Safety Cabinets to protect the product and personnel.
Ample storage space is provided by the custom casework as well as an integrated refrigerator and freezer. All casework is stainless steel with seamless welds, coved corners and radiused edges and is compatible with all standard gas and vapor decontamination systems.
A top-loading autoclave is provided for sterilization.
BSL-3 Laboratory:
This BSL-3 Laboratory area exceeds the CDC NIH BMBL guidelines and the World Health Organization (WHO) guidelines for BSL-3 laboratories. The room is supplied with HEPA filtered air and the return air is HEPA filtered before being exhausted out of the laboratory.
The room is equipped with a Class III Biological Safety Cabinet (Glovebox) for receiving unknown or extremely hazardous samples.
A stainless steel pass-through airlock chamber integrated to the glovebox has three interlocked doors that allow samples to be introduced from the outside environment directly to the Class III glovebox. On the outside of the laboratory, a door will open to expose the sample entry airlock. The three-door airlock also permits safe movement of items between the glovebox and the BSL-3 laboratory. (One door opens to the exterior of the lab, one into the glovebox, and one into the BSL-3 laboratory.)
The electromechanical interlock system controlled by a programmable logic controller (PLC) prevents more than one airlock door being open at any time. If any door is open, the other two will remain locked until the open door is closed. This prevents breach of containment, eliminating the risk of contaminating work spaces or the environment.
The airlock is maintained under negative pressure. The inlet air that purges the chamber is HEPA filtered. The exhaust air is HEPA filtered through the filtration system of the glovebox.
Ample storage space is provided by the custom casework as well as an integrated refrigerator and freezer. All casework is stainless steel with seamless welds, coved corners and radiused edges and is compatible with all standard gas and vapor decontamination systems.
A top-loading autoclave is provided for sterilization.
Equipment
MEP
Mechanical Specifications
A heating, ventilation and air conditioning (HVAC) system is installed in the bioGO facility. The HVAC system is engineered to maintain a comfortable working temperature and humidity, and provides an inward flow of air into the laboratories. In the BSL-3 Laboratory, the mechanical ventilation also prevents recirculation to spaces outside of the laboratory.
Electrical Specifications
bioGO Laboratories are designed to be powered from shore power and are equipped with an automatic transfer switch for integration to locally available generators to provide redundancy in case of power outages or fluctuations.
Plumbing Specifications
The Trailer Laboratory Plumbing System provides fresh water to the three sinks and shower from the onboard 80 gallon (303 liter) Fresh Water tank. The two laboratory sinks have individual point-of-use sump pumps which transfer the sink waste water directly to the onboard 90 gallon (341 liter) Gray Water Waste tank. The Shower drain & Shower Room sink have one point-of-use sump pump. The sump pump outlet ports are connected to the Gray water waste tank. The waste tank’s drain port is connected to the sanitary sewer to drain continuously or is closed to temporarily hold the waste water until it can be connected to a sanitary sewer line.
Why Germfree?
Germfree’s Quality Control Team employs a checklist based system during a rigorous trial period. All systems are thoroughly vetted and documented in real world conditions before the bioGO is allowed to leave our manufacturing facility.
Germfree’s commitment is to provide a complete, standalone facility with zero defects, ready and installed with complete confidence at our customer’s site.
Installation
Prior to delivery of the bioGO Mobile Facility, Germfree’s service department will work with you to determine what site work needs to be completed before installation can occur.
Pre-installation Consultation can include discussions about overall location of the unit and the surroundings, power supply, data cables and integration, fresh/waste water connections, laboratory exhaust discharge assessment, location grade assessment, and accessibility.
Options:
Germfree technicians will be on-site after delivery to assist with installation, setup, and to provide training on the startup and daily operation of the facility.
Cleaning & Bio-decontamination bioGO Mobile Facilities receive a thorough construction cleaning before they are deployed. Germfree has validated a bio-decontamination process that can be performed on location via vaporized / ionized hydrogen peroxide (VHP/IHP).
Documentation:
Each mobile laboratory is delivered with a full set of as built drawings and a factory acceptance test summary. Additional documentation, if necessary, can be requested from your project manager.
Commissioning and Qualification (C&Q):
Commissioning and qualification is performed consistent with current industry best practices.
A Commissioning & Qualification Master Plan (CQMP) is utilized to define the requirements and methodologies for the commissioning & qualification (C&Q) of the facility, utilities, systems, and automation within the scope of the build and qualification phase.
The overall C&Q approach will utilize industry standard risk-based methodology and leveraging activities. This plan will describe a systematic, efficient, and effective way of ensuring that systems and equipment function and operate according to intended use, without duplication of effort and testing.
Commissioning includes Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), Construction Q/A and Commissioning Test Plans. The Verification is the performance and documented evidence of testing completed within the commissioning process.
Qualification will be conducted for all direct impact system in scope.
Standards & Codes
Germfree’s bioGO Mobile Biocontainment Laboratories meet or exceed the CDC NIH BMBL guidelines and the World Health Organization (WHO) guidelines for BSL-3 laboratories.
Project Management:
A dedicated project manager will oversee all aspects of your laboratory purchase from order through delivery. In so doing, it is possible to guarantee a seamless transition into your bioGO Mobile Biocontainment Laboratory.
Applications:
Emergency Disease Surveillance
Temporary Laboratory Space during facility down time
Laboratory Swing Space
Any application where microbiological containment laboratory space is required
Six decades of Germfree manufacturing excellence has delivered a proven track record of deploying critical advanced laboratory capacity globally. Germfree mobile containment laboratories are designed by a team of biocontainment experts to provide the optimal safety for the handling of biologically contaminated materials.
This allows the facility to be effectively utilized for manipulating samples required to be handled in a containment laboratory environment. Germfree is the only manufacturer that provides a single-source, OEM solution for both the laboratory and all critical containment equipment. Germfree’s cutting-edge engineering teams and subject-matter experts are located at a 173,000ft2 US manufacturing plant. Germfree’s turnkey mobile units meet the most stringent biocontainment requirements and provide critical infrastructure for global health security.
Features
Interior Materials:
Walls and Ceiling - Seamless wall system
Panels come in 40 foot lengths to minimize wall seams corners permanently sealed with an epoxy compound specifically designed for this purpose.
The end result is a monolithic barrier that is durable and easily cleaned.
Flooring:
Finished floor will be a high performance, homogenous, welded seam sheet polyurethane floor.
Casework:
Type 304 Stainless Steel work casework
Purpose built, all welded construction with adjustable shelving.
Design Excellence:
Germfree’s Mobile Biocontainment Laboratories are designed to be exceptionally durable. To achieve this, only the highest grade, cleanroom-compatible materials are used in the facility’s construction.
The interior walls are constructed of a high performance composite that provides a seamless interior suitable for frequent wash-downs with sanitizing agents as well as gas bio-decontamination.
The floor is seamless vinyl, coved up the walls, and epoxy-sealed to the walls for ease of cleaning.
All work surfaces are seamless stainless steel with casework designed for gas and vapor phase decontamination. Surfaces are coved for easy spill cleanup and sanitization. Edges are rounded and polished to avoid snagging Personal Protective Equipment (PPE).
Trailer External Dimensions:
528” (13.4M) L x 101 3/4”(2.59M) W x 130” (3.3M) H
Laboratory Command Center
Internal Dimensions: 52” (1.32M) L x 95 1/4”(2.42M) W x 96” (2.44M) H
BSL-2 Laboratory (PCR PREP)
Internal Dimensions: 136” (3.45M) L x 95 1/4”(2.42M) W x 96” (2.44M) H
BSL-3 Anteroom/Shower Room Internal Dimensions:
67 5/8” (1.72M) L x 40” (1M) W x 96” (2.44M) H
BSL-3 Laboratory Internal Dimensions: 137 7/8” (3.5M) L x 95 1/4”(2.42M) W x 96” (2.44M) H
Germfree’s bioGO BSL-3 Mobile Biocontainment Laboratories are designed with 4 Distinct Spaces:
Laboratory Command Center:
The Laboratory Command Center serves as the main entrance to the Mobile Biocontainment Laboratory and the main entrance door is equipped with the proper security for your application.
BSL-2 Laboratory:
This BSL-2 Laboratory area exceeds BMBL 5th edition Laboratory Facility guidelines for BSL-2 as well as World Health Organization (WHO) guidelines for BSL-3 laboratories. The room air is both supplied and externally exhausted through HEPA filters.
The room is equipped with two (2) Class II, Type A Biological Safety Cabinets to protect the product and personnel.
Ample storage space is provided by the custom casework as well as an integrated refrigerator and freezer. All casework is stainless steel with seamless welds, coved corners and radiused edges and is compatible with all standard gas and vapor decontamination systems.
A top-loading autoclave is provided for sterilization.
BSL-3 Laboratory:
This BSL-3 Laboratory area exceeds the CDC NIH BMBL guidelines and the World Health Organization (WHO) guidelines for BSL-3 laboratories. The room is supplied with HEPA filtered air and the return air is HEPA filtered before being exhausted out of the laboratory.
The room is equipped with a Class III Biological Safety Cabinet (Glovebox) for receiving unknown or extremely hazardous samples.
A stainless steel pass-through airlock chamber integrated to the glovebox has three interlocked doors that allow samples to be introduced from the outside environment directly to the Class III glovebox. On the outside of the laboratory, a door will open to expose the sample entry airlock. The three-door airlock also permits safe movement of items between the glovebox and the BSL-3 laboratory. (One door opens to the exterior of the lab, one into the glovebox, and one into the BSL-3 laboratory.)
The electromechanical interlock system controlled by a programmable logic controller (PLC) prevents more than one airlock door being open at any time. If any door is open, the other two will remain locked until the open door is closed. This prevents breach of containment, eliminating the risk of contaminating work spaces or the environment.
The airlock is maintained under negative pressure. The inlet air that purges the chamber is HEPA filtered. The exhaust air is HEPA filtered through the filtration system of the glovebox.
Ample storage space is provided by the custom casework as well as an integrated refrigerator and freezer. All casework is stainless steel with seamless welds, coved corners and radiused edges and is compatible with all standard gas and vapor decontamination systems.
A top-loading autoclave is provided for sterilization.
Equipment
Germfree’s bioGO Mobile Biocontainment Laboratories are delivered fully-equipped and ready for on-site commissioning. The standard configuration consists of:
Laboratory Command Center
BSL-2 Laboratory
BSL-3 Laboratory
A stainless steel pass-through airlock chamber integrated to the glovebox has three interlocked doors that allow samples to be introduced from the outside environment directly to the Class III glovebox.
Controls, Communications & Recording Systems
Communication Ports
(12) Data ports are provided for network instruments, computer workstations and printers. Cables are run in shielded chases to a patch panel in the anteroom. Telephone port is provided in the Laboratory Command Center.
Also included:
Laboratory Command Center
BSL-2 Laboratory
BSL-3 Laboratory
A stainless steel pass-through airlock chamber integrated to the glovebox has three interlocked doors that allow samples to be introduced from the outside environment directly to the Class III glovebox.
Controls, Communications & Recording Systems
Communication Ports
(12) Data ports are provided for network instruments, computer workstations and printers. Cables are run in shielded chases to a patch panel in the anteroom. Telephone port is provided in the Laboratory Command Center.
Also included:
MEP
Mechanical Specifications
A heating, ventilation and air conditioning (HVAC) system is installed in the bioGO facility. The HVAC system is engineered to maintain a comfortable working temperature and humidity, and provides an inward flow of air into the laboratories. In the BSL-3 Laboratory, the mechanical ventilation also prevents recirculation to spaces outside of the laboratory.
Electrical Specifications
bioGO Laboratories are designed to be powered from shore power and are equipped with an automatic transfer switch for integration to locally available generators to provide redundancy in case of power outages or fluctuations.
Plumbing Specifications
The Trailer Laboratory Plumbing System provides fresh water to the three sinks and shower from the onboard 80 gallon (303 liter) Fresh Water tank. The two laboratory sinks have individual point-of-use sump pumps which transfer the sink waste water directly to the onboard 90 gallon (341 liter) Gray Water Waste tank. The Shower drain & Shower Room sink have one point-of-use sump pump. The sump pump outlet ports are connected to the Gray water waste tank. The waste tank’s drain port is connected to the sanitary sewer to drain continuously or is closed to temporarily hold the waste water until it can be connected to a sanitary sewer line.
Why Germfree?
Germfree’s Quality Control Team employs a checklist based system during a rigorous trial period. All systems are thoroughly vetted and documented in real world conditions before the bioGO is allowed to leave our manufacturing facility.
Germfree’s commitment is to provide a complete, standalone facility with zero defects, ready and installed with complete confidence at our customer’s site.
Installation
Prior to delivery of the bioGO Mobile Facility, Germfree’s service department will work with you to determine what site work needs to be completed before installation can occur.
Pre-installation Consultation can include discussions about overall location of the unit and the surroundings, power supply, data cables and integration, fresh/waste water connections, laboratory exhaust discharge assessment, location grade assessment, and accessibility.
Options:
Germfree technicians will be on-site after delivery to assist with installation, setup, and to provide training on the startup and daily operation of the facility.
Cleaning & Bio-decontamination bioGO Mobile Facilities receive a thorough construction cleaning before they are deployed. Germfree has validated a bio-decontamination process that can be performed on location via vaporized / ionized hydrogen peroxide (VHP/IHP).
Documentation:
Each mobile laboratory is delivered with a full set of as built drawings and a factory acceptance test summary. Additional documentation, if necessary, can be requested from your project manager.
Commissioning and Qualification (C&Q):
Commissioning and qualification is performed consistent with current industry best practices.
A Commissioning & Qualification Master Plan (CQMP) is utilized to define the requirements and methodologies for the commissioning & qualification (C&Q) of the facility, utilities, systems, and automation within the scope of the build and qualification phase.
The overall C&Q approach will utilize industry standard risk-based methodology and leveraging activities. This plan will describe a systematic, efficient, and effective way of ensuring that systems and equipment function and operate according to intended use, without duplication of effort and testing.
Commissioning includes Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), Construction Q/A and Commissioning Test Plans. The Verification is the performance and documented evidence of testing completed within the commissioning process.
Qualification will be conducted for all direct impact system in scope.
Standards & Codes
Germfree’s bioGO Mobile Biocontainment Laboratories meet or exceed the CDC NIH BMBL guidelines and the World Health Organization (WHO) guidelines for BSL-3 laboratories.
Project Management:
A dedicated project manager will oversee all aspects of your laboratory purchase from order through delivery. In so doing, it is possible to guarantee a seamless transition into your bioGO Mobile Biocontainment Laboratory.
-
