Cleanroom Pass-through Boxes

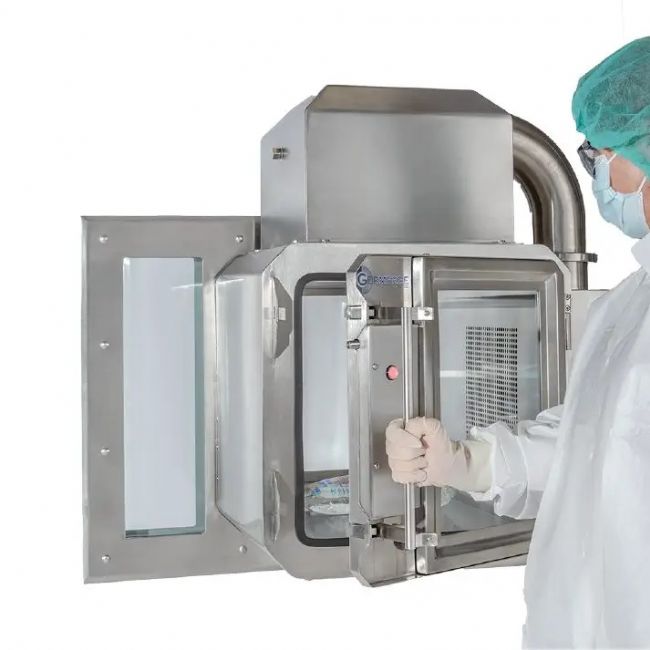

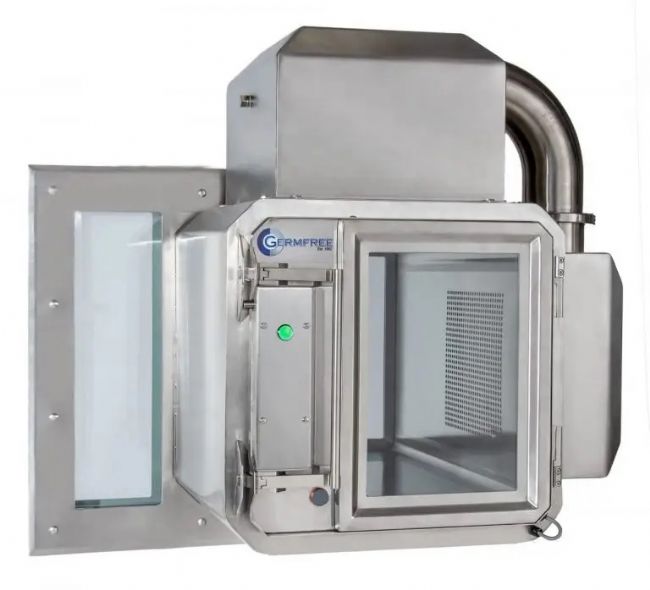

Pass-Through Chambers for the Modern Pharmaceutical Cleanroom
Germfree has leveraged our decades of facility design experience to develop a pass-through (airlock) that is uniquely engineered to meet the demands of a modern pharmaceutical cleanroom. All stainless steel construction with coved interior and exterior corners and a pharmaceutical grade finish make these pass-through boxes the most cleanable and robust on the market.

Dimensions

Model	Static / HEPA Purge	Interior Dimensions	Wall Opening Dimensions
PTAS-1616	Static	16”H x 16”W x 24”D	24.25”H x 31.375”W
PTAS-2416	Static	24”H x 16”W x 24”D	32.25”H x 31.375”W
PTAS-2424	Static	24”H x 24”W x 24”D	32.25”H x 39.375”W
PTAH-1616	HEPA Purge	16”H x 16”W x 24”D	24.25”H x 31.375”W
PTAH-2416	HEPA Purge	24”H x 16”W x 24”D	32.25”H x 31.375”W
PTAH-2424	HEPA Purge	24”H x 24”W x 24”D	32.25”H x 39.375”W

Features/Specifications

HEPA Purge and Static Pass-Through models available
All stainless steel construction
- Fabricated from the most robust materials, Germfree’s cleanroom pass-through boxes are designed to withstand the repeated use and daily cleaning required by a cleanroom facility
Coved interior and exterior corners
- These units are designed to be highly cleanable, both inside and out
Gas-tight Construction
Supply and Exhaust HEPA Filters
HEPA Purge
- HEPA Purge Models Only – When materials are placed within the pass-through box and the doors are closed, a HEPA-purge cycle is initiated which rapidly exhausts and filters the interior air until it has reached ISO Class 7
Mechanical interlocks
- This system prevents both doors from ever being opened simultaneously
- HEPA Purge Models Only – The receiving side door will remain locked for the duration of the purge cycle
Windows
- Tempered glass viewing windows allow a clear line of site both within the pass-through box and between rooms
Voltage Options
- System requires 110V, 60Hz, 20-amp hard-wired power connection (230V, 50Hz system available)
- Optional wall plug

Application
For use in hospital and pharmaceutical cleanrooms to maintain control of particulates as materials are passed from one room to another. Pass-through boxes reduce traffic within the cleanroom while expediting the transfer of product, supplies and equipment. These units are designed to fit seamlessly into both new and existing cleanroom facilities.

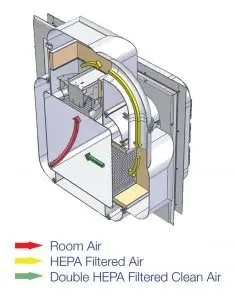

Airflow
