* Using wireless data transmission technology, the distance is no longer limited by the traverse point;
* Using visual data processing, simple, convenient and fast;
* High precision sensor, high precision, wide range;
* Long life, can work more than 100 hours;
* Small size, light weight, easy to carry;
* The masterstation server is powerful, leaving the computer (upper computer) can also be used;
* Data, information freely exported, can be exported to any format of the Excel file;
* Multi-procedure support, applicable to different types of equipment temperature field testing;
* The number of channels, support 80 channels online at the same time, up to 250;
Home >Products> Other Lab Equipments >Environmental Monitors> Manufacturer supply zigbee wireless temperature and humidity field measurement device
Other Lab Equipments:
Drug Tests / Pharmaceutics
Environmental Monitors
Food & Beverage
Radioactivity / Luminescence
Miscellaneous
- Manufacturer supply zigbee wireless temperature and humidity field measurement device
- Product Detail
- Company Profile
Product Overview

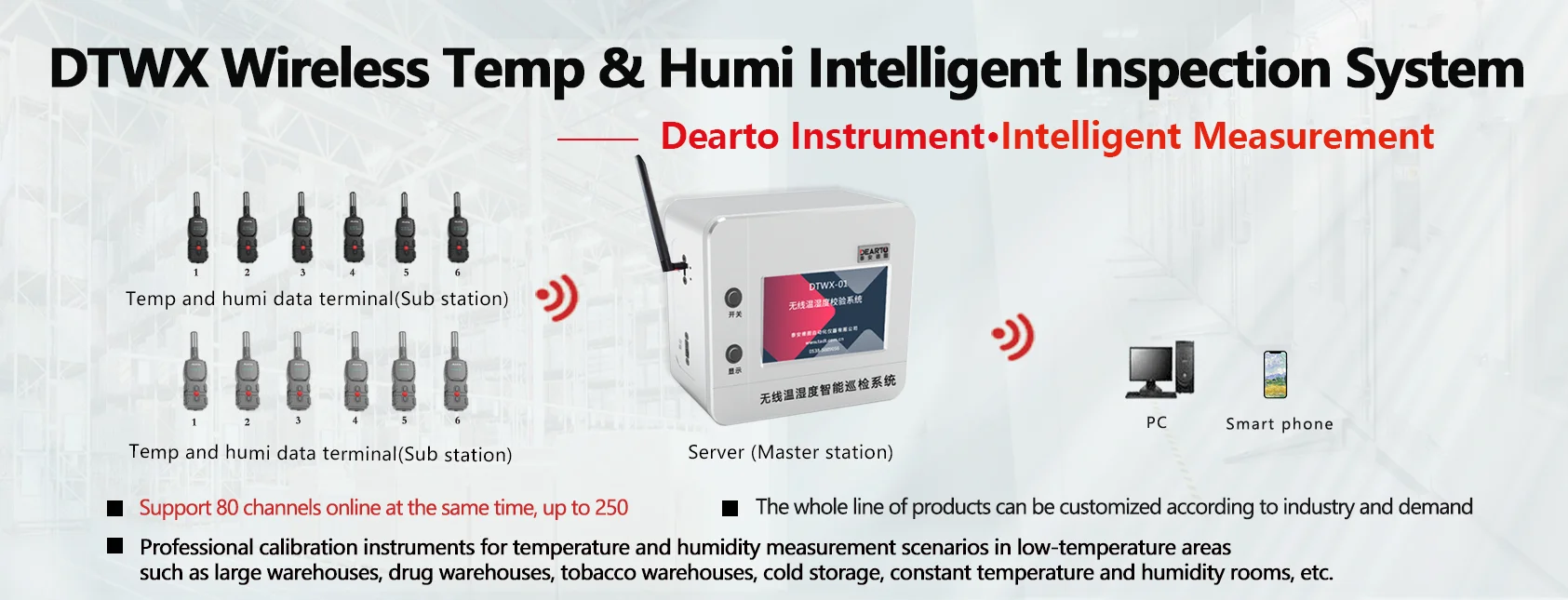

DTWX-01G wireless temperature and humidity intelligent inspection system (hereinafter referred to as DTWX-01G) is one of our high-end products" temperature and humidity intelligent inspection system "series of products, is aimed at the low temperature section temperature and humidity measurement record scene which is not easy to use wired equipment, can be used in large storage grain depot, tobacco warehouse, cold storage, ammunition depot, equipment room and other large areas with restrictions on temperature and humidity conditions.
Product characteristics
Functional characteristics

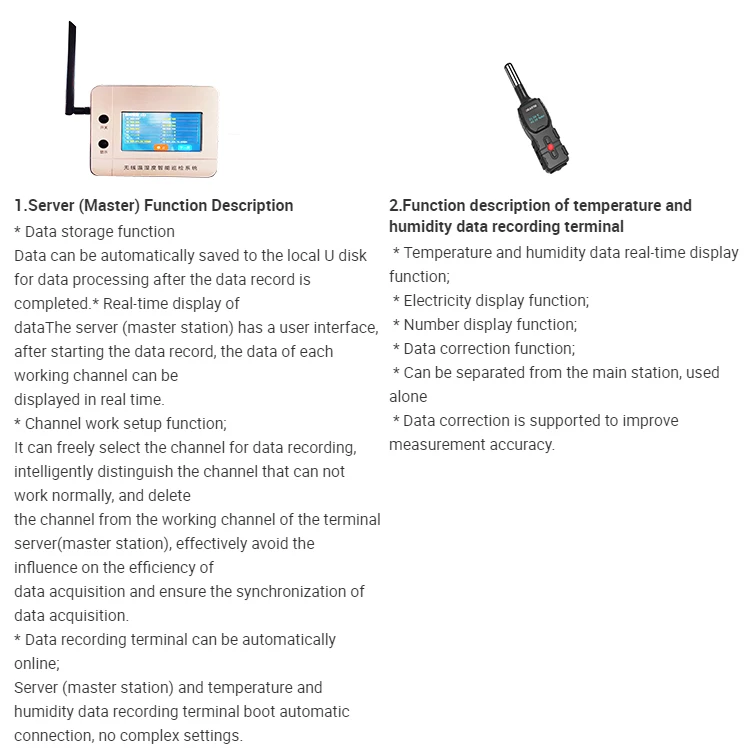

3.Function Description of System Software
* Terminal server(master station) data import function;
The data recorded by the terminal server(master station) without software can be imported into the software and processed.
* Data Curve Display Function
* Data processing function
Visual data processing, through the data curve can quickly select the best test data.The selected data is automatically calculated and processed and saved as an internal data record.
* Support multiple protocols;
The software supports the data processing of the JJF1101-2019 Environmental Test Equipment Temperature and Humidity Calibration Specification and the JJF1564-2016 Temperature and Humidity Standard Box Calibration Specification.
* Real-time data transmission function
The software can establish a connection with the terminal server to realize real-time data upload and processing.
* Historical Data Save, Manage, View
The software automatically saves the data imported from the terminal server(master station) and the data uploaded in real time,saves the data processing result, and can open the view again, supports the name retrieval.
* Information management function
Software support sensor, sample, client, testing party and other information management, for the software does not have information can be automatically added. All information can be exported to the Excel file.
* Real-time display function
When online with the terminal server(master station) , the software displays the real-time data of each channel.
* Real-time calculation of fluctuation and uniformity
When online with the terminal server(master station) , the software calculates the fluctuation and uniformity of the temperature field in real time.
* Marking function of highest point and lowest point
When online with the terminal server(master station), the software automatically marks the highest and lowest channels.
* Data viewing function
In data processing, you can view the data.
* Data correction function
The software supports temporary data correction.
* Low Power Indicator Function
When the power of the data recording terminal is insufficient, the software prompts that the data recording terminal should be charged.
* Multiple samples tested simultaneously
The terminal server(master station)can simultaneously online 80 data recording terminals, put the data recording terminals in different temperature fields, and realize the simultaneous testing of multiple samples by creating multiple test items on the software.
The data recorded by the terminal server(master station) without software can be imported into the software and processed.
* Data Curve Display Function
* Data processing function
Visual data processing, through the data curve can quickly select the best test data.The selected data is automatically calculated and processed and saved as an internal data record.
* Support multiple protocols;
The software supports the data processing of the JJF1101-2019 Environmental Test Equipment Temperature and Humidity Calibration Specification and the JJF1564-2016 Temperature and Humidity Standard Box Calibration Specification.
* Real-time data transmission function
The software can establish a connection with the terminal server to realize real-time data upload and processing.
* Historical Data Save, Manage, View
The software automatically saves the data imported from the terminal server(master station) and the data uploaded in real time,saves the data processing result, and can open the view again, supports the name retrieval.
* Information management function
Software support sensor, sample, client, testing party and other information management, for the software does not have information can be automatically added. All information can be exported to the Excel file.

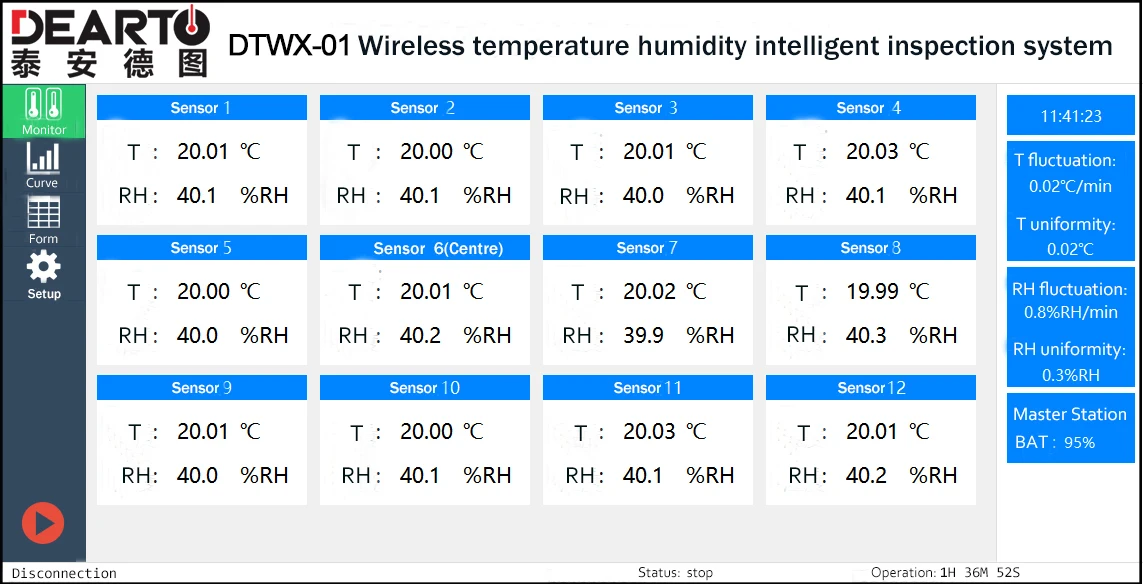

* Real-time display function
When online with the terminal server(master station) , the software displays the real-time data of each channel.
* Real-time calculation of fluctuation and uniformity
When online with the terminal server(master station) , the software calculates the fluctuation and uniformity of the temperature field in real time.
* Marking function of highest point and lowest point
When online with the terminal server(master station), the software automatically marks the highest and lowest channels.
* Data viewing function
In data processing, you can view the data.
* Data correction function
The software supports temporary data correction.
* Low Power Indicator Function
When the power of the data recording terminal is insufficient, the software prompts that the data recording terminal should be charged.
* Multiple samples tested simultaneously
The terminal server(master station)can simultaneously online 80 data recording terminals, put the data recording terminals in different temperature fields, and realize the simultaneous testing of multiple samples by creating multiple test items on the software.
Product Paramenters
|
Model
|
DTWX-01G
|
|||
|
The terminal server(master station)
|
||||
|
Size
|
About 150mm(L)×106mm(W)×70mm(H)
|
|||
|
Weight
|
About 250g
|
|||
|
Continuous voyage
|
External power supply, USB power supply
|
|||
|
Data storage
|
Usb flash drive or memory card
|
|||
|
Data format
|
.csv
|
|||
|
Screen
|
3.4-inch hd color touch screen
|
|||
|
Connection mode
|
With data recording terminal: wireless, with upper computer: USB
|
|||
|
Maximum number of channels
|
80（can be expanded to 250）
|
|||
|
Operating environment
|
Conventional environment
|
|||
|
System
|
Embedded real-time system with user interface
|
|||
|
Wireless temperature and humidity data recording terminal
|
||||
|
Sensor type
|
High precision temperature and humidity integrated sensor
|
High precision temperature sensor
|
||
|
Model
|
W-RH2
|
W-RH3
|
W-PT1
|
W-PT2
|
|
Measuring span
|
（-40~65）℃
（0~100）%RH(The temperature range is customizable) |
-(40~65）℃
（The temperature range is customizable) |
||
|
Accuracy（@5℃、20℃、50℃）
|
±0.1℃
±1.5%RH |
±0.15℃
±2.0%RH |
±0.1℃
|
±0.15℃
|
|
Display resolution
|
0.01℃ 0.01%RH
|
0.01℃
|
||
|
Size
|
46mm(L)×31mm(W)×106mm(H)
|
|||
|
Weight
|
About 120g（Battery included）
|
|||
|
Connection type
|
Wireless connections
|
|||
|
Transmission distance
|
≥100m（uncovered）
|
|||
|
Sample interval
|
1s~1200s（adjustable）
|
|||
|
Protection grade
|
IP65（Dustproof and splash proof）
|
|||
|
Screen
|
1.1-inch display
|
|||
|
Continuous voyage
|
Built-in high-density battery, continuous operation ≥100 hours
|
|||
|
Charging time
|
≤ 3 hours (charging time of different chargers is different)
|
|||
|
Operating environment
|
（-40~85）℃
|
|||
|
Systems software
|
||||
|
Applicable platform
|
Windows（32 bits and 64 bits）：Win7，Win8（8.1），Win10
|
|||
|
Service
|
Software upgrading
|
|||
-
Tai’an Detu Automation Instrument Co.,Ltd is a temperature and humidity precision calibration instrument professional manufacturer,with strong research and development strength and professional technical team,as well as multiple patents and software copyrights.
