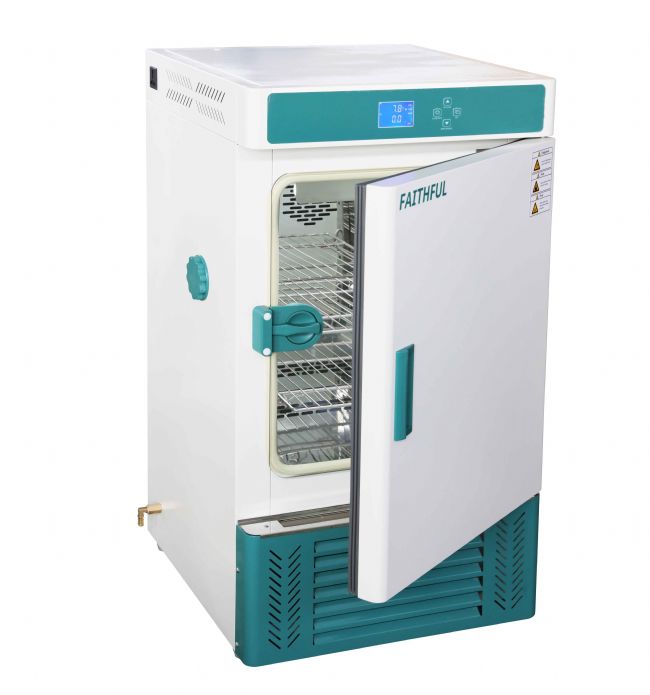

Cooling Incubator/Refrigerated Incubator/ BOD Incubator

Product Description

1. Stainless steel inner chamber; foursquare semicircle transition, convenient to clean; space between shelves is adjustable.
2. Micro-computer control system; LCD with functions of time setting, parameter memorizing and power reset recovering.
3. Fluoride- -free refrigeration and gentle breeze circulation.
4. Test hole of C 52mm at left side of container.
5. Double door seal; tempered glass silicon rubber seal inner door and magnetic rubber seal outer door, which are convenient to on/off; inner chamber with light for convenient observation.

Technical Parameters

Model		SPX-70BIII	SPX-150BIII	SPX-250BIII
		SPX-70BX	SPX-150BX	SPX-250BX
Cycle Mode		Forced convection
Function	Temp. range	0～65℃
	Temp. Resolution Ratio	0.1℃
	Temp. Motion	High Temp.：±0.5℃ Low Temp.：±1℃
	Temp. Uniformity	±1.5℃
Structure	Inner Chamber	Mirror Sainless Steel
	Outer Shell	Cold rolling steel electrostatic spraying exterior
	Insulation layer	Polyurethane
	Heater	Stainless steel heater
	Power rating	0.8kW	1.0kW	1.2kW
	Compressor	Air cooled hermetic compressor
	Cryogen	R134a
	Defrost structure	Automatic control intelligent defrosting
	Test hole	Inner diameter 43mm(one)
	Controlled external power supply	Outer universal socket(one),nner waterproof socket(one)
	Temp. Control Mode	BII model:single- stage LCD Inelligent PID: BX model:30- -stage LCD program
	Temp. Setting Mode	Touch button setting
	Temp. Display Mode	Measuring temperature:LCD upper row; Setting temperature:LCD lower row
	Timer	BIII model:0- -99.9h BX model:0- 99.9h*30 segment(with timning wait function)
	Operation function	BIII model：Fixed value operation、timing function,auto stop.
		BX model:Program operation
	Sensor	PT100
	Additional funciton	BIII model：LED light, Deviation correction, Menu key lock, Power failure parameter memory
		BX model:Loop self diagnosis,sensor fault alarm
Safety device		Over temperature alarm
Specification	Inner Chamber size(WLH)(mm)	415350500	490400750	500500950
	Exterior size (WLH)(mm)	5715911051	6466411301	6567411501
	Packing size (WLH)(mm)	6866901211	7617401461	7718401661
	Volume	70L	150L	250L
	Load per rack	15kg
	Shelf number	9	12	18
	Shelf space	35mm
	Power Supply Current rating	AC220V/2.3A	AC220V/3.6A	AC220V/5.5A
	NW/GW (kg）	69/92	86/114	100/139
Accessory	Shelf	2
	Shelf Frame	4
optional accessories		shelf. RS485 port. printer. recorder. Remote Control. wireless messaging alarm. U-Disk data storage
