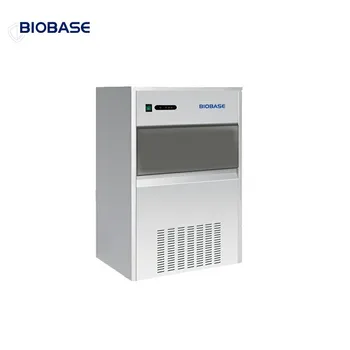

BIOBASE Flake Ice Maker for Lab
BIOBASE Flake Ice Maker for Lab
Place of Origin:
China
Brand:
BIOBASE Make Trading Co.,Ltd
Model:
FIM20
Price:
475-511 USD
Hits:
470
Updated:
10/9/2021
  • Product Detail
  • Company Profile


    1. High-quality stainless steel is used for their shells, they are anti-corrosive and durable, and the all-in-one independent structure makes them simple and compact and space-saving.
    2. Their boxes are protected with fluorine-free foam thermal cover featuring good insulation effect. Their internal bladders are of fluorine-free bacterial inhibitory-type. They are both energy-saving and environmental friendly.
    3. High quality and efficient use of fluorine-free R134a compressors, parts and components have passed relevant safety certifications, and they are safe and reliable.
    4. The ice-making process is fully computer controlled, using imported computer chips to make control reliable and operation steady.
    5. The use of Italian Haitec two-stage reducer and Korean GGM motor makes noise reduced, operation smooth and reliable. Cooling holes and blower fans are deployed on top of ice makers to ensure that the motor of reducer can operate reliably even under harsh conditions at high temperature.
    6. The use of the patented technology,line of chip ice-making chamber separated from the evaporator makes high cooling efficiency and large ice-making capacity.
    7. The screw extrusion hob-style ice-making type makes a compact structure, realizing ice and water automatic separation. The optimal design of skate blade makes the shape of ice small and applicable.
    8. The unique float-type water tank water inflow system ensures that there is no residual water, no ice clearance process, no water wasting, and makes them water and energy saving.
    9. They have ice full display, water deficiency display, overcooling protection display and malfunction warning display, etc. for shutdown protection. The stop automatically in case of ice full or water deficiency and start automatically when power or water supply is resumed. They have automatic reminiscence function.
    10. The ice made is small shaped, amorphous granular flake chipped ice, which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect. It is specially designed for laboratories.
    11. There are power switch and function indicators deployed in the front with detailed instructions. It is intuitive and easy to use. Various safety performance indicators have passed electrical tests, they are safe and reliable.
    12. Flake shaped ice is widely used in hospitals, schools, laboratories, research institutes and so on, as well as for food preservation in supermarkets, fishing refrigeration, medical applications, chemical, food processing and other industries. It has wide range of applications.

    Technical Parameters

    Item No.

    FIM

    20

    FIM

    30

    FIM

    40

    FIM

    50

    FIM

    60

    FIM

    70

    FIM

    85

    FIM

    100

    FIM

    120

    FIM

    150

    FIM

    200

    FIM

    250

    Ice making

    capacity(kg/24h)

    20

    30

    40

    50

    60

    70

    85

    100

    120

    150

    200

    250

    Ice storage

    capacity(kg)

    10

    15

    25

    40

    60

    Ice shape

    Small particals of irregular snow ice

    Input current(w)

    280

    300

    360

    380

    420

    460

    480

    520

    550

    680

    1040

    1100

    Way of condensation

     Air cooling

    Way of influent

    Automatic water tap

    Tank shell

    Stainless steel

    Compressor / refrigerant

    Imports of CFC-free/134a

    Net weight(kg)

    32

    38

    40

    40

    45

    57

    57

    62

    62

    62

    92

    92

    Overalldimension

    (L*W*H)mm

    330*470*605

    400*543*720

    400*510*875

    500*611*940

    680*611*1100

    Applicable area

    Various types of experiments, supermarkets, hotels and other seafood products stores etc.
