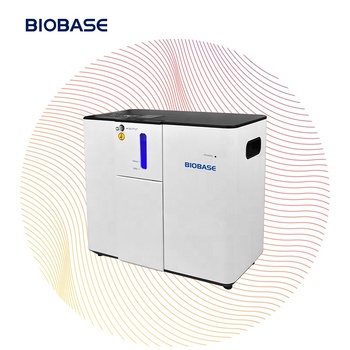

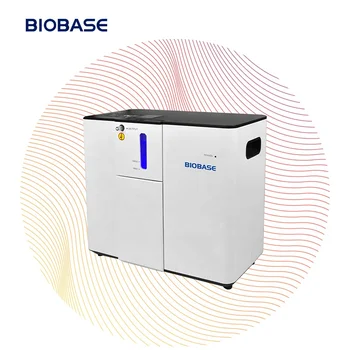

- BIOBASE Oxygen Generator Oxygen Concentrator
- Product Detail
- Company Profile
Product Discription
Application:
Oxygen generators( concentrators) typically use pressure swing adsorption (PSA) technology and are widely used for oxygen provision in healthcare applications，especially where liquid or pressurized oxygen is too dangerous or inconvenient ，such as in homes or in portable clinics.
Oxygen generators( concentrators) are also used to provide an economical source of oxygen in industrial processes，where they are also known as oxygen gas generators or oxygen generat ion plants
Features:
*French imported molecule sieve,long life and more efficiency
*Adopts american PSA technology ,use Physical method to separate pure oxygen from air
*Brand-new design,Small size and nice looking,
*Compact structure design,light weight ,easy to move
*Advanced oil-free compressor,save 30% power energy.
*Big LCO Screen easy to operate.
*Oisplaying the oxygen concentration in real time.
*Optional nebuylizer and oxygen purity alarm function
*Power off alarm,abnormal voltage alarm
Technical Parameters
OTWD.png)
|
Model
|
OG-1000
|
OG-3000
|
OG-5000
|
|
Oxygen Flow(ml/min)
|
1000
|
1000~3000
|
1000~5000
|
|
Oxygen Concentration
|
≥93%±3%
|
||
|
Output Pressure(kPa)
|
30~70
|
||
|
Noise(dB(A))
|
≤43
|
≤46
|
≤56
|
|
Maximum Spray Rate(ml/min)
|
≥150
|
||
|
Input Consumption(VA)
|
≤230
|
≤330
|
|
|
Power Supply
|
AC110/220V±10%, 50/60Hz
|
||
|
Package Size(W*D*H)mm
|
442*265*405
|
560*395*700
|
|
|
Net/Gross Weight(kg)
|
9.5/10.5
|
27/28
|
|
-
BIOBASE Group is a professional manufacturer of laboratory and medical analytical products since 1999.
Our main products in IVD field mainly are Auto chemistry analyzer,Chemistry & Elisa reagents, Auto ELISA processor, Microplate reader&washer,Hematology analyzer.Electrolyte analyzer.Urine analyzer,Coagulation analyzer,.etc.
In Lab field mainly are Biological safety cabinet,Fume hood.Laminar flow cabinet,PCR cabinet,etc.
We have more than 3,500 employees and 100,000 square meters production base. The wide experience on the research and manufacturing Lab and Medical products has managed BIOBASE to be able to offer a large and competitive range of products with the highest quality.
Excellent R&D team of more than 80 researchers.
Experienced after-sales service engineers more than 100 persons.
18 years production experience and national standard factory workship.
Strong QC team to inspect all production stage, from the accessories to the finished products.
ISO9001, ISO13485, ISO14001, SGS, CE, RIQAS, FDA certificate.
